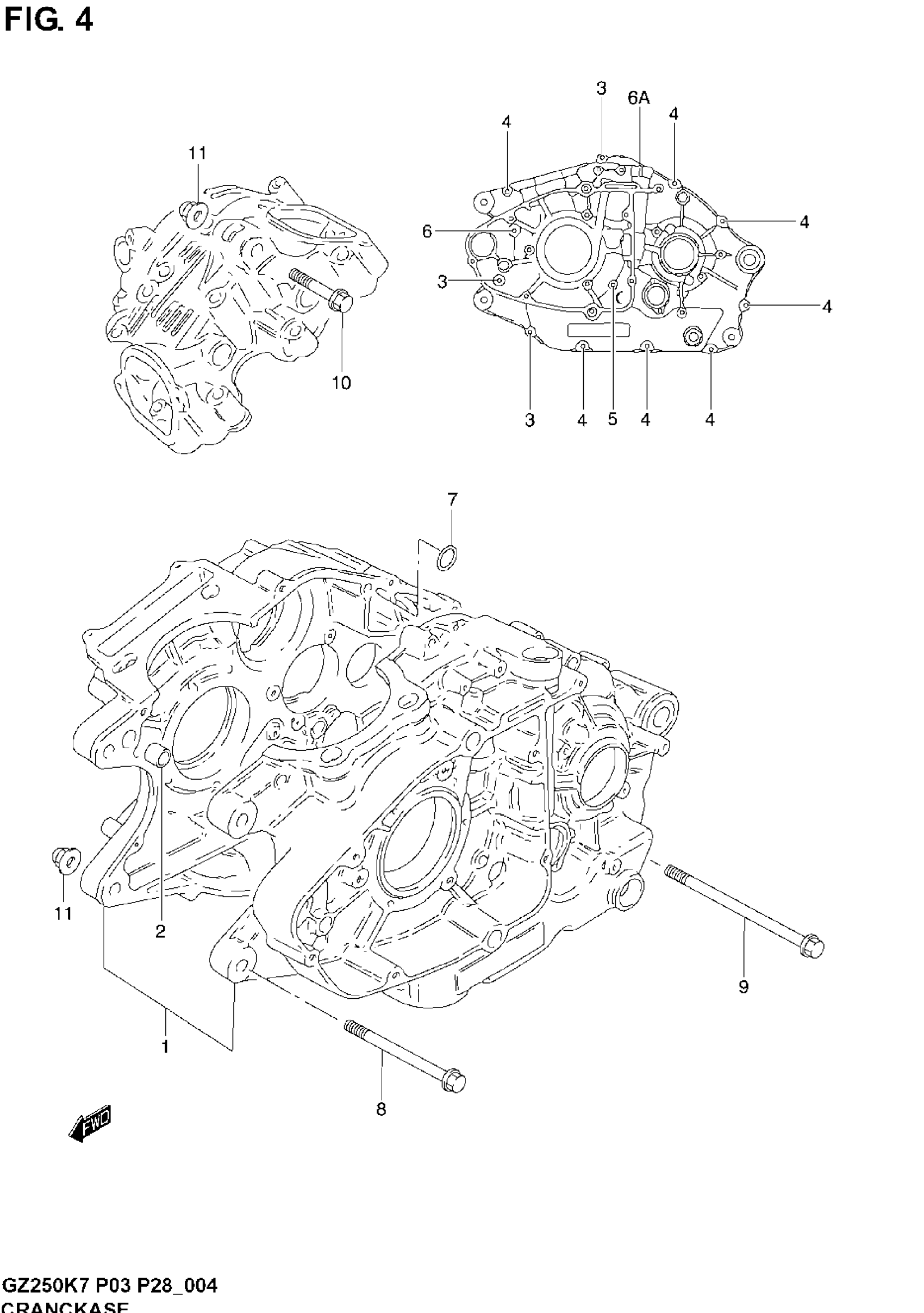

Suzuki GZ250 (2007) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K3 This part replaces 11300-13F02.

11300-13F03

Unavailable

1

CRANKCASE SET | MODEL K4/K5/K6/K7; Includes Item(s) 2 - 6A

11300-13F03

Unavailable

2

PIN

04211-13189

$2.19

3

BOLT

01547-06357

$2.03

4

BOLT

01547-06457

$2.32

5

BOLT This part replaces 01547-06553.

01547-0655B

$2.75

6

BOLT This part replaces 01547-06603.

01547-0660B

$3.18

6A

BOLT

01547-06707

$2.75

7

O RING (D:1.9, ID:9.8) | MODEL K3/K4

09280-10016

$3.37

7

O RING (D:1.9,ID:9.8) | MODEL K5/K6/K7 This part replaces 09280-10015.

09280-10016

$3.37

8

BOLT (8X67)

09103-08037

$5.57

9

BOLT (8X100)

09103-08114

$8.58

10

BOLT (8X50)

09103-08081

$3.72

11

NUT This part replaces 08319-31088.

08319-3108A

$2.32
