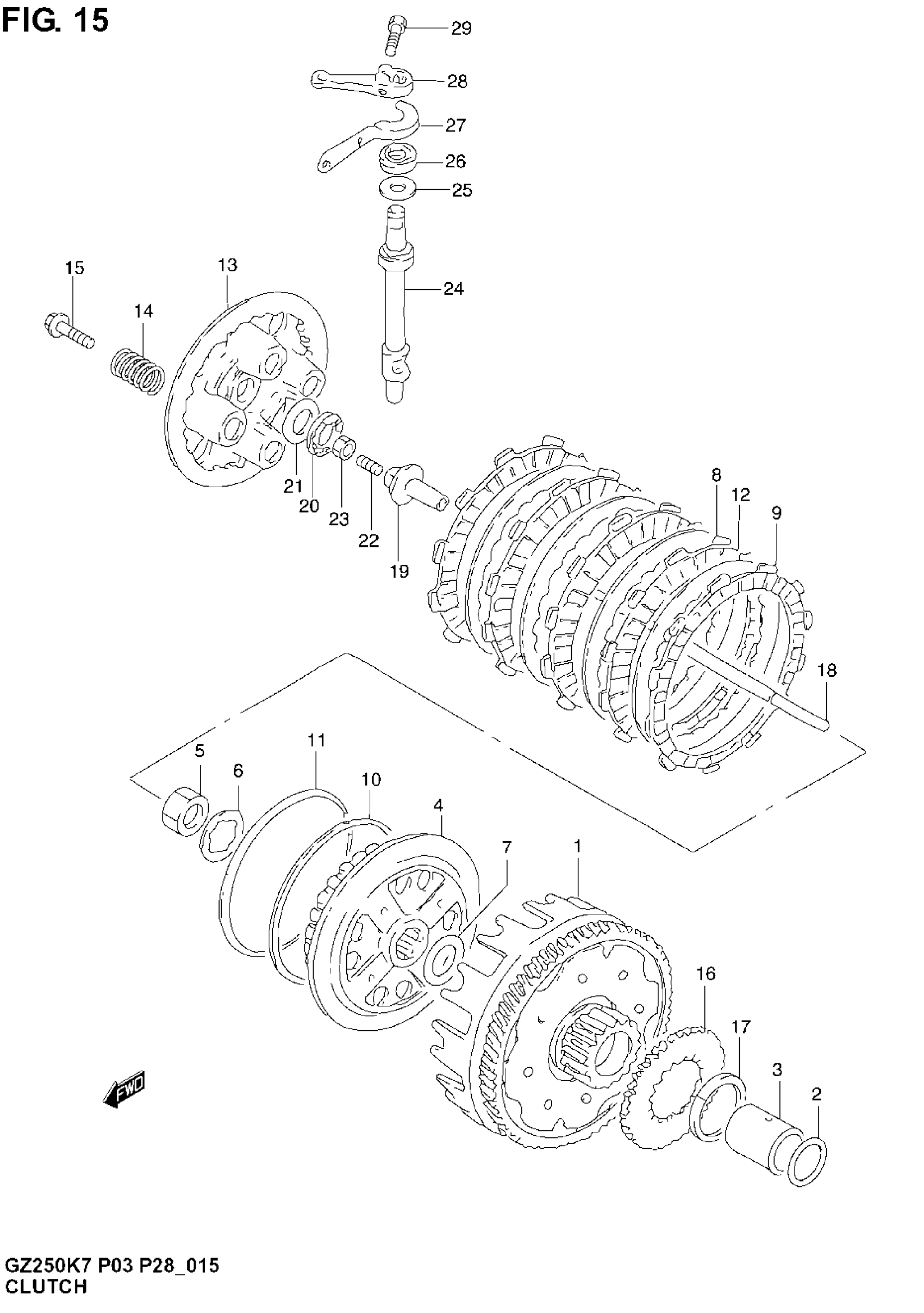

Suzuki GZ250 (2007) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY,PRI D This part replaces 21200-38201.

21200-38202

$283.28

2

THRUST WASHER

08211-22363

$4.00

3

SPACER (22X28X37.5)

09180-22024

Unavailable

4

HUB, CLUTCH SLEEVE

21411-38201

$121.77

5

NUT

09140-22005

$3.87

6

LOCK WASHER

09167-22010

$3.91

7

THRUST WASHER

08211-22363

$4.00

8

PLATE, CLUTCH DRIVE

21441-37430

$22.50

9

PLATE, CLUTCH DRIVE (T:3.5)

21442-37401

$18.67

10

SEAT, WAVE WASHER (T:1.4)

21471-37400

$9.78

11

WASHER (110.5X119X0.90)

09164-00004

$11.35

12

PLATE, CLUTCH DRIVEN (T:1.6)

21451-14A00

$9.52

13

DISC, CLUTCH PRESSURE

21462-27A00

$57.67

14

SPRING, CLUTCH

21413-13F00

$3.15

15

BOLT (6X16)

09116-06167

$2.19

16

GEAR, ENGINE OIL PUMP DRIVE

16321-38210

Unavailable

17

CIRCLIP

09380-50001

$1.94

18

ROD, CLUTCH PUSH

23110-38201

$18.02

19

PIECE, CLUTCH PUSH

23121-38201

$26.73

20

BEARING (15X28X2)

09263-15003

$8.29

21

WASHER (15.5X28X1)

09160-15045

$3.89

22

SCREW

09134-06010

$3.12

23

NUT

09140-06023

$2.06

24

CAM SHAFT, CLUTCH RELEASE

23122-38200

Unavailable

25

WASHER (14.5X22X1.0)

09160-14054

$2.07

26

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

27

PLATE, OIL SEAL

23117-38200

$5.50

28

ARM, CLUTCH RELEASE

23271-49100

$32.10

29

BOLT

01500-06207

$2.28
