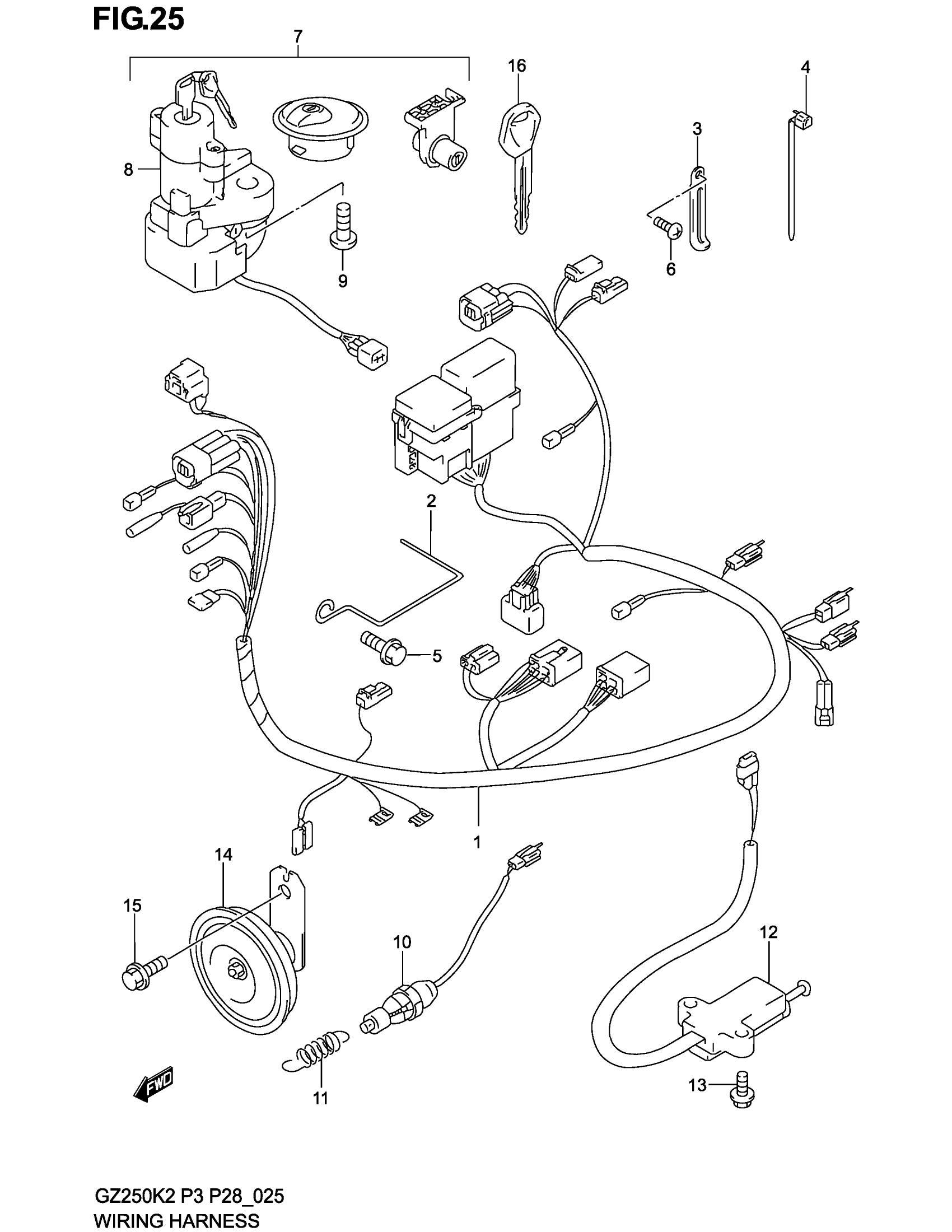

Suzuki GZ250 (2002) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 36610-13FA0.

36610-13FA1

Unavailable

2

GUIDE, WIRING HARNESS

36619-23E00

Unavailable

3

CLAMP (L:60)

09404-06429

$1.83

3

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

3

CLAMP (L:135)

09404-06435

$3.68

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP (L:165)

09407-18402

$2.19

4

CLAMP (L:235)

09407-25401

$4.66

4

CLAMP (L:95)

09407-11401

$2.63

5

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

6

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

7

LOCK SET, STEERING

95072-33E21

Unavailable

7

LOCK SET, STEERING | P33; Includes Item(s) 8

95072-33E11

Unavailable

8

LOCK ASSY,STEER This part replaces 37100-33E20.

37100-33E21

$201.45

9

SCREW

09139-08016

$3.37

10

SWITCH ASSY, STOP LAMP

37740-04A10

$23.32

11

SPRING, STOP LAMP

09443-06046

$3.10

12

SWITCH ASSY,SID This part replaces 37840-44A20.

37840-44X52

$57.00

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

HORN ASSY This part replaces 38500-12FA0.

38500-10D10

Unavailable

15

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

16

KEY, BLANK | OPT

37146-33E00

$21.21
