Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 16

31100-38300-H17

$674.33

2

ARMATURE

31311-49211-H17

Unavailable

3

OIL SEAL

31153-49210

$24.20

4

SHIM SET

31170-43400

Unavailable

5

O RING

31264-44110

$11.87

6

HOLDER, BRUSH

31132-27A01

$73.55

7

SPRING

31135-65010

$4.52

8

BRUSH (+)

31130-38300

$18.43

9

BUSH

31172-38300

$6.55

10

BUSH, B

31171-38300

$8.93

11

O RING

31143-38300

$5.10

12

BOLT

31281-87402

Unavailable

13

LOCK WASHER

08321-01067

$2.13

14

WASHER

31161-38300

Unavailable

15

O RING

31156-38300

$4.52

16

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

17

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

18

NUT This part replaces 08361-35066.

08361-3506A

$1.80

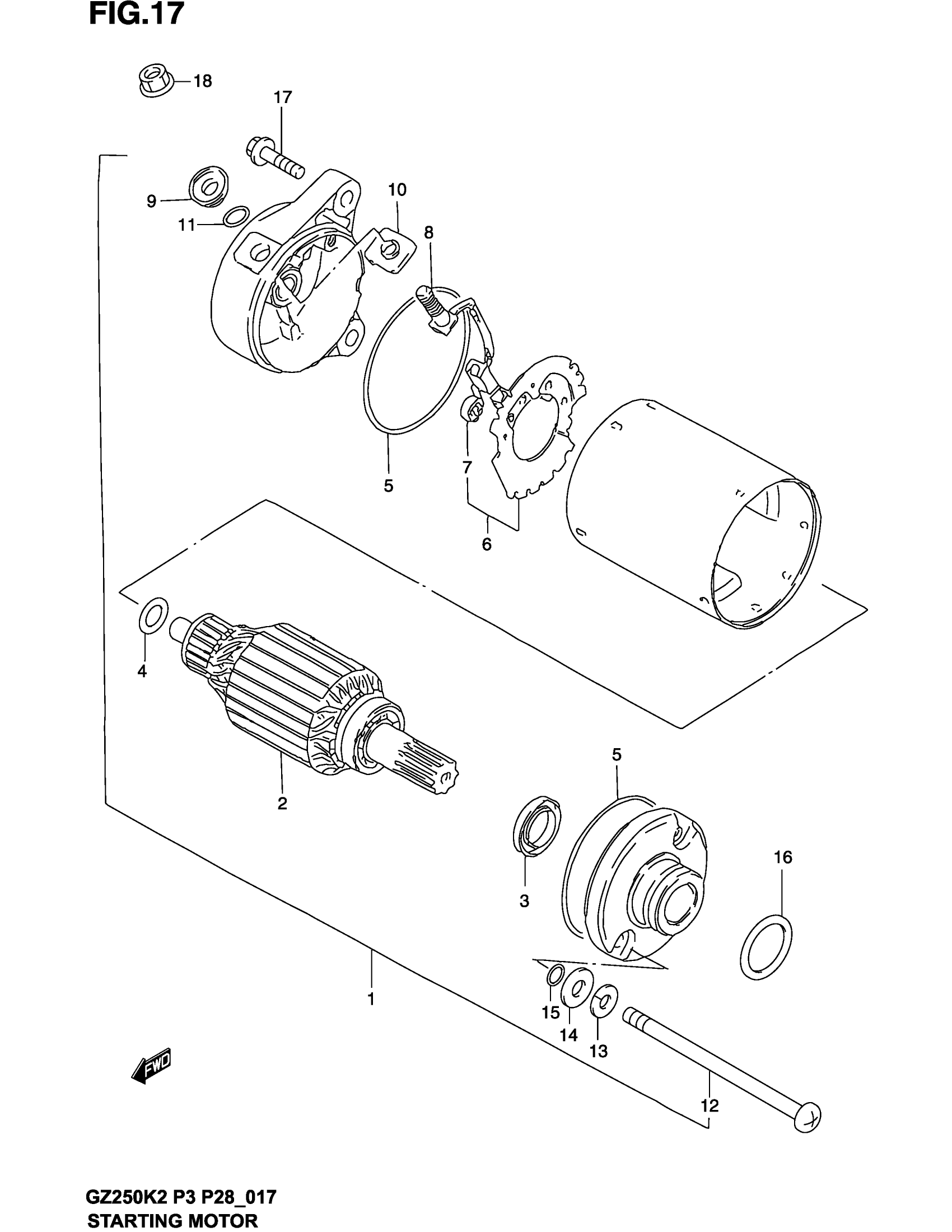

Suzuki GZ250 (2002) STARTING MOTOR Diagram

MOTOR ASSY, STARTING | Includes Item(s) 2 - 16

ARMATURE

OIL SEAL

SHIM SET

O RING

HOLDER, BRUSH

SPRING

BRUSH (+)

BUSH

BUSH, B

O RING

BOLT

LOCK WASHER

WASHER

O RING

.O-RING (D:3,ID:24.5)

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

NUT This part replaces 08361-35066.
