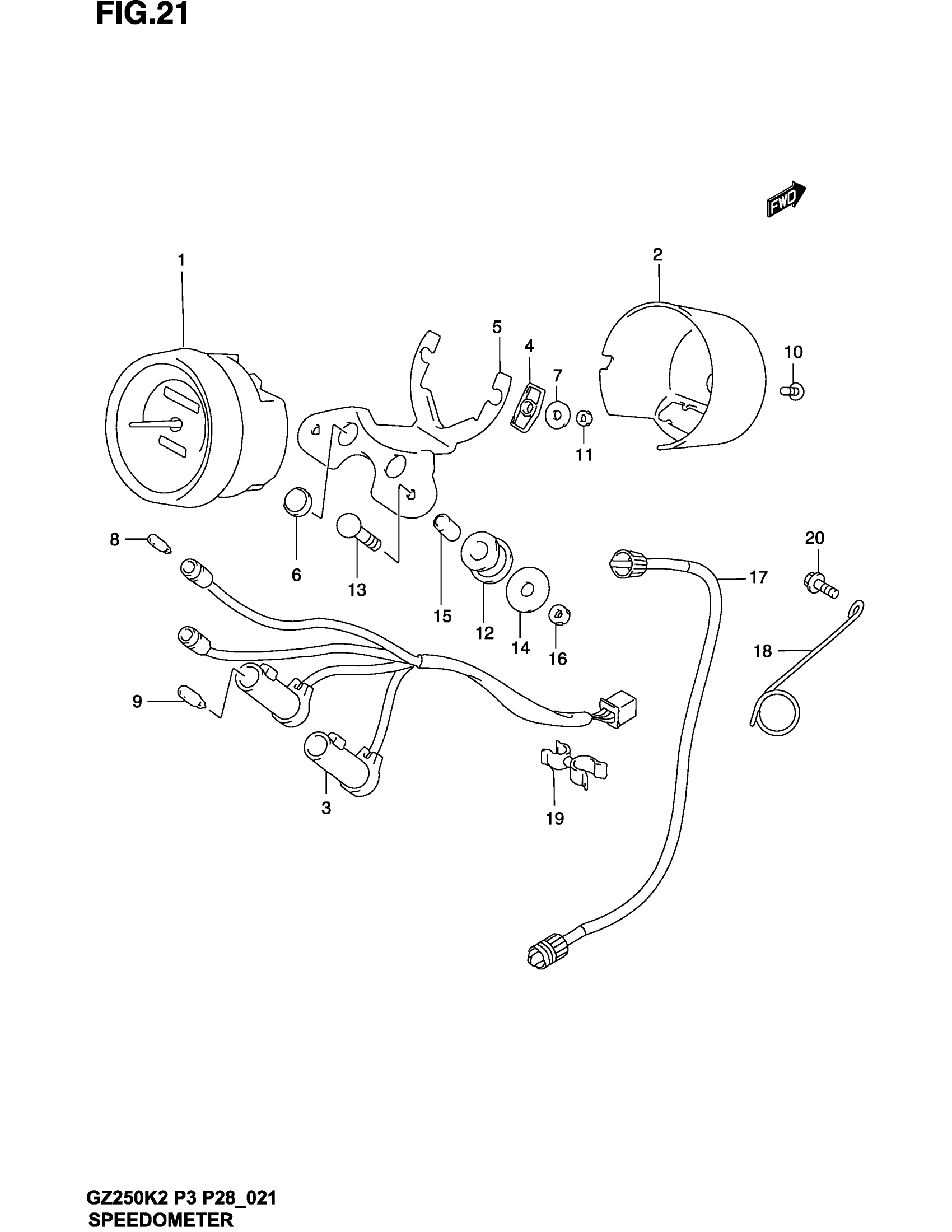

Suzuki GZ250 (2002) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-13F10

Unavailable

1

SPEEDOMETER (KILO) | P28

34110-13F00

Unavailable

2

COVER, UNDER

34111-25D00

$72.00

3

SOCKET ASSY

34170-25D10

Unavailable

4

CUSHION,DAMPER This part replaces 34191-25D00.

34191-25D01

$8.67

5

BRACKET, METER

34950-25D00

Unavailable

6

LENS, NEUTRAL (GREEN)

36321-25D00

Unavailable

7

WASHER (5.2X16X1)

09160-05013

$1.49

8

BULB (12V,3.4W)

09471-12028

$1.99

9

.BULB (12V1.7W)

09471-12108

$3.42

10

SCREW This part replaces 03541-14123.

03541-1412A

$2.13

11

NUT

08310-00057

$1.84

12

CUSHION. METER BRACKET

34956-31001

$4.37

13

BOLT (6X30)

09107-06003

$3.03

14

WASHER (6.5X28X1.6)

09160-06136

$1.84

15

SPACER (6.5X10X15.7)

09180-06294

$3.35

16

NUT This part replaces 08310-00063.

08310-0006A

$1.84

17

CABLE ASSY,SPEE This part replaces 34910-12F00.

34910-12F01

$38.37

18

GUIDE, SPEEDOMETER CABLE

34938-37000

$3.73

19

CLAMP This part replaces 09408-00119.

09408-00056

$3.08

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
