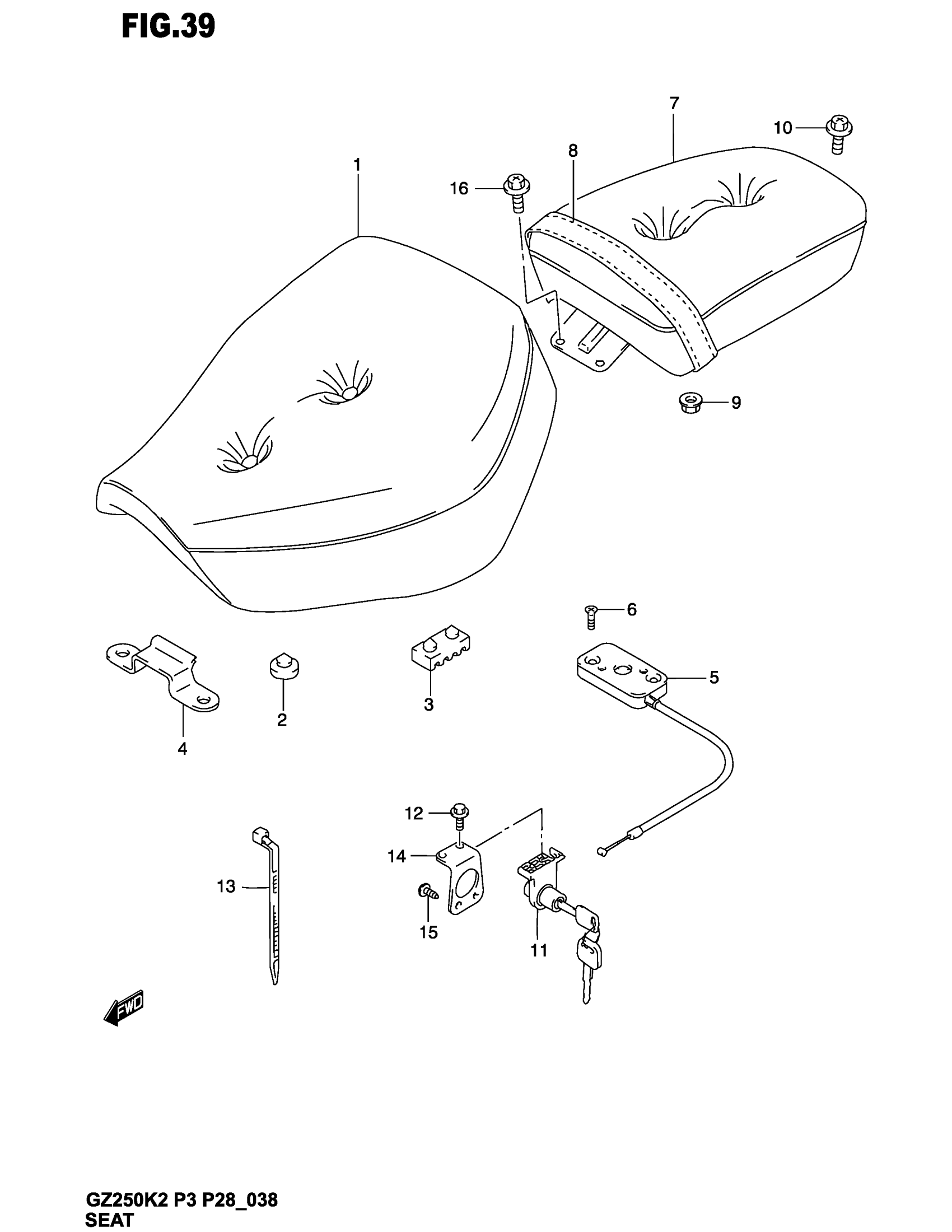

Suzuki GZ250 (2002) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 3

45100-0AE00-K9C

Unavailable

2

CUSHION,SEAT This part replaces 45148-12FA0.

45148-36C01

$4.23

3

CUSHION, REAR

45149-0AE00

Unavailable

4

PLATE, FRONT SEAT HOOK

45119-12F00

$8.42

5

BRACKET, FRONT SEAT

45220-12F00

Unavailable

6

SCREW This part replaces 02122-06253.

02122-0625A

$1.49

7

SEAT ASSY PILLI | Includes Item(s) 8 - 9 This part replaces 45300-12FA0-K9C.

45300-0AE00-K9C

$318.15

8

BAND, SEAT This part replaces 45180-12FA0-T65.

45180-12F00-T65

Unavailable

9

NUT This part replaces D8316-10065.

08310-0006A

$1.84

10

BOLT, REAR (8X16)

09106-08140

$6.38

11

LOCK ASSY, SEAT

95700-31C00

Unavailable

12

BOLT This part replaces 01547-05103.

01547-0510B

$2.97

13

CLAMP

09407-22403

Unavailable

14

BRACKET, SEAT LOCK

45289-03F00

Unavailable

15

SCREW This part replaces 03141-14123.

03141-1412B

$2.83

16

BOLT, FRONT (6X12)

09106-06061

$8.15
