Description

Price

1

GRIP, THROTTLE This part replaces 57110-12FA0.

57110-22D03

$29.21

2

LEVER ASSY, BRAKE | Includes Item(s) 3 - 5

57300-26F00

Unavailable

3

LEVER, BRAKE

57420-26F00

$23.32

4

BOLT, LEVER

57431-17C00

$7.11

5

NUT This part replaces 08316-16065.

08316-1006B

$2.50

6

SWITCH ASSY,FR BRAKE | Includes Item(s) 7 This part replaces 57460-17C00.

57460-14J02

$38.46

7

SCREW

57465-17C00

$2.19

8

GRIP, LH (BLACK) This part replaces 57211-12FA0.

57211-22D02-291

$14.55

9

LEVER ASSY, CLUTCH | Includes Item(s) 10 - 14 This part replaces 57500-12F00.

57500-0AE00

$38.42

10

LEVER ASSY, CLUTCH This part replaces 57621-33E01.

57621-40F00

$18.77

11

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

$9.76

12

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

13

.ADJUSTER, WIRE This part replaces 57041-0AE00.

57441-45C01

$9.05

14

..BOLT This part replaces 01547-06205.

01547-0620B

$2.45

15

.SWITCH,CLUTCH

57560-05A00

$12.15

16

SCREW This part replaces 02122-03203.

02122-0320B

$2.83

17

COVER,CLUTCH LEVER This part replaces 57661-33E00.

57661-33E01

$8.24

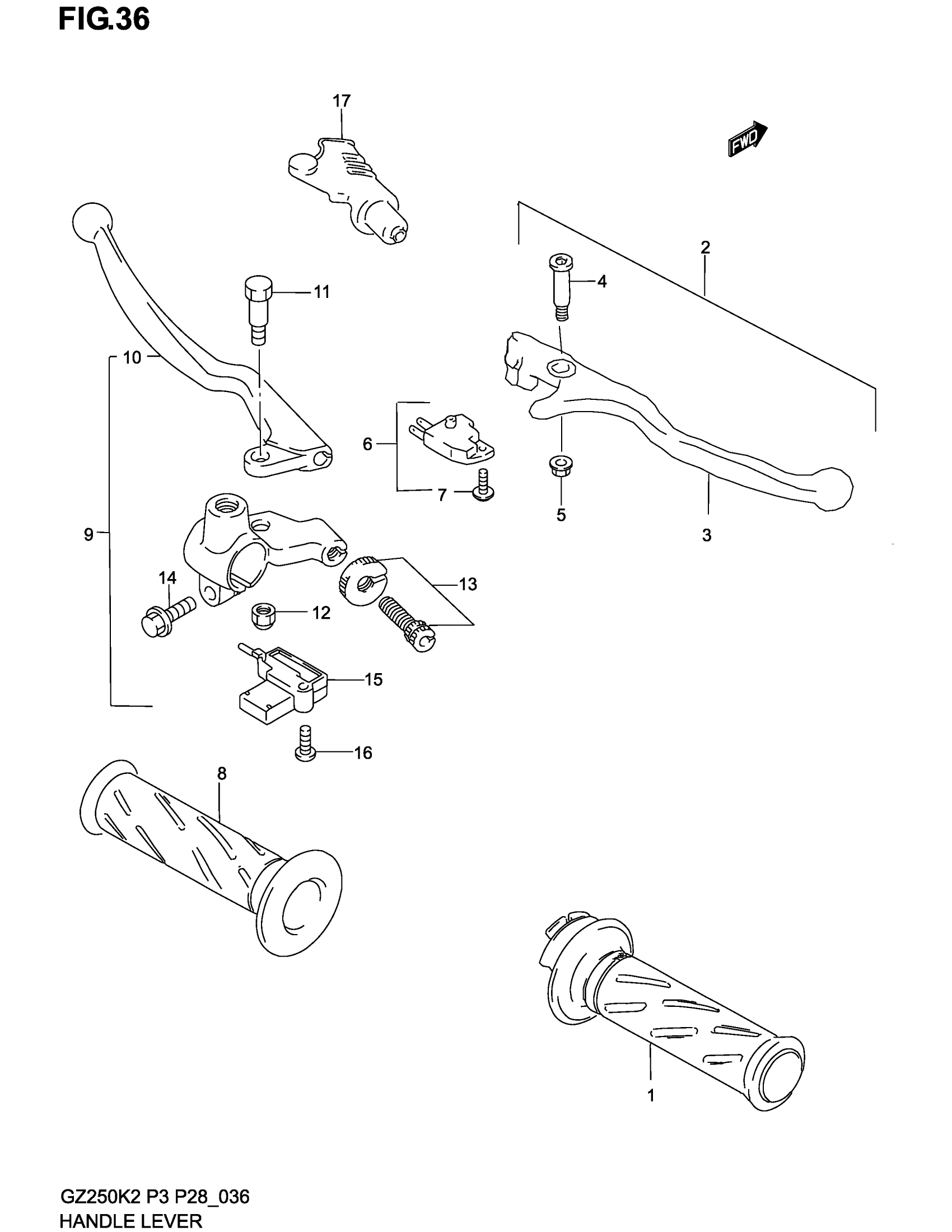

Suzuki GZ250 (2002) HANDLE LEVER Diagram
