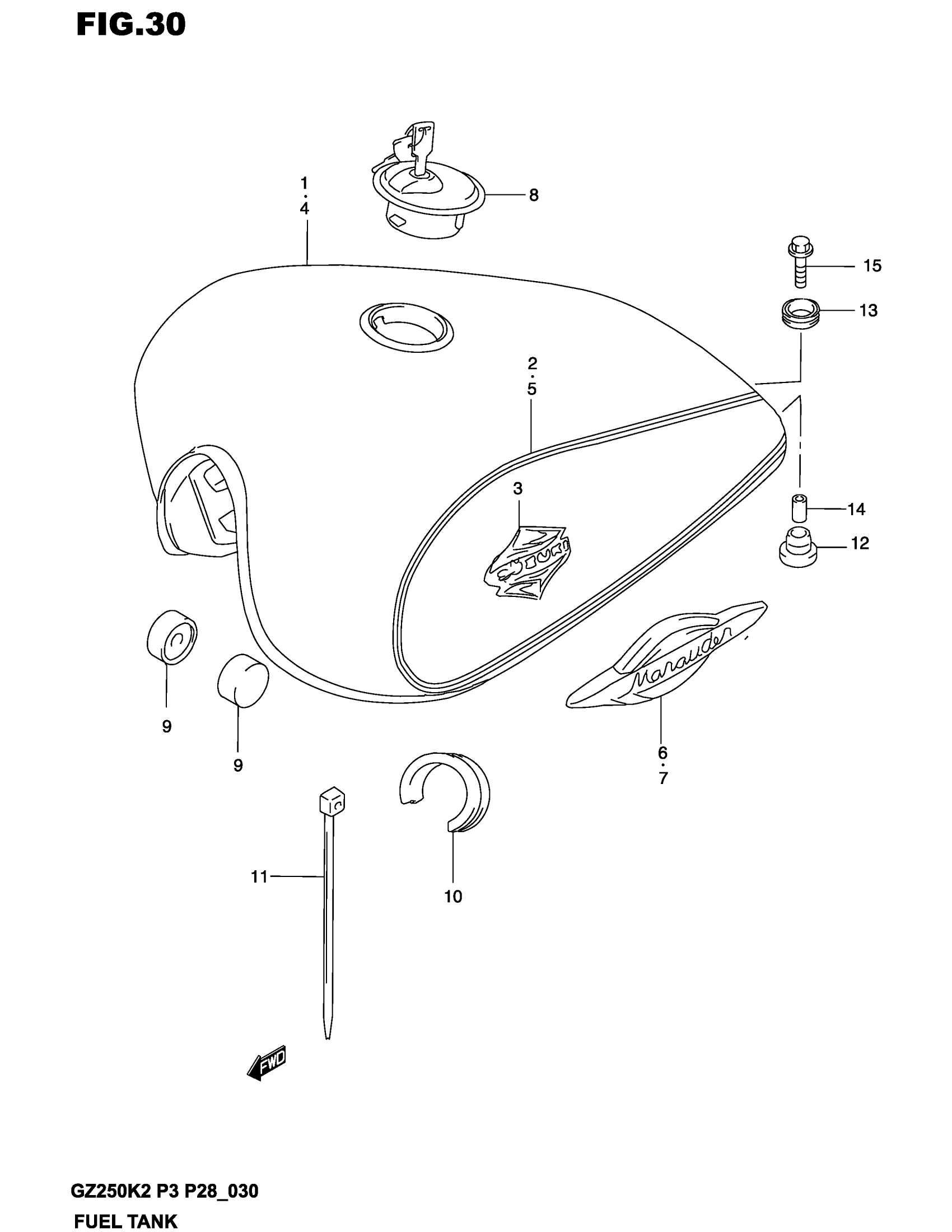

Suzuki GZ250 (2002) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL (RED) | P33

44100-12FF0-19A

Unavailable

1

TANK ASSY, FUEL (BLACK) | P33 This part replaces 44100-12FF0-Y7L.

44100-12FF1-Y7L

Unavailable

1

TANK ASSY, FUEL (RED) | P3

44100-12FG0-19A

Unavailable

1

TANK ASSY, FUEL (BLACK) | P3; Includes Item(s) 2 - 2 This part replaces 44100-12FG0-Y7L.

44100-12FG1-Y7L

Unavailable

2

TAPE SET, FUEL TANK | P3, P33 FOR 19A

68110-12F50-GS8

Unavailable

2

TAPE SET, FUEL TANK | P3, P33 FOR Y7L

68110-12F50-GT1

Unavailable

3

EMBLEM, FUEL TANK | P3, P33 FOR 19A

68111-38A21-N8Y

Unavailable

3

EMBLEM, FUEL TANK | P3, P33 FOR Y7L

68111-38A21-CH1

Unavailable

4

TANK ASSY, FUEL (RED) | P28

44100-12FE0-19A

Unavailable

4

TANK ASSY, FUEL (GREEN) | P28

44100-12FE0-Y7G

Unavailable

4

TANK ASSY, FUEL (BLACK) | P28; Includes Item(s) 5 - 5

44100-12FE0-Y7L

Unavailable

5

TAPE SET, FUEL TANK | P28 FOR 19A

68110-12F50-GS8

Unavailable

5

TAPE SET, FUEL TANK | P28 FOR Y7G

68110-12F50-GS9

Unavailable

5

TAPE SET, FUEL TANK | P28 FOR Y7L

68110-12F50-GT1

Unavailable

6

EMBLEM, FUEL TANK RH | P28

68111-12F00

Unavailable

7

EMBLEM, FUEL TANK LH | P28

68121-12F00

Unavailable

8

CAP ASSY, FUEL TANK FILLER

44200-12F00

Unavailable

8

CAP ASSY, FUEL TANK FILLER | P33

44200-38A10

Unavailable

9

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

10

CUSHION,FUEL TA This part replaces 44541-03F00.

44541-03F01

$12.80

11

CLAMP This part replaces 09407-20405.

09407-25402

$4.64

12

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

13

CUSHION, FUEL TANK REAR

44512-42E00

$3.43

14

SPACER (6.5X9X18)

09180-06271

$2.35

15

BOLT This part replaces 01550-06303.

01550-0630A

$2.32
