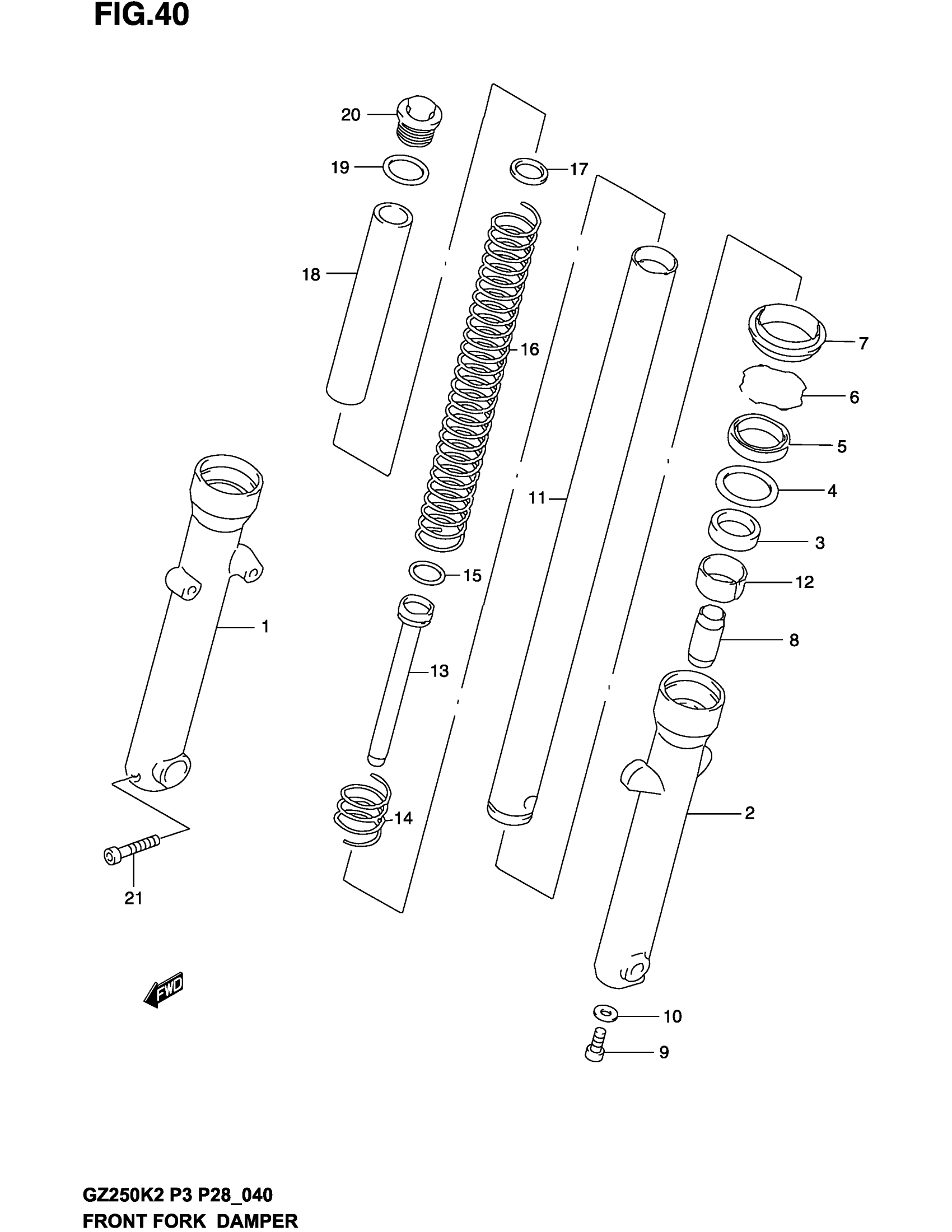

Suzuki GZ250 (2002) FRONT FORK DAMPER Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-12FA0

Unavailable

DAMPER ASSY | Includes Item(s) 1 - 21 This part replaces 51104-12FA0.

51104-12FD0

Unavailable

1

TUBE, OUTER RH

51130-12FA0

Unavailable

2

TUBE, OUTER LH

51140-12FA0

Unavailable

3

BUSH, GUIDE This part replaces 51152-12F00.

51167-03B30

$20.80

4

SPACER, SEAL This part replaces 51168-12FA0.

51168-38A00

$6.72

5

SEAL, OIL This part replaces 51153-25D00.

51153-03B30

$18.51

6

RING, STOPPER This part replaces 51556-12FA0.

51156-03B30

$6.17

7

SEAL, DUST

51173-25D00

$19.35

8

PIECE, OIL LOCK

51195-25D00

$23.47

9

.BOLT, CENTER This part replaces 51147-42AA0.

51147-06F10

$5.98

10

O RING This part replaces 51148-31030.

51148-36011

$3.56

11

TUBE, INNER This part replaces 51110-12FA0.

51110-12FD0

$151.97

12

BUSH, SLIDE

51121-12FA0

$14.00

13

PIPE, SEAT

51146-12FA0

Unavailable

14

SPRING, REBOUND

51177-12FA0

Unavailable

15

RING, PISTON

51196-12FA0

$7.50

16

BOLT This part replaces 51171-12FA0.

07130-08357

$3.18

17

JOINT, SPRING

51192-12FA0

Unavailable

18

COLLAR, SPRING

51176-25D00

$11.65

19

O RING

51117-25D00

$4.46

20

BOLT, FORK

51189-12FA0

Unavailable

21

BOLT This part replaces 51166-12FA0.

07130-08357

$3.18
