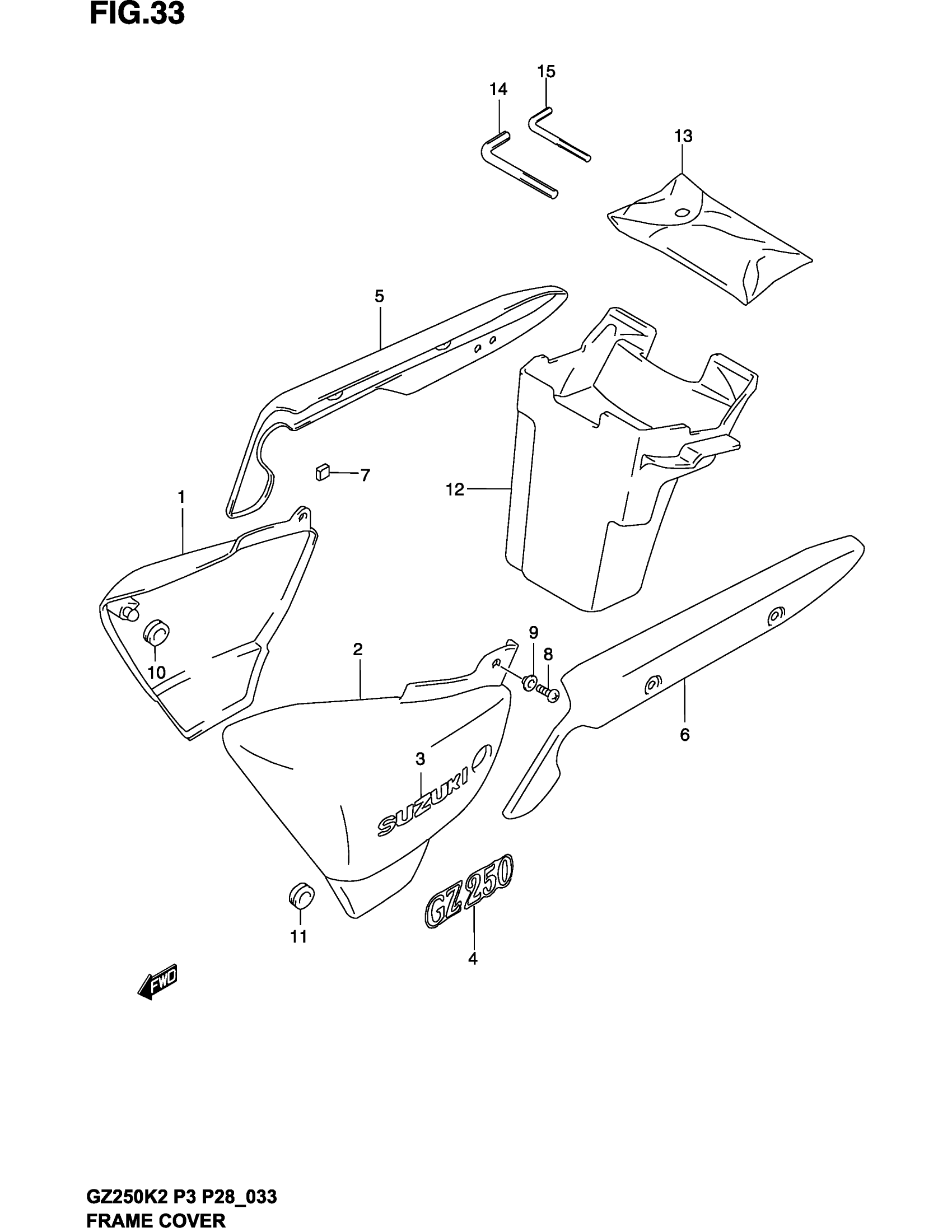

Suzuki GZ250 (2002) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME,R This part replaces 47111-12F00-19A.

47111-0AE10-NE2

Unavailable

1

COVER, FRAME RH (BLACK)

47111-12F00-Y7L

Unavailable

1

COVER, FRAME,R | P28 This part replaces 47111-12F00-Y7G.

47111-0AE10-NE2

Unavailable

2

COVER,FRAME,L(R This part replaces 47211-12F00-19A.

47211-0AE10-NE2

$17.68

2

COVER,FRAME,L(R This part replaces 47211-12F00-Y7L.

47211-0AE10-NE2

$17.68

2

COVER,FRAME,L(R | P28 This part replaces 47211-12F00-Y7G.

47211-0AE10-NE2

$17.68

3

EMBLEM, FRAME COVER | P3, P33 FOR 19A

68131-12F40-N9A

Unavailable

3

EMBLEM, FRAME COVER | P3, P33 FOR Y7L This part replaces 68131-12F40-GT4.

68131-12F40-LK5

$5.73

4

EMBLEM, SUZUKI | P28 FOR 19A

68131-12F50-J2N

Unavailable

4

EMBLEM, SUZUKI | P28 FOR Y7G

68131-12F50-GU3

Unavailable

4

EMBLEM, SUZUKI | P28 FOR Y7L

68131-12F50-M7P

Unavailable

5

COVER, FRAME REAR RH

47121-12FA0

Unavailable

6

COVER, FRAME REAR LH

47221-12FA0

Unavailable

7

CUSHION (80X20X10) This part replaces 53123-33E00.

33652-01D10

$5.17

8

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

9

WASHER

09169-06071

$2.50

10

CUSHION

09320-08018

$3.04

11

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

12

BODY, LUGGAGE BOX This part replaces 92211-12F00.

92211C12F01J000

Unavailable

13

TOOL ASSY This part replaces 09800-21022.

09800-21104

$34.10

14

SPANNER 6, HEXAGON

09816-00050

$5.03

15

SPANNER 4, HEXAGON

09816-00103

$6.17
