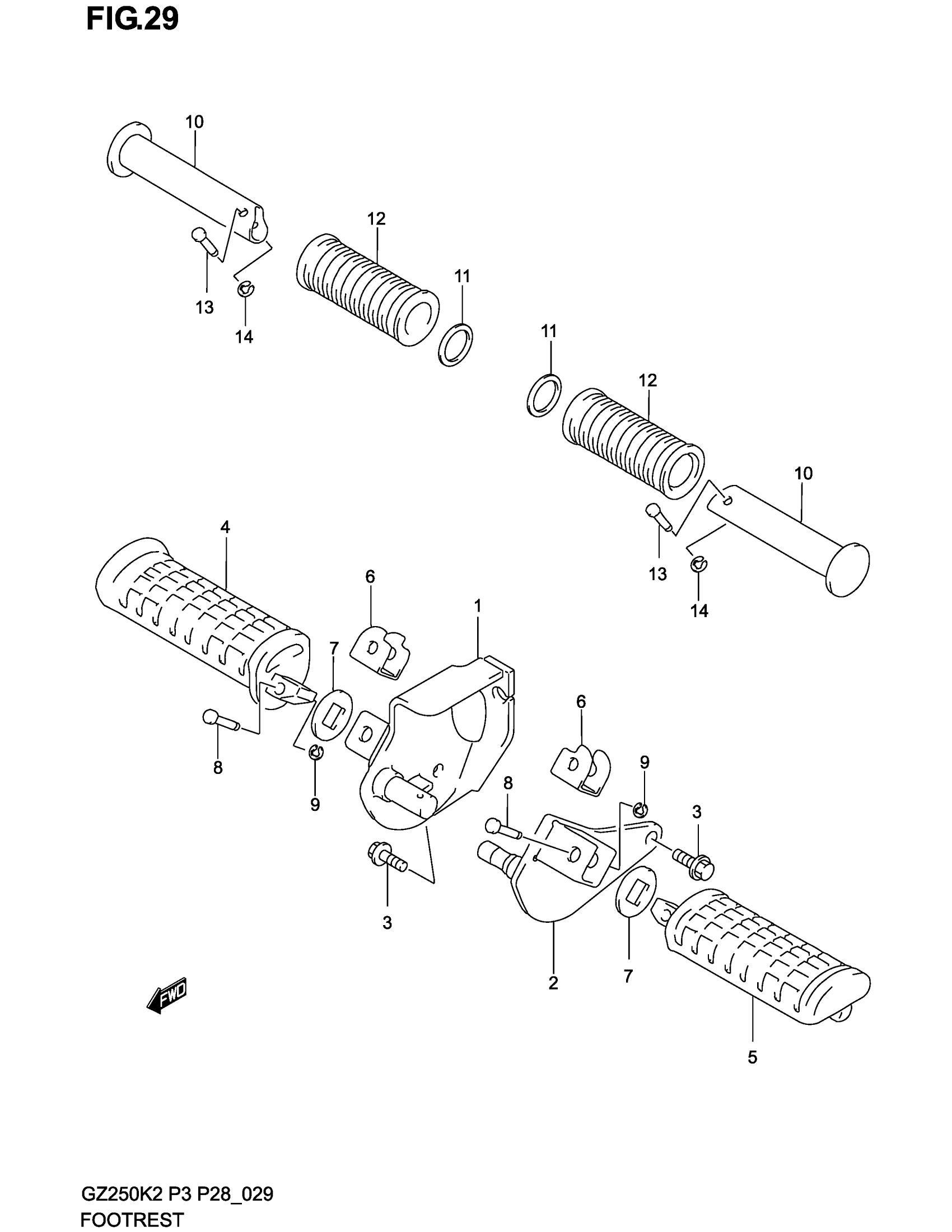

Suzuki GZ250 (2002) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH (B

43510-13FA0-EE3

$30.82

2

BRACKET, FRONT FOOTREST LH (B

43520-13FA0-EE3

$32.33

3

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

4

RUBBER, FRONT FOOTREST RH

43550-12FA0

$20.80

5

RUBBER, FRONT FOOTREST LH

43560-12FA0

$18.72

6

CUSHION,FR FOOT This part replaces 43570-04F00.

43570-04F01

$17.04

7

WASHER, FOOTREST RUBBER

43631-34A01

$4.52

8

PIN

09208-06005

$3.40

9

E RING This part replaces 08332-11043.

08332-1104A

$1.49

10

BAR, PILLION FOOTREST

43610-03001

$6.52

11

WASHER (19.5X32X2.0)

09160-19024

$2.65

12

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$5.83

13

PIN, PILLION FOOTREST

43636-25D00

$10.65

14

E RING This part replaces 08332-11043.

08332-1104A

$1.49
