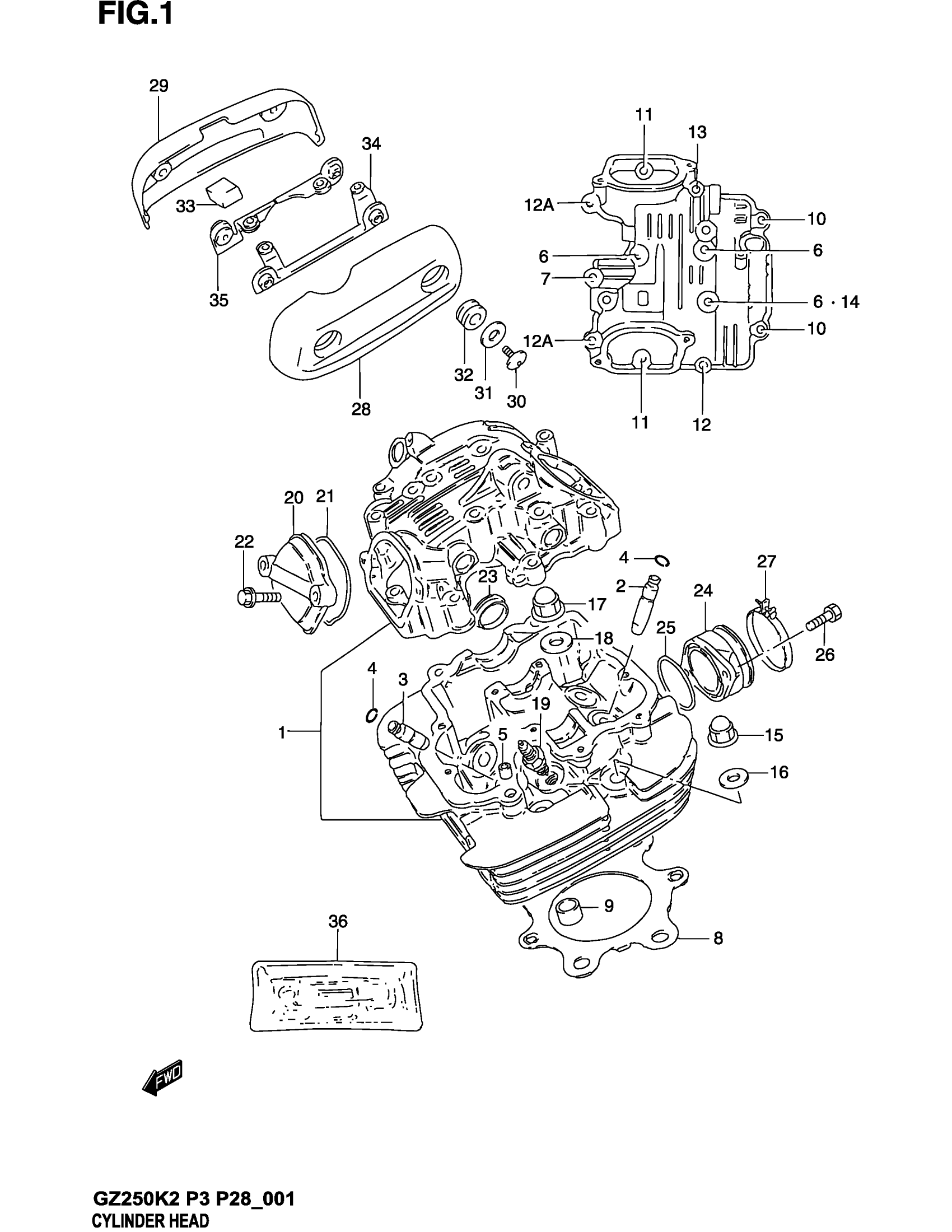

Suzuki GZ250 (2002) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 7 This part replaces 11100-25D01.

11100-25D02

$1,036.60

2

GUIDE, VALVE

11115-38201

Unavailable

3

GUIDE, VALVE

11115-05200

Unavailable

4

.RING (10X85)

09381-10004

$1.50

5

PIN (6.2X8X11)

09206-08001

$1.78

6

BOLT (CHROME)

01550-06607

$4.17

6

BOLT This part replaces 01550-06603.

01550-0660A

$3.05

7

BOLT (CHROME)

01550-06307

$2.69

7

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

8

GASKET, CYLINDER HEAD This part replaces 11141-38201.

11141-25D11

$32.36

9

PIN

04211-13189

$2.19

10

BOLT (6X120)

09103-06148

$4.77

11

BOLT (CHROME)

01550-06307

$2.69

11

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

12

BOLT (CHROME)

01550-06457

$2.69

12

BOLT This part replaces 01550-06453.

01550-0645A

$2.41

12A

BOLT (CHROME)

01550-06507

$3.40

12A

BOLT This part replaces 01550-06503.

01550-0650A

$2.85

13

BOLT (CHROME)

01550-06607

$4.17

13

BOLT This part replaces 01550-06603.

01550-0660A

$3.05

14

GASKET (5.8X13X1.2)

09168-06023

$2.35

15

NUT This part replaces 09159-10092.

09159-10026

$6.20

16

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

17

NUT

09159-10069

$7.05

18

GASKET (10.5X22X2)

09168-10017

$3.04

19

SPARK PLUG (DR8EA)

09482-00399

$3.32

19

SPARK PLUG (X24ESR-U)

09482-00223

$5.18

20

CAP, INSPECTION

11175-38202

$23.35

21

O RING

09280-55003

$3.89

22

BOLT (CHROME)

01550-06257

$2.30

22

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

23

PLUG

09241-30004

$6.60

24

PIPE, INTAKE

13110-13F00

$33.92

25

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

26

SCREW This part replaces 02122-06163.

02122-0616A

$1.49

27

CLAMP

09402-48208

$4.64

28

CAP, CYLINDER HEAD COVER LH

11171-13F00

$107.10

29

CAP, CYLINDER HEAD COVER RH

11172-13F00

Unavailable

30

BOLT, HEAD COVER CAP

11178-12F10

$5.56

31

WASHER (6.5X24X1.6)

09160-06134

$1.91

32

CUSHION

09320-13015

$2.85

33

DAMPER, HEAD CAP RH

11178-13F00

Unavailable

34

BRACKET, HEAD CAP LH

11179-13F01

Unavailable

35

BRACKET, HEAD CAP RH

11179-13F11

Unavailable

36

GASKET SET This part replaces 11401-13821.

11401-13823

$125.58
