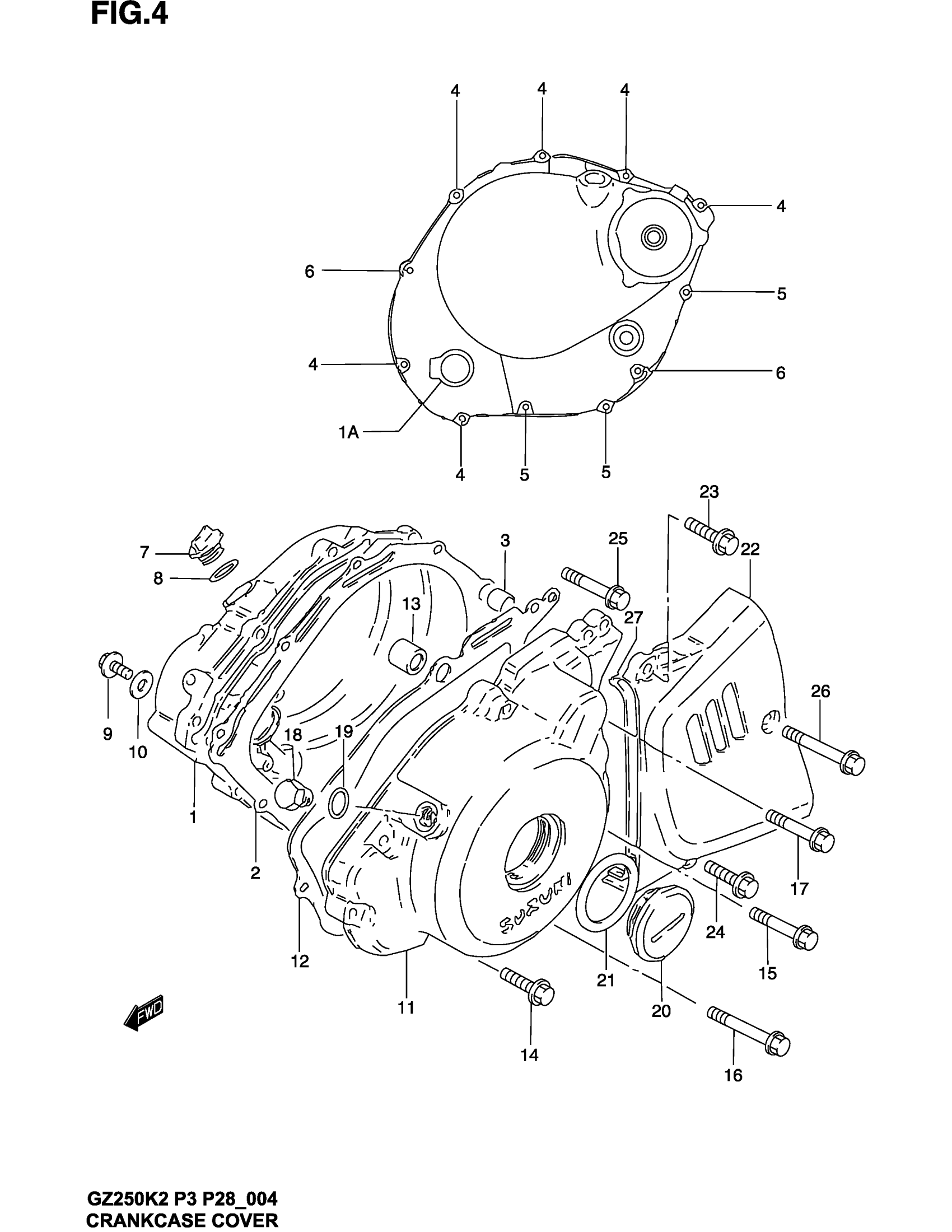

Suzuki GZ250 (2002) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 1A

11340-38302

$326.27

1A

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

2

GASKET, CLUTCH COVER This part replaces 11482-38311.

11482-38312

$30.80

3

PIN

04211-13189

$2.19

4

BOLT

01547-06257

$2.03

5

BOLT

01547-06357

$2.03

6

BOLT

01547-06457

$2.32

7

PLUG (20X10)

09259-20007

$7.53

8

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

9

PLUG This part replaces 09247-14012.

09247-14026

$3.76

10

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

11

COVER, MAGNETO

11351-38300

$210.85

12

GASKET, MAGNETO COVER

11483-37D00

$14.99

13

PIN

04211-13189

$2.19

14

BOLT

01547-06257

$2.03

15

BOLT

01547-06357

$2.03

16

BOLT

01547-06507

$2.41

17

BOLT

01547-06607

$3.18

18

PLUG

09247-12104

$2.73

19

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

20

PLUG

09259-36011

$20.46

21

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

22

COVER, ENGINE SPROCKET

11361-38300

$116.47

23

BOLT

01547-05207

$2.53

24

BOLT

01547-05257

$2.19

25

BOLT

01547-05307

$2.30

26

BOLT

01547-05457

$2.90

27

DAMPER, ENGINE SPROCKET COVER

11362-38300

Unavailable
