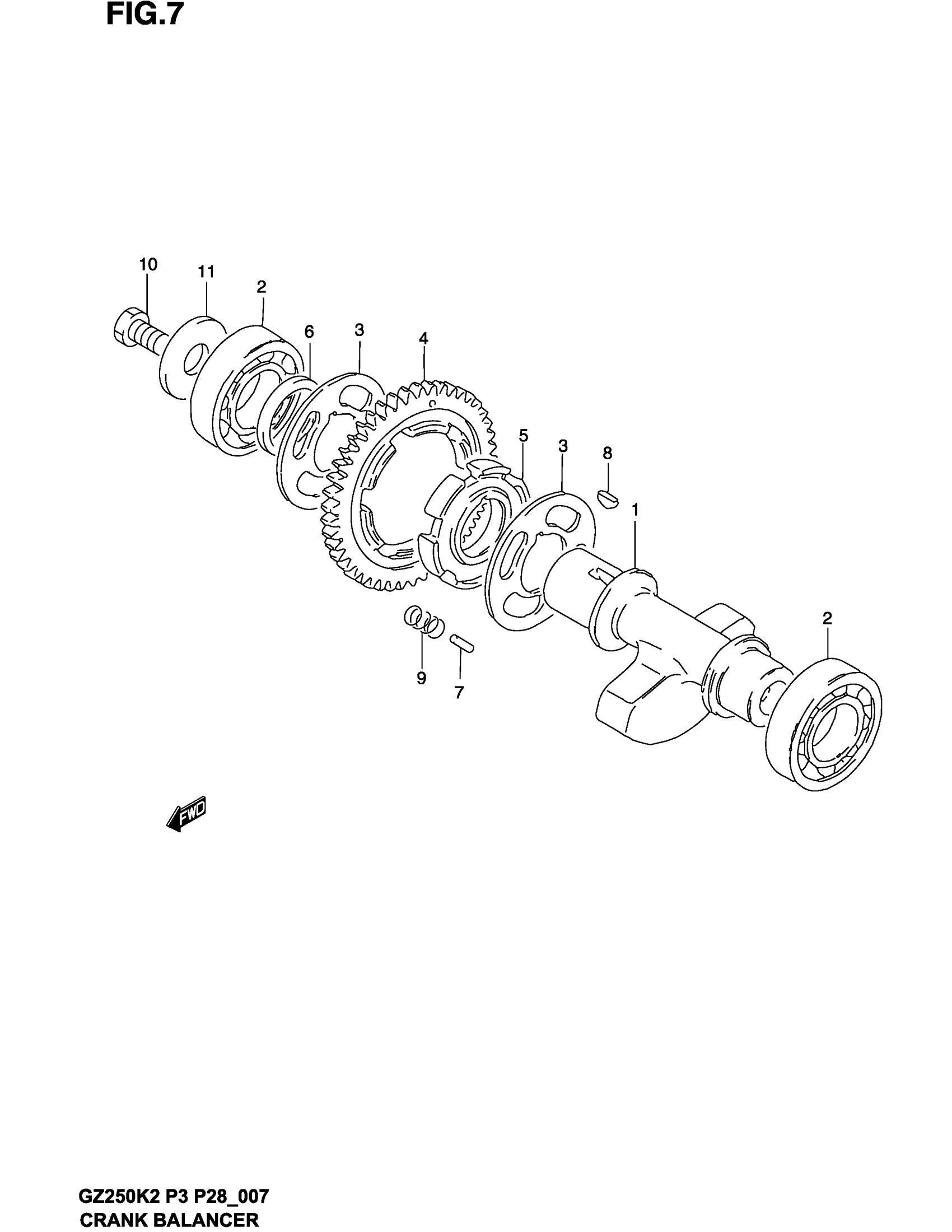

Suzuki GZ250 (2002) CRANK BALANCER Diagram

#

Description

Price

1

SHAFT, CRANK BALANCER

12651-38202

Unavailable

2

BEARING, AXLE SHAFT, LH This part replaces 09262-25047.

09262-25084

$39.10

3

WASHER

12663-38200

Unavailable

4

GEAR, CRANK BALANCER DRIVEN (

12666-38200

Unavailable

5

RACE, CRANK BALANCER DRIVEN

12669-38200

Unavailable

6

SHIM (T:0.50)

09181-25186

$3.93

7

PIN (D:4.5,L:9.5)

09202-04017

$3.78

8

KEY This part replaces 08341-31049.

09420-04008

$3.42

9

SPRING

09440-09015

$2.38

10

BOLT This part replaces 01500-12163.

01500-1216B

$3.95

11

WASHER This part replaces 09160-12034.

09160-12076

Unavailable
