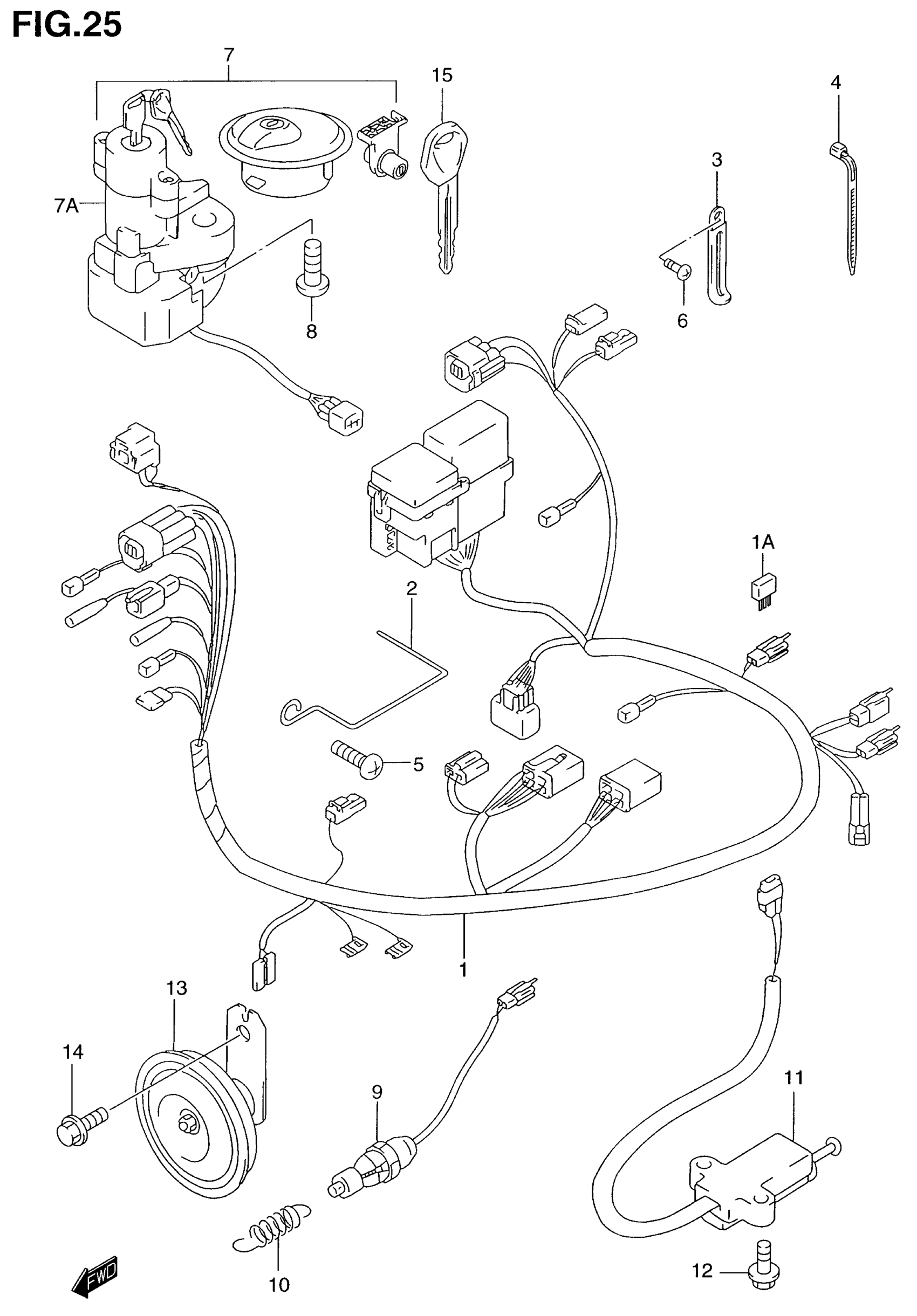

Suzuki GZ250 (2001) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 1A

36610-13F10

Unavailable

1A

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

2

GUIDE, WIRING HARNESS

36619-23E00

Unavailable

3

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

3

CLAMP (L:135)

09404-06435

$3.68

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP (L:165)

09407-18402

$2.19

4

CLAMP (L:235)

09407-25401

$4.66

5

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

6

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

7

LOCK SET

37102-33870

Unavailable

7

LOCK SET | E33; Includes Item(s) 7A

37102-33890

Unavailable

7A

LOCK ASSY,STEER This part replaces 37100-33E20.

37100-33E21

$201.45

8

SCREW

09139-08016

$3.37

9

SWITCH ASSY, STOP LAMP

37740-12F00

$34.93

10

SPRING, STOP LAMP

09443-06046

$3.10

11

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$57.00

12

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

13

HORN ASSY

38500-10D10

Unavailable

14

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

15

KEY, BLANK | OPT

37146-33E00

$21.21
