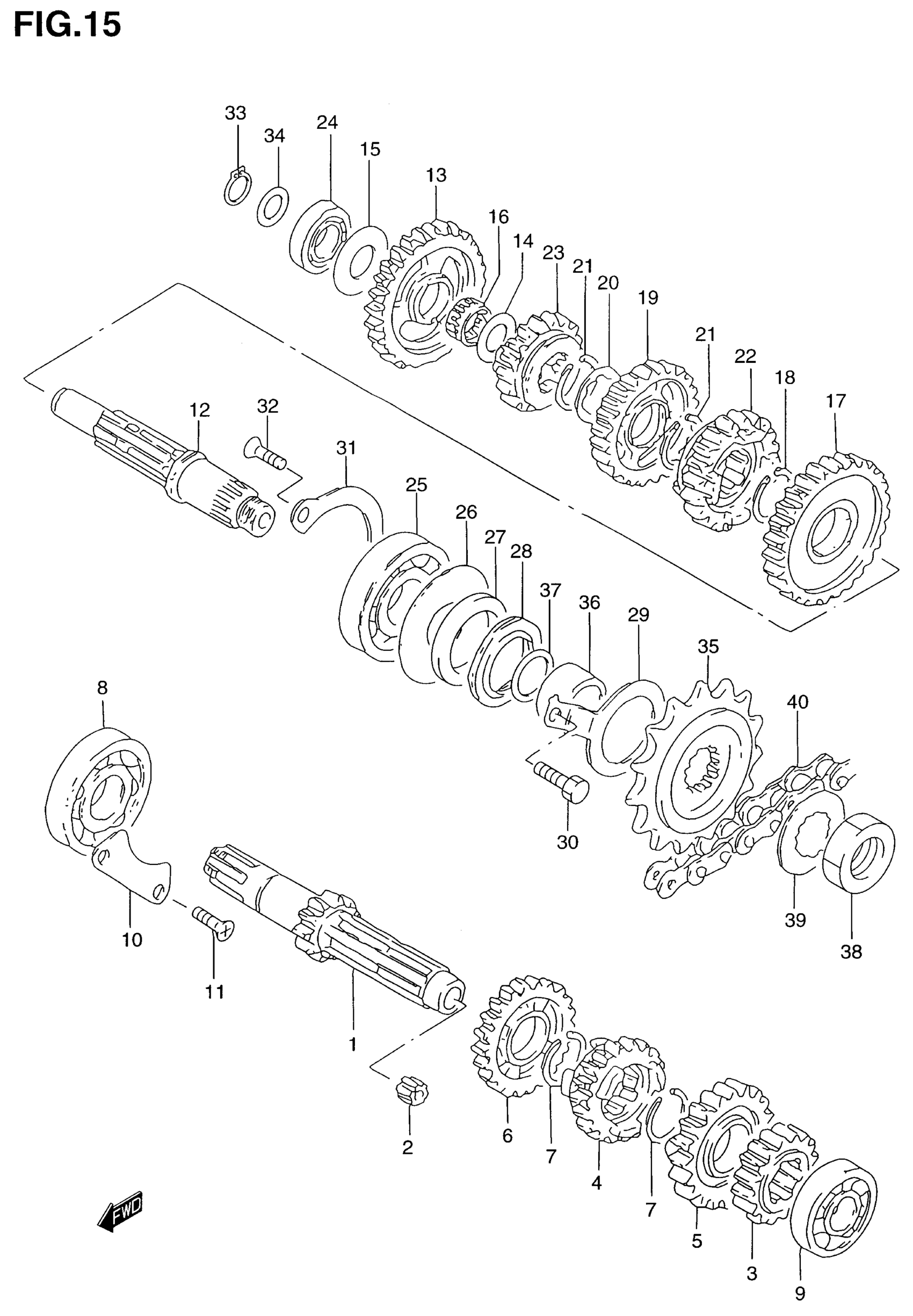

Suzuki GZ250 (2001) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:11) | Includes Item(s) 2 This part replaces 24120-38202.

24120-38203

Unavailable

2

BUSH

24125-38201

$6.38

3

GEAR, 2ND DRIVE (NT:16)

24221-32412

Unavailable

4

GEAR, 3RD DRIVE (NT:19)

24231-38201

Unavailable

5

GEAR, 4TH DRIVE (NT:20)

24241-32401

Unavailable

6

GEAR, 5TH DRIVE (NT:22) This part replaces 24251-32402.

24251-32420

Unavailable

7

CIRCLIP

09380-22006

$3.10

8

BEARING, RH (22X56X16)

09262-22028

$77.48

9

BEARING, LH (17X40X12) | MODEL X

09262-17027

$35.28

9

BEARING, CNTR SHAFT LH | MODEL Y/K1 This part replaces 09262-17045.

09262-17046

$38.05

10

RETAINER, BEARING

24741-38200

Unavailable

11

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

12

SHAFT, DRIVE

24130-38301

Unavailable

13

GEAR, 1ST DRIVEN (NT:29)

24311-32401

Unavailable

14

WASHER (17X28X1.0)

09181-17195

$3.07

15

THRUST WASHER

08211-17363

Unavailable

16

BEARING (17X21X9.8)

09263-17004

$12.03

17

GEAR, 2ND DRIVEN (NT:27)

24320-32411

Unavailable

18

CIRCLIP

09380-22006

$3.10

19

GEAR, 3RD DRIVEN (NT:24)

24330-38202

Unavailable

20

LOCK WASHER

09167-22011

$3.23

21

CIRCLIP

09380-22006

$3.10

22

GEAR, 4TH DRIVEN (NT:20)

24341-38201

Unavailable

23

GEAR, 5TH DRIVEN (NT:18)

24351-38201

Unavailable

24

BEARING (17X36X12)

09264-17001

$43.02

25

BEARING (22X56X16)

09262-22013

$73.18

26

WASHER (35X55X1)

09160-35007

$2.12

27

OIL SEAL (30X43X5) This part replaces 09282-30003.

09282-30004

$10.95

28

OIL SEAL (30X43X7) This part replaces 09283-30040.

09283-30041

$11.52

29

RETAINER, OIL SEAL

24751-38201

Unavailable

30

BOLT This part replaces 01500-06123.

01500-0612A

$1.78

31

RETAINER, BEARING

24752-32400

Unavailable

32

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

33

CIRCLIP This part replaces 08331-31176.

08331-31179

$1.90

34

WASHER (17X24X1.0)

09181-17139

$3.07

35

SPROCKET,ENGINE This part replaces 27510-25D00.

27510-25D01

$50.85

36

SPACER

27531-38300

$35.57

37

O RING (D:2.5,ID:21)

09280-21008

$1.91

38

NUT

09140-18008

$6.00

39

LOCK WASHER

09167-22012

$1.54

40

CHAIN ASSY,DRIV This part replaces 27600-14A10-110.

27600-14A20-110

$298.05
