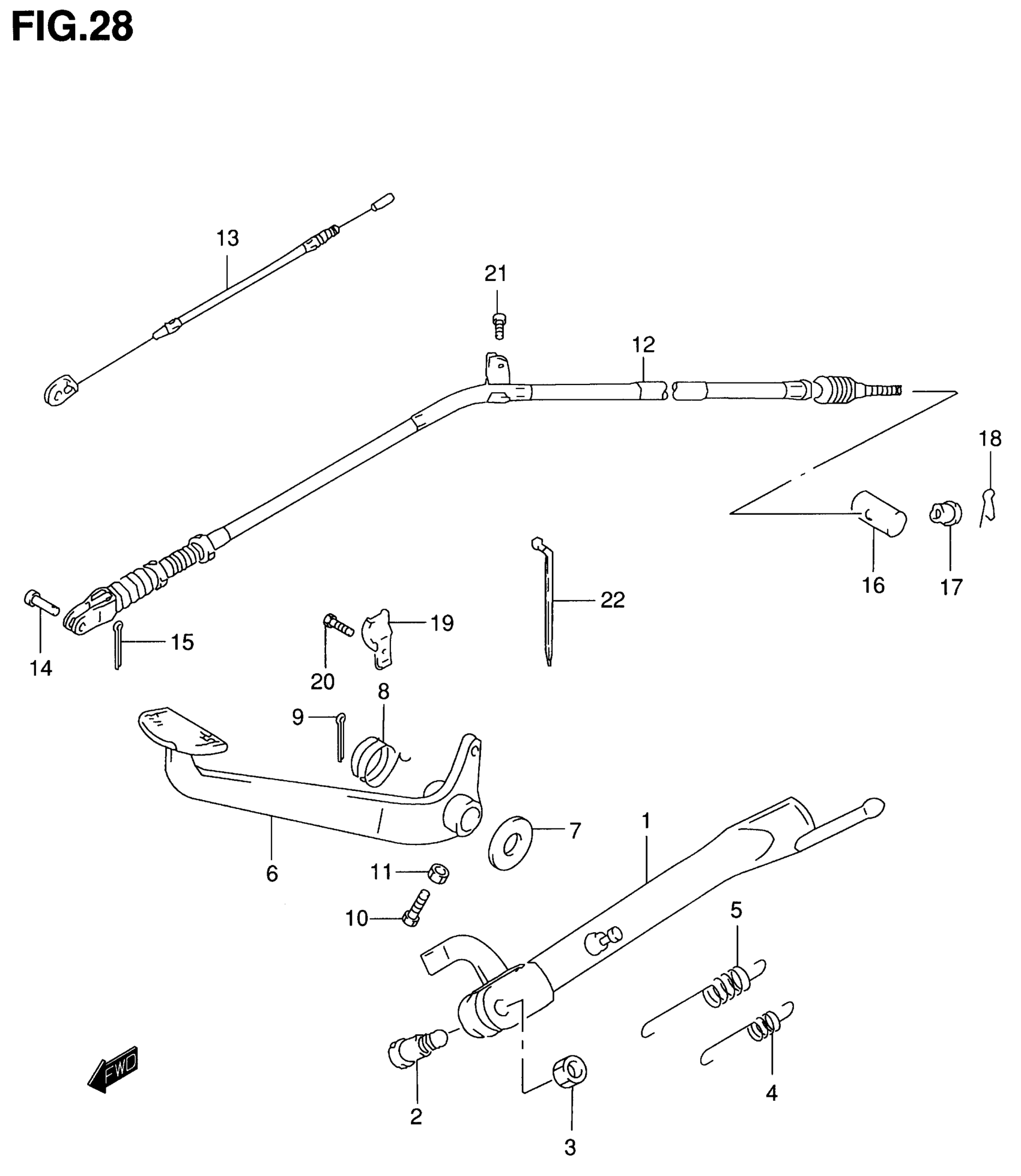

Find the part on the Stand - Rear Brake diagram for your 2001 Suzuki GZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki GZ250 Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-13F10

1
Out of stock

2

BOLT

09111-10027

1

$3.33

In stock

3

NUT

09159-10097

1

$5.50

In stock

4

SPRING, INNER

09443-14066

1

$5.36

In stock

5

SPRING, OUTER

09443-19012

1
Out of stock

6

PEDAL, BRAKE

43110-13F00

1
Out of stock

7

WASHER (16.5X22X1.0)

09160-16043

1

$2.30

In stock

8

SPRING

09448-31034

1

$6.61

In stock

9

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

10

BOLT

01500-06207

1

$2.48

In stock

11

.NUT

08310-00067

1

$1.82

In stock

12

CABLE, REAR BRAKE

58510-13F00

1

$100.46

In stock

13

1

$36.92

In stock

14

PIN

09200-05001

1
Out of stock

15

1

$1.31

In stock

16

PIN

09209-13018

1
Out of stock

17

.NUT This part replaces 09150-06014.

09150-06010

1
Out of stock

18

SNAP PIN

09385-06012

1
Out of stock

19

GUIDE, REAR BRAKE CABALE

58621-12F00

1
Out of stock

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

21

BOLT | MODEL X This part replaces 07130-06163.

07130-0616B

1
Out of stock

21

BOLT, CLAMP | MODEL Y/K1 This part replaces 01550-06123.

01550-0612A

1
Out of stock

22

CLAMP (L:145)

09407-14407

2
Out of stock
