2001 Suzuki GZ250 Front Master Cylinder Diagram

← All diagrams

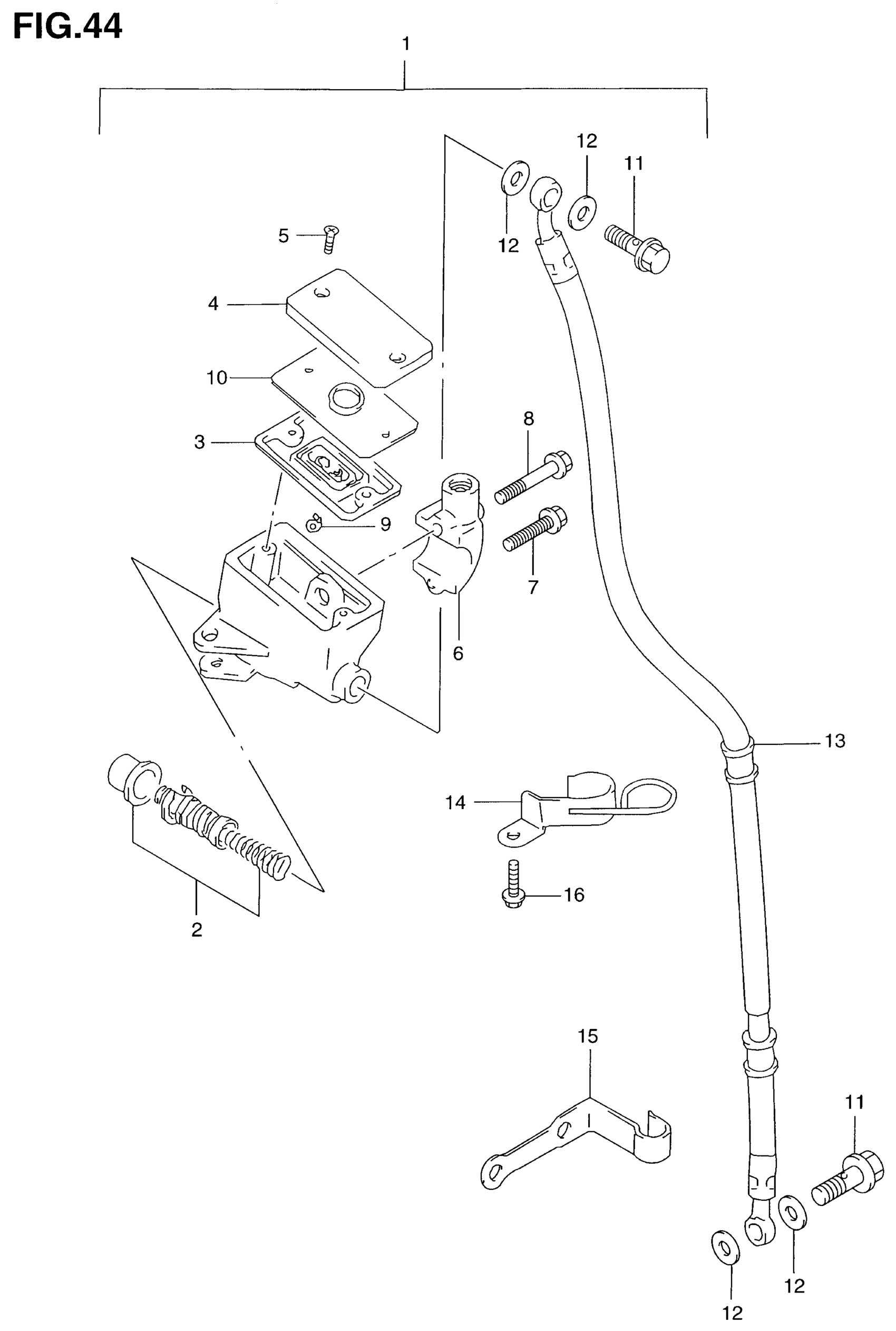

Find the part on the Front Master Cylinder diagram for your 2001 Suzuki GZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki GZ250 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-45C10

1
Out of stock

2

PISTON/CUP SET

59600-04810

1
Out of stock

3

DIAPHRAGM

59667-49460

1
Out of stock

4

CAP

59669-41C00

1
Out of stock

5

SCREW

69689-49300

2
Out of stock

6

HOLDER

59671-44300

1

$19.60

In stock

7

BOLT HOLDER SET

59675-19C00

1
Out of stock

8

BOLT (6X38)

59675-19C10

1
Out of stock

9

PROTECTOR

59664-48B00

1
Out of stock

10

PLATE

59668-41C00

1
Out of stock

11

2

$6.33

In stock

12

WASHER (10X15X1.5)

09161-10009

4
Out of stock

13

HOSE,FRONT BRAK This part replaces 59480-12F00.

59480-12F01

1
Out of stock

14

CLAMP, BRAKE HOSE

59260-12F00

1
Out of stock

15

CLAMP, BRAKE HOSE

59268-12F00

1
Out of stock

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock
