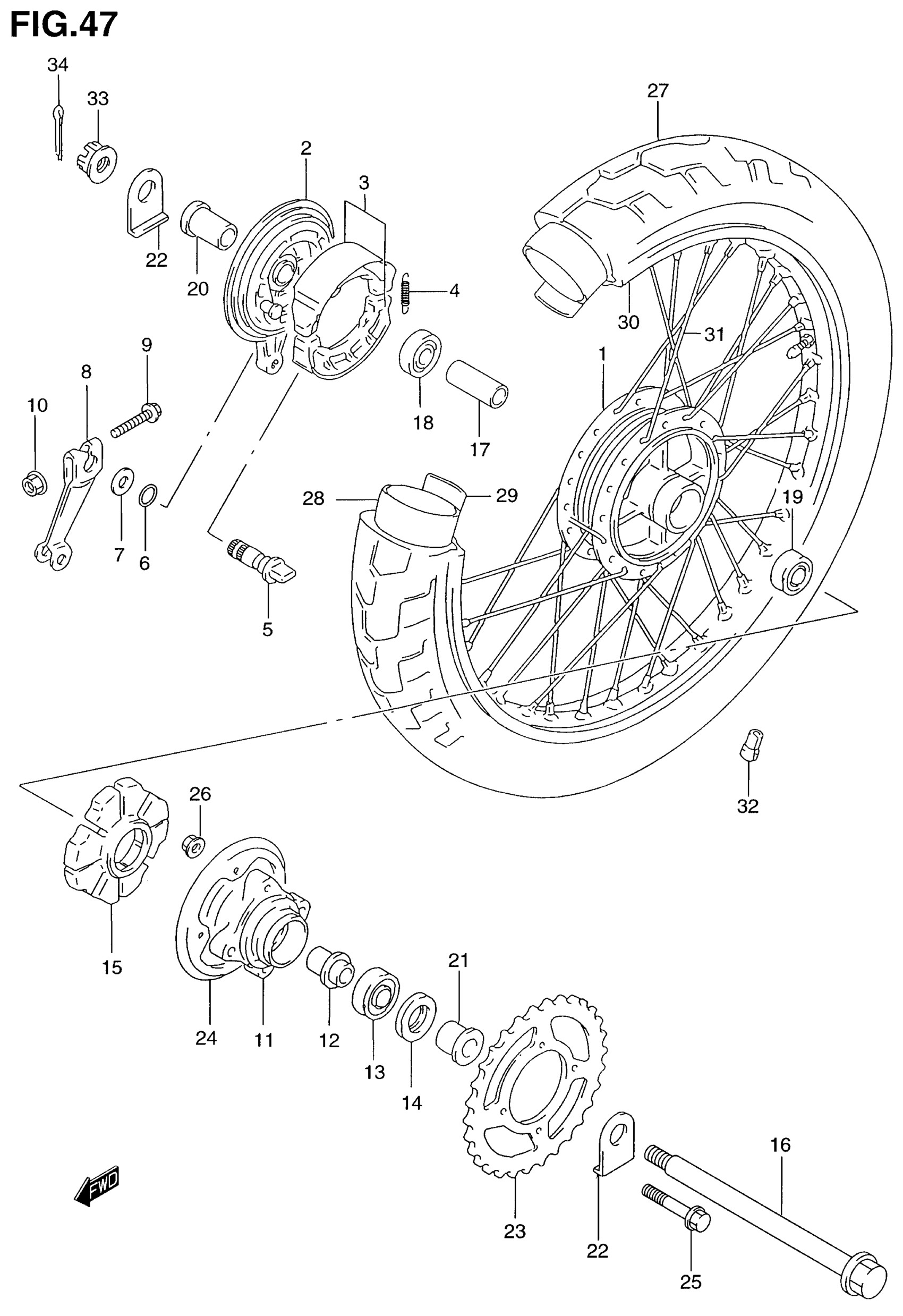

Suzuki GZ250 (2001) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-07005

Unavailable

2

PANEL, REAR BRAKE ANCHOR

64210-39115

$154.00

3

SHOE SET, BRAKE

54401-07820

$36.38

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE

54441-29305

$20.02

6

O RING

09280-14011

$4.77

7

WASHER

09160-14055

$2.39

8

LEVER, BRAKE CAM

64451-30501

$20.06

9

BOLT

01550-06407

$2.69

10

NUT

08316-10067

$2.25

11

DRUM, SPROCKET MOUNTING

64610-38300

Unavailable

12

RETAINER, MOUTING DRUM

64733-38300

Unavailable

13

BEARING, DRUM (20X47X14)

09262-20069

$23.28

14

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

15

SHOCK ABSORBER, HUB

64651-07001

$19.43

16

AXLE, REAR

64711-12F11

Unavailable

17

SPACER, BEARING (15.3X21.7X63)

09180-15011

$8.18

18

BEARING, WHEEL RH

08153-63027

$25.35

19

BEARIGG, WHEEL LH

08143-62027

$16.01

20

SPACER, AXLE RH

64741-12F00

Unavailable

21

SPACER, AXLE LH

64751-12F00

Unavailable

22

WASHER, GUIDE

64712-08301

Unavailable

23

SPROCKET, REAR (NT:41)

64511-38301

$62.65

24

GUIDE, CHAIN

64618-38300

Unavailable

25

BOLT (10X40)

09103-10044

$4.68

26

NUT

08319-31107

$2.73

27

TIRE, REAR (130/90-15) DUNLOP

65100-12F00

Unavailable

28

TUBE ASSY, WHEEL INNER

65200-12F00

Unavailable

29

PROTECTOR, INNER TUBE

65261-12F00

$8.18

30

RIM, REAR WHEEL (15XMT3.00)

65311-12F00

Unavailable

31

SPOKE SET, REAR WHEEL

65320-12F00

$70.53

32

BALANCER WHEEL (15G) This part replaces 55411-11000.

55411-26G00

$7.73

32

BALANCER WHEEL (30G) This part replaces 55412-11000.

55413-41F00

$7.50

33

NUT

09159-14018

Unavailable

34

PIN This part replaces 04111-30308.

04111-3030A

$1.49
