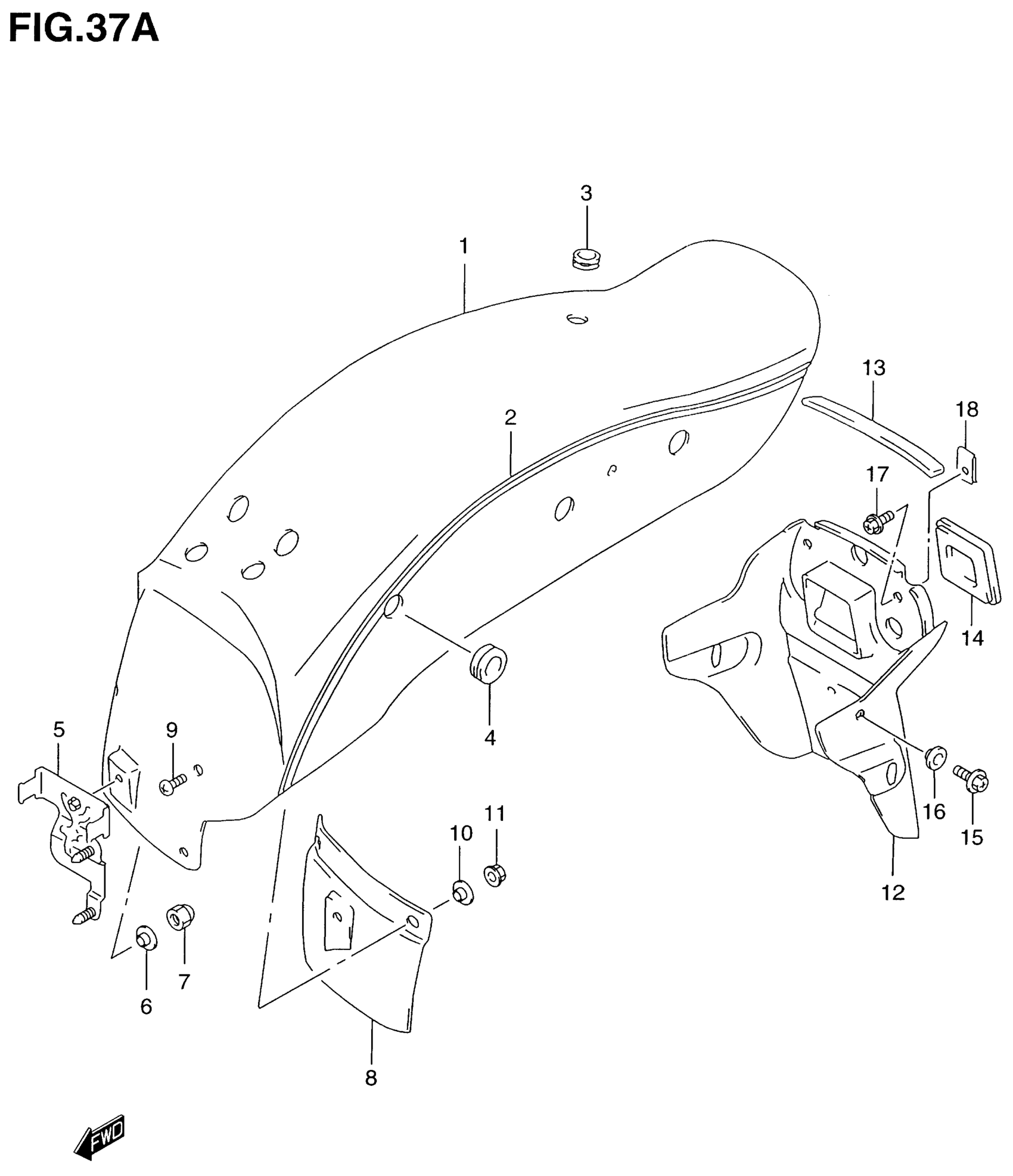

Suzuki GZ250 (2001) REAR FENDER (MODEL Y/K1) Diagram

#

Description
Price

1

FENDER, REAR (GREEN) | MODEL Y

63110-12F20-Y98

Unavailable

1

FENDER,REAR | MODEL Y This part replaces 63110-12F20-19A.

63111-12F00-NE2

$30.60

1

FENDER, REAR (BLACK) | MODEL Y E28

63110-12F20-Y7L

Unavailable

1

FENDER,REAR | MODEL K1 FOR 19A This part replaces 63110-12F20-2HX.

63111-12F00-NE2

$30.60

1

FENDER, REAR (GREEN) | MODEL K1 FOR Y7G This part replaces 63110-12F20-Y7G.

63111-12F00-Y7G

Unavailable

1

FENDER, REAR (BLACK) | MODEL K1 E28 FOR Y7L; Includes Item(s) 2 - 2

63110-12F20-Y9X

Unavailable

2

TAPE SET, REAR FENDER | MODEL Y FOR Y98

68170-12F20-N6D

Unavailable

2

TAPE SET, REAR FENDER | MODEL Y FOR 19A

68170-12F20-N6C

Unavailable

2

TAPE SET, REAR FENDER | MODEL Y E28 FOR Y7L

68170-12F20-N6F

Unavailable

2

TAPE SET, REAR FENDER | MODEL K1 FOR 2HX

68170-12F20-EB4

Unavailable

2

TAPE SET, REAR FENDER | MODEL K1 FOR Y7G

68170-12F20-EB5

Unavailable

2

TAPE SET, REAR FENDER | MODEL K1 E28 FOR Y9X

68170-12F20-EB6

Unavailable

3

CUSHION, UPPER

09320-13015

$2.85

4

CUSHION, SIDE

63118-12F00

Unavailable

5

BRACKET, REAR FENDER

63140-13F00

Unavailable

6

WASHER

09169-06071

$2.50

7

NUT This part replaces 08313-10063.

08313-1006A

$1.84

8

MUD GUARD, REAR FENDER This part replaces 63331-12F00.

63331C12F00J000

$8.47

9

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

10

WASHER

09169-06071

$2.50

11

NUT This part replaces 08316-10063.

08316-1006B

$2.50

12

EXTENSION, REAR FENDER This part replaces 63311-12F00.

63311C12F00J000

Unavailable

13

CUSHION

63312-48E00

Unavailable

14

CAP,RR FENDER E This part replaces 63191-48E00.

63191-48E01

$13.17

15

SCREW, REAR SIDE BRKT This part replaces 02162-06123.

02162-0612A

$2.05

16

WASHER

09169-06071

$2.50

17

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

18

NUT

47153-19C01

$7.95
