Description

Price

1

PUMP ASSY, ENGINE OIL

16400-38200

Unavailable

2

GEAR, OIL PUMP DRIVEN (NT:33)

16331-38200

$45.38

3

PIN (4X15.8)

09261-04009

$1.56

4

SHIM

09181-10158

$1.97

5

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

6

SCREW This part replaces 02112-06253.

02112-0625A

$1.80

7

STRAINER, ENGINE OIL

16520-37400

$8.12

8

SCREW This part replaces 02112-75123.

02112-7512A

$2.42

9

CAP, OIL STRAINER

16523-38200

$27.85

10

O RING (D:2.4,ID:82)

09280-82001

$5.18

11

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

12

PLUG

09247-14026

$3.76

13

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

14

FILTER, ENGINE OIL

16510-38240

$6.06

15

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

16

CAP, ENGINE OIL FILTER

16512-38220

$35.77

17

.O RING (D:2.4,ID:73)

09280-72001

$4.94

18

SPRING

09440-21006

$2.03

19

STUD BOLT This part replaces 01421-06128.

09108-06128

$2.30

20

NUT

08313-10067

$1.84

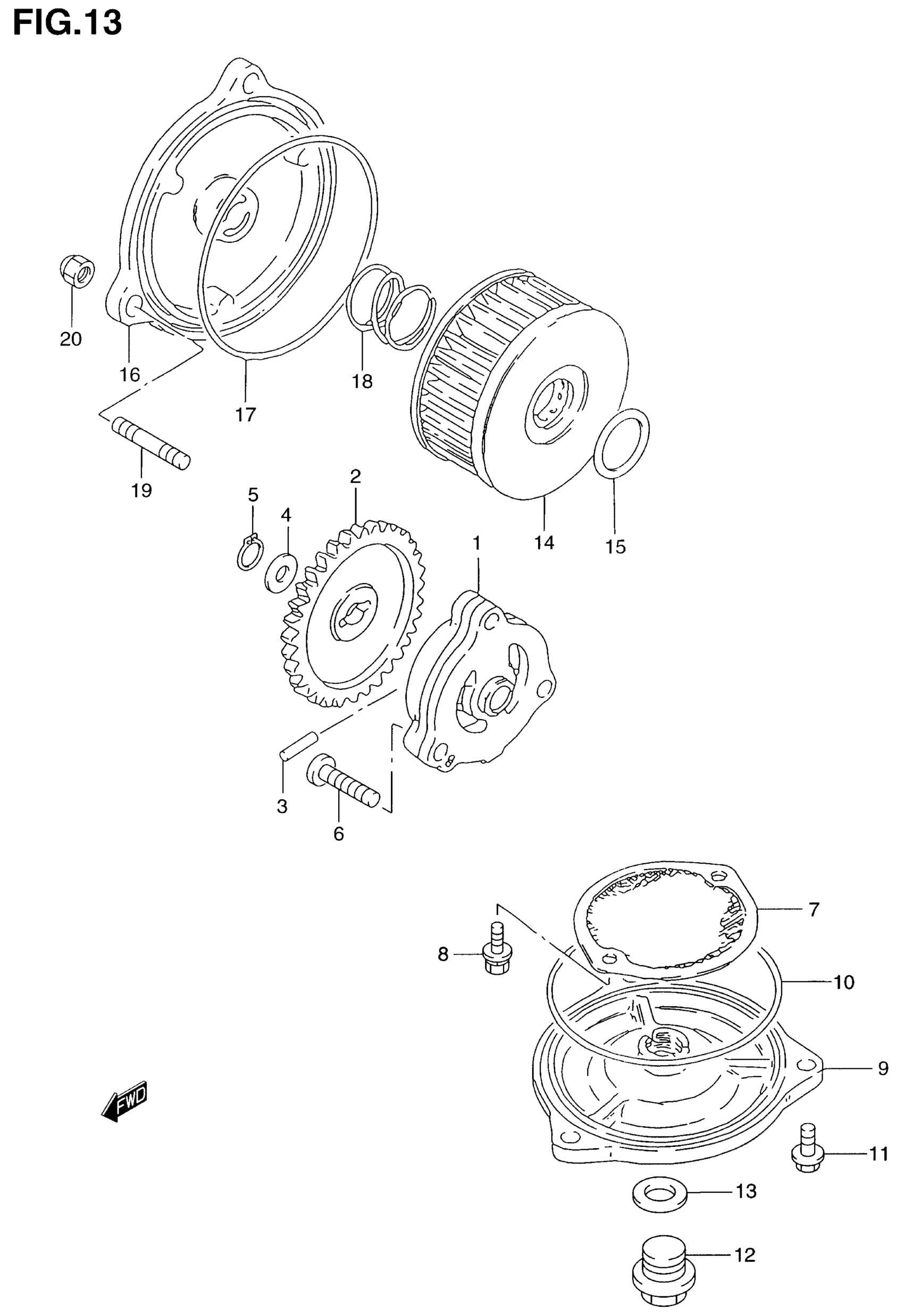

Suzuki GZ250 (2001) OIL PUMP Diagram
