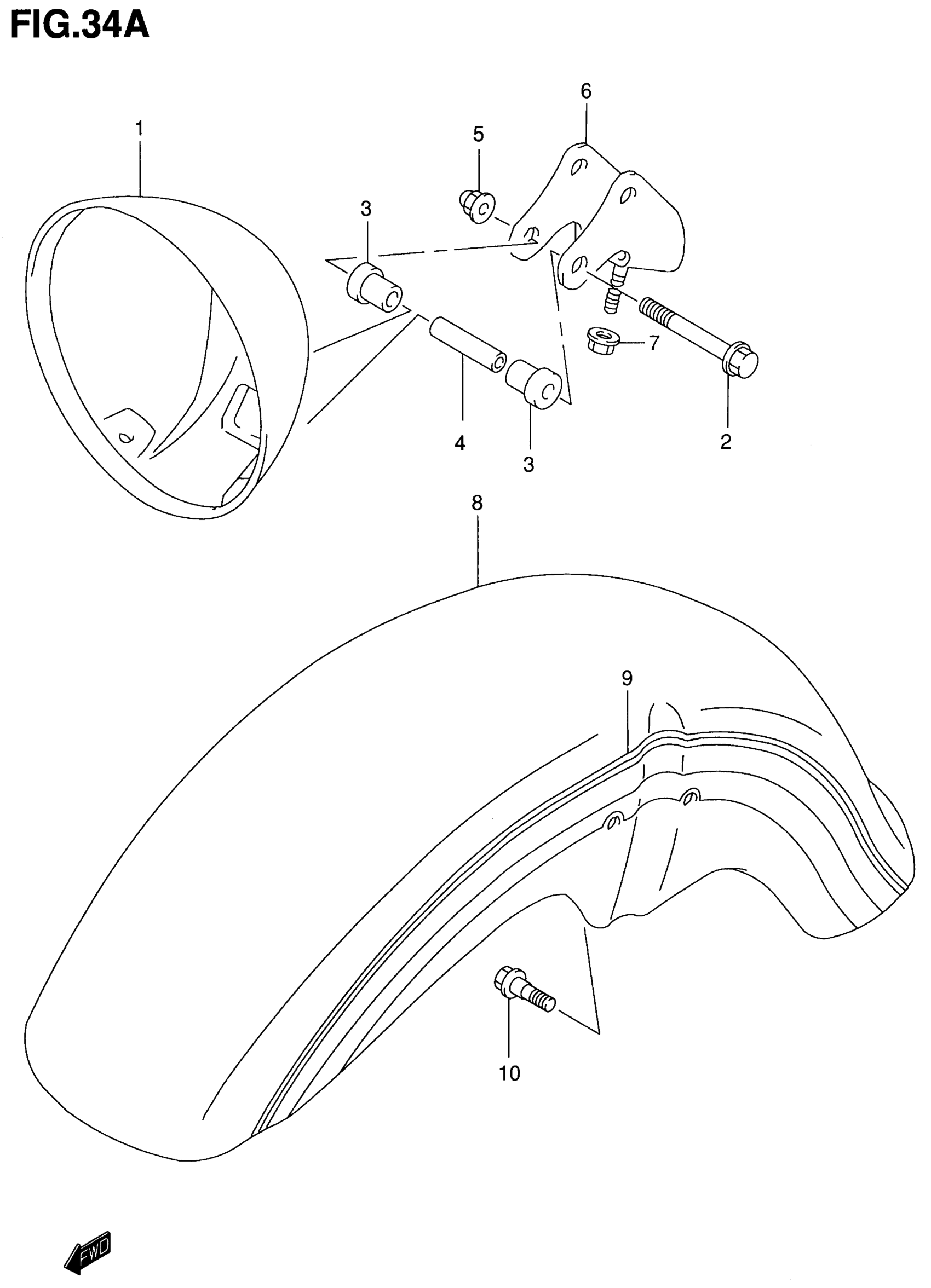

Suzuki GZ250 (2001) HEADLAMP HOUSING (MODEL Y/K1) Diagram

#

Description
Price

1

HOUSING, HEADLAMP

51811-12F00

$213.45

2

BOLT

01547-06507

$2.41

3

CUSHION, HEADLAMP HOUSING

51827-12F00

Unavailable

4

SPACER

09180-06279

$4.43

5

NUT

08313-20067

$2.42

6

BRACKET, HEADLAMP HOUSING

51850-12F01

$70.30

7

NUT This part replaces 08319-31103.

08319-3110A

$2.73

8

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 53110-12F30-Y98.

53111-12F01-Y98

Unavailable

8

FENDER, FRONT (RED) | MODEL Y This part replaces 53110-12F30-19A.

53111-12F01-19A

Unavailable

8

FENDER, FRONT (BLACK) | MODEL Y E28

53110-12F30-Y7L

Unavailable

8

FENDER, FRONT (RED) | MODEL K1 FOR 19A This part replaces 53110-12F30-2HX.

53111-12F01-19A

Unavailable

8

FENDER, FRONT (GREEN) | MODEL K1 FOR Y7G This part replaces 53110-12F30-Y7G.

53111-12F01-Y7G

Unavailable

8

FENDER, FRONT (BLACK) | MODEL K1 E28 FOR Y7L; Includes Item(s) 9 - 9

53110-12F30-Y9X

Unavailable

9

TAPE SET, FRONT FENDER | MODEL Y FOR Y98

68150-12F20-N6D

Unavailable

9

TAPE SET, FRONT FENDER | MODEL Y FOR 19A

68150-12F20-N6C

Unavailable

9

TAPE SET, FRONT FENDER | MODEL Y E28 FOR Y7L

68150-12F20-N6F

Unavailable

9

TAPE SET, FRONT FENDER | MODEL K1 FOR 2HX

68150-12F20-EB4

Unavailable

9

TAPE SET, FRONT FENDER | MODEL K1 FOR Y7G

68150-12F20-EB5

Unavailable

9

TAPE SET, FRONT FENDER | MODEL K1 E28 FOR Y7L

68150-12F20-EB6

Unavailable

10

BOLT

09111-06066

$2.62
