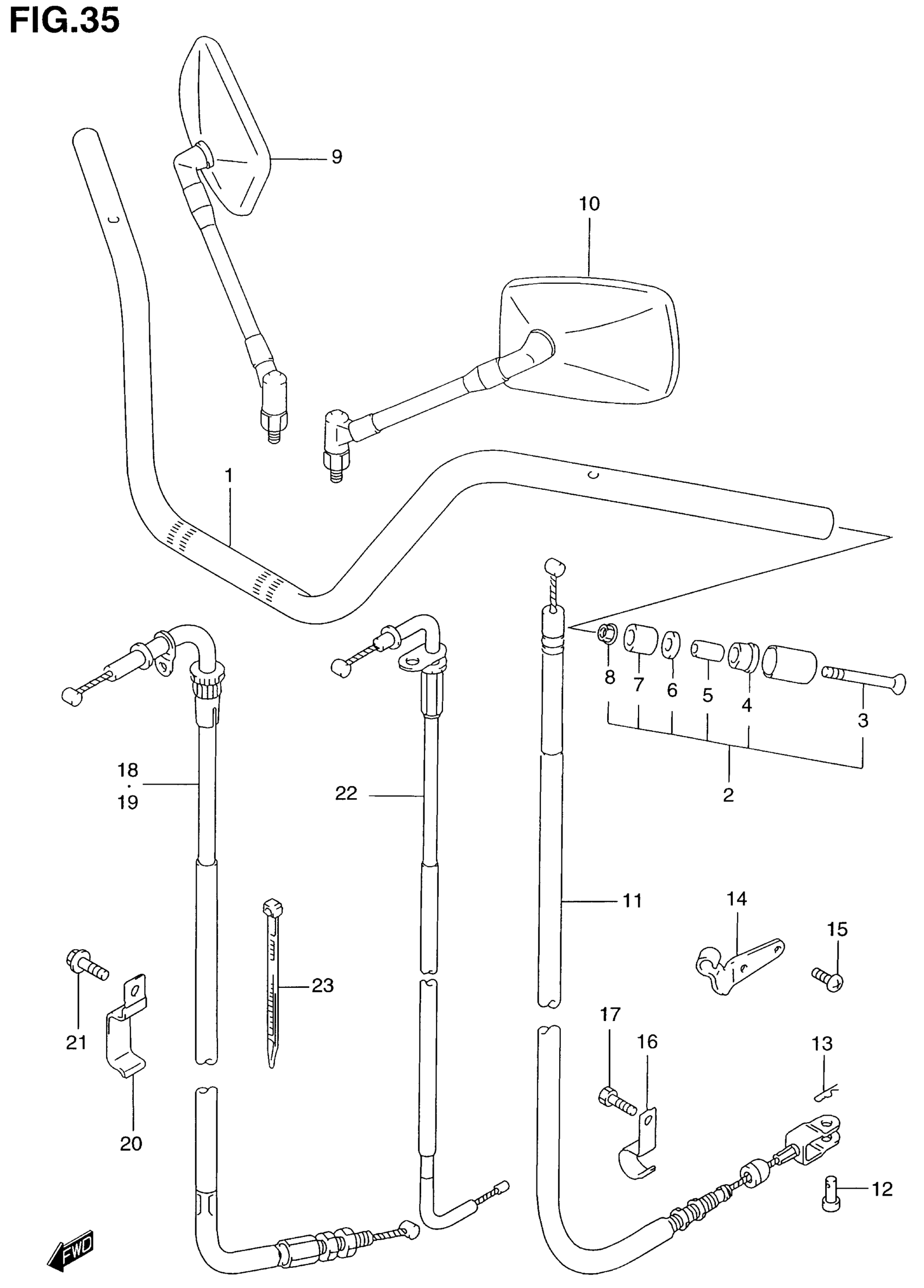

Suzuki GZ250 (2001) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | MODEL X/Y

56111-12F00

Unavailable

1

HANDLEBAR | MODEL K1 This part replaces 56111-12F10.

56111-12F11

$280.09

2

BALANCER SET,HA | Includes Item(s) 3 - 8 This part replaces 56200-12870.

56200-12871

$44.02

3

SCREW (6X125)

09127-06021

$2.76

4

EXPANDER, HANDLE BALANCER

56272-26D10

$7.85

5

SPACER, EXPANDER

56276-17D00

$5.07

6

WASHER (6.5X14X2.0)

09160-06126

$1.91

7

EXPANDER, HANDLE BALANCER

56272-44500

$4.42

8

NUT

09159-06024

$2.11

9

MIRROR ASSY,REA This part replaces 56500-03F20.

56500-03F21

Unavailable

10

MIRROR ASSY,REA This part replaces 56600-03F20.

56600-03F21

Unavailable

11

CABLE ASSY, CLUTCH

58200-13F00

$19.41

12

PIN (L:13)

09200-06004

$2.20

13

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

14

STOPPER, CLUTCH CABLE

58634-25D00

Unavailable

15

SCREW | MODEL X

02112-06127

$1.84

15

BOLT | MODEL Y/K1

01500-06167

$1.97

16

CLAMP, CLUTCH CABLE

58626-37400

Unavailable

17

STOPPER, CL RLSE CAM SHAFT This part replaces 02112-16103.

02142-0610A

$1.49

18

CABLE ASSY, THROTTLE NO.1

58300-13F00

$33.32

19

CABLE ASSY, THROTTLE NO.2

58300-13F10

$33.32

20

CLAMP This part replaces 09403-10307.

09403-10328

$1.98

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

22

CABLE, STARTER

58410-13F00

$32.56

23

CLAMP (L:125)

09407-14403

$2.26

23

CLAMP (L:235)

09407-25401

$4.66
