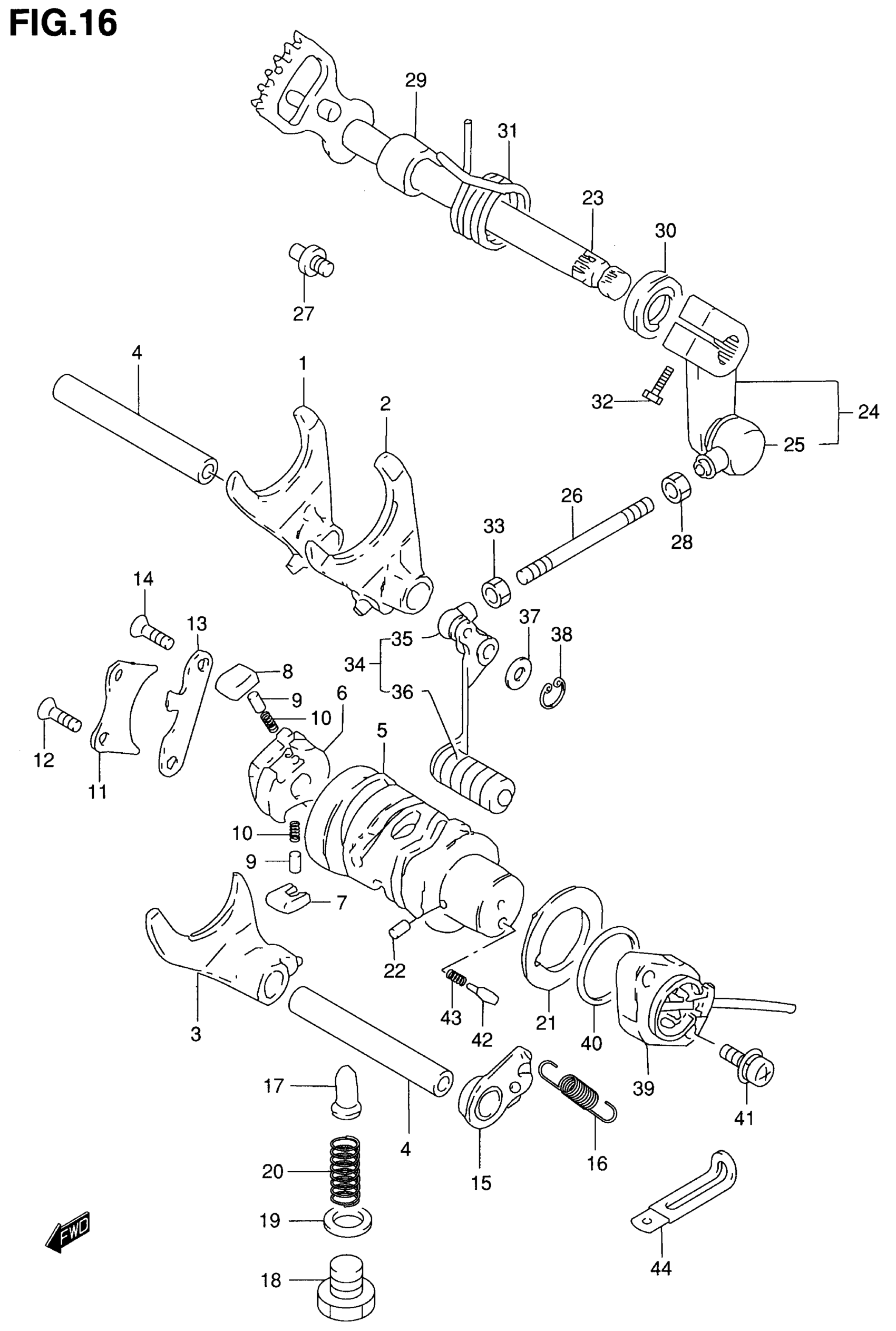

Suzuki GZ250 (2001) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-32402

Unavailable

2

FORK, GEAR SHIFT NO.2

25221-32403

Unavailable

3

FORK, GEAR SHIFT NO.3

25231-13F00

Unavailable

4

SHAFT, GEAR SHIFT FORK

25411-14331

$23.07

5

CAM, GEAR SHIFT This part replaces 25310-13F00.

25310-13F10

Unavailable

6

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

9

ROLLER (5X8)

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER, GEAR SHIFT POLE

25331-38201

Unavailable

12

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

13

GUIDE, GEAR SHIFT CAM

25341-38200

Unavailable

14

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

15

STOPPER, GEAR SHIFT CAM

25350-34000

$15.42

16

SPRING

09443-08026

$2.64

17

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

18

PLUG This part replaces 09247-14012.

09247-14026

$3.76

19

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

20

SPRING

09440-11026

$4.60

21

PLATE, GEAR SHIFT CAM STOPPER

25381-13F00

$20.45

22

PIN

04221-04069

$2.12

23

SHAFT, GEAR SHIFT

25510-38200

$102.17

24

ARM,GEAR SHIFT | Includes Item(s) 25 This part replaces 25520-22A00.

25520-22A01

$37.89

25

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

26

ROD, GEAR SHIFT LINK

25525-13F00

$14.37

27

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

28

NUT

09140-06011

$1.49

29

SPACER (12X20X15.3)

09180-12068

$3.16

30

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

31

SPRING

09444-26004

$4.45

32

BOLT

01500-06207

$2.28

33

.NUT

08310-00067

$2.13

34

LEVER ASSY,GEAR | Includes Item(s) 35 - 36 This part replaces 25600-13F00.

25600-13F01

$67.33

35

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

36

RUBBER, GEAR SHIFT PEDAL

25652-20C00

$5.44

37

WASHER (12.5X20X1)

09160-12011

$1.54

38

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

39

BASE ASSY, TERMINAL

37720-47D00

$114.08

40

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

41

SCREW This part replaces 02112-75203.

02112-7520A

$2.90

42

CONTACT

09209-05011

$2.20

43

SPRING

09440-04010

$1.54

44

CLAMP This part replaces 09404-06432.

09404-06039

$1.74
