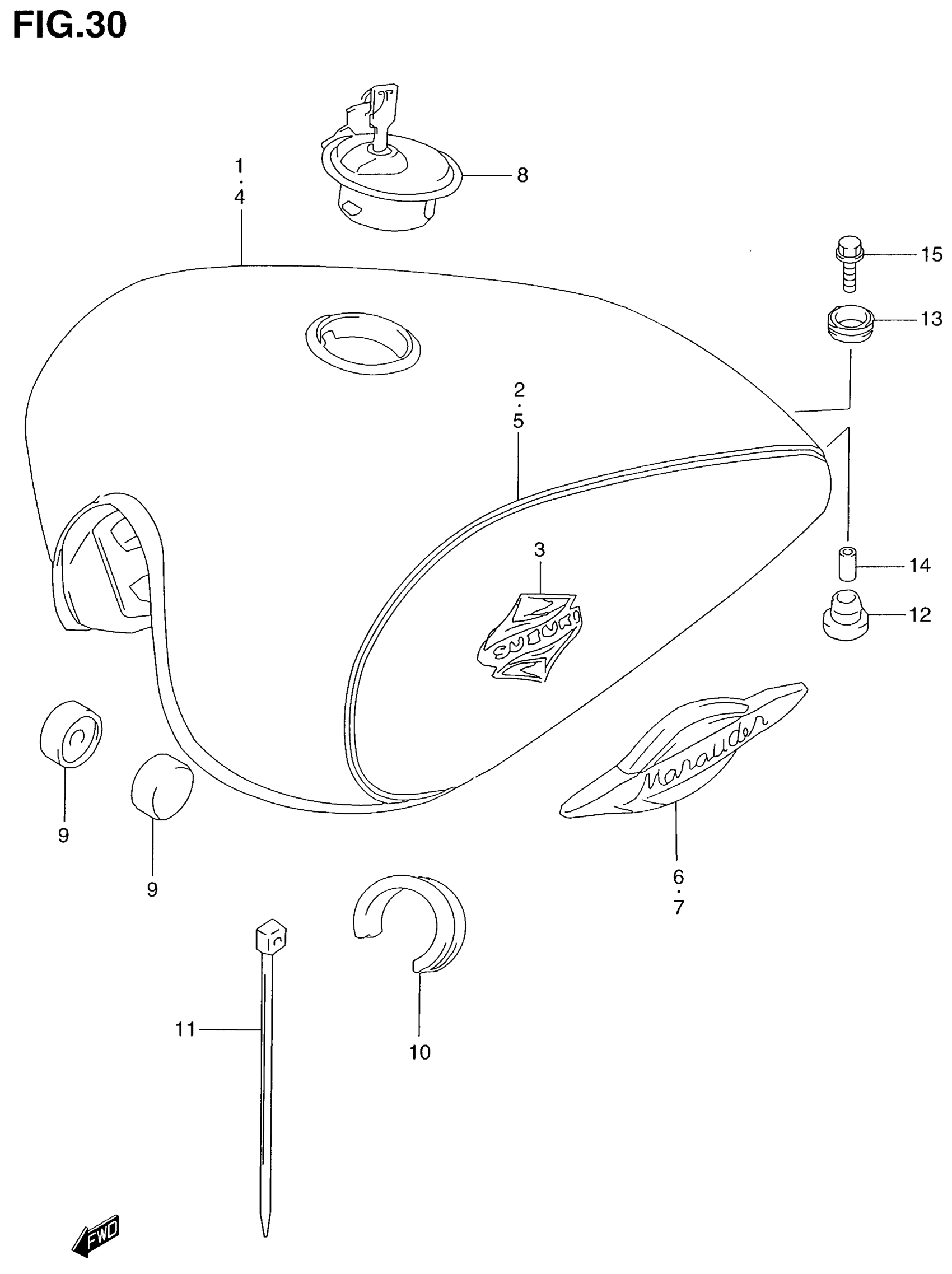

Suzuki GZ250 (2001) FUEL TANK (MODEL X) Diagram

#

Description
Price

1

TANK ASSY,FUEL This part replaces 44100-12F20-Y98.

44100-12F21-Y98

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 44100-12F20-Y0W.

44100-12F21-Y0W

Unavailable

1

TANK ASSY,FUEL | E33 This part replaces 44100-12F10-Y98.

44100-12F11-Y98

Unavailable

1

TANK ASSY,FUEL | E33; Includes Item(s) 2 - 3 This part replaces 44100-12F10-Y0W.

44100-12F11-Y0W

Unavailable

2

TAPE SET, FUEL TANK | FOR Y98

68110-12F00-L3V

Unavailable

2

TAPE SET, FUEL TANK | FOR Y0W

68110-12F00-L3W

Unavailable

3

EMBLEM | FOR Y98

68111-38A21-M7D

Unavailable

3

EMBLEM | FOR Y0W

68111-38A21-M7E

Unavailable

4

TANK ASSY,.FUEL (GREEN) | E28

44100-12F00-Y98

Unavailable

4

TANK ASSY, FUEL (ORANGE) | E28; Includes Item(s) 5 - 5

44100-12F00-Y0W

Unavailable

5

TAPE SET, FUEL TANK | FOR Y98

68110-12F00-L3V

Unavailable

5

TAPE SET, FUEL TANK | FOR Y0W

68110-12F00-L3W

Unavailable

6

EMBLEM, FUEL TANK RH | E28

68111-12F00

Unavailable

7

EMBLEM, FUEL TANK LH | E28

68121-12F00

Unavailable

8

CAP SET,FUEL TA This part replaces 44200-12870.

44200-12871

$176.53

8

CAP SET,FUEL TA | E33 This part replaces 44200-38850.

44200-38852

$94.71

9

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

10

CUSHION,FUEL TA This part replaces 44541-03F00.

44541-03F01

$12.80

11

CLAMP (L:248)

09407-25402

$4.64

12

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

13

CUSHION, FUEL TANK REAR

44512-42E00

$3.43

14

SPACER (6.5X9X18)

09180-06271

$2.35

15

BOLT This part replaces 01550-06303.

01550-0630A

$2.32
