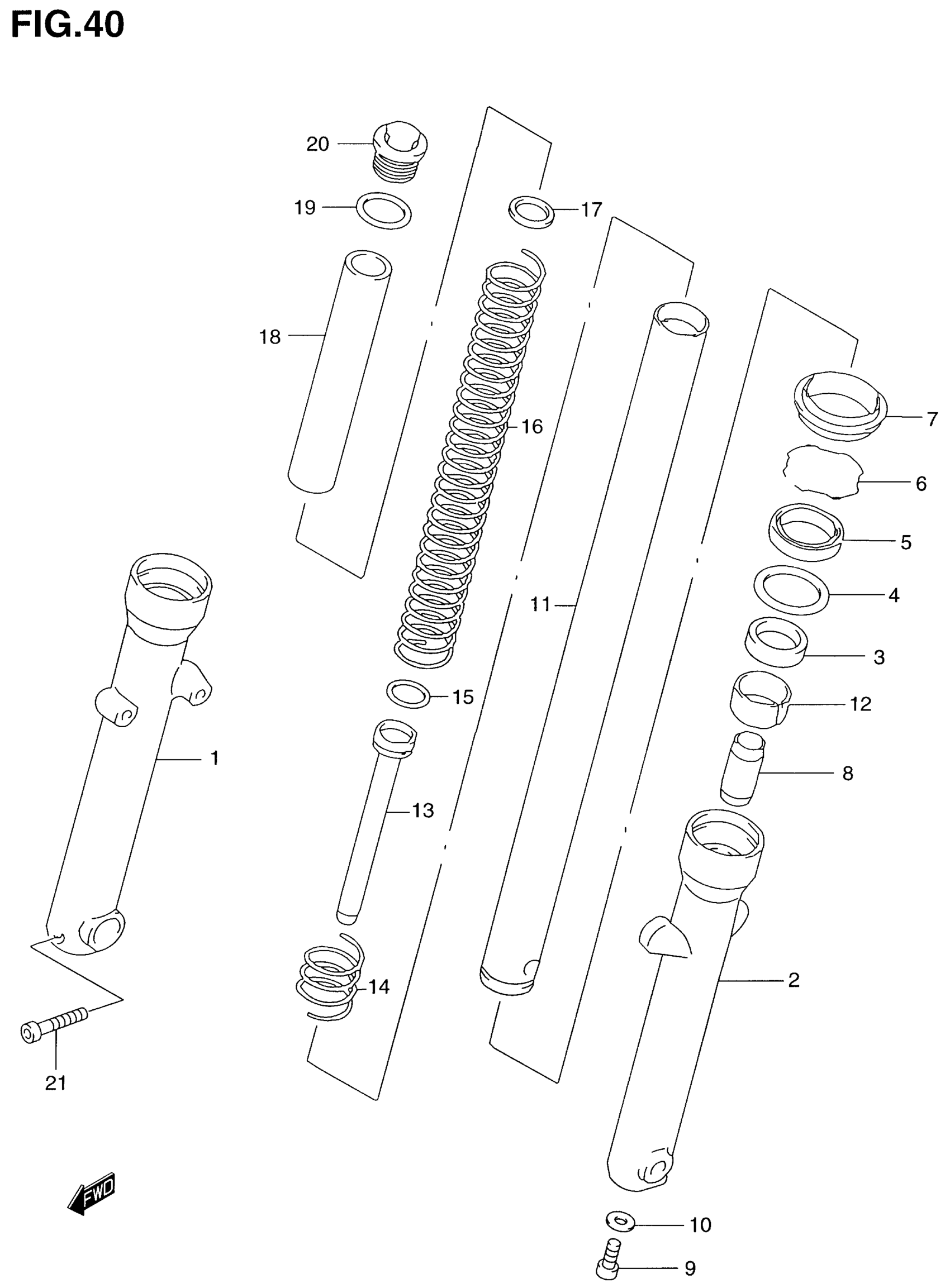

Suzuki GZ250 (2001) FRONT FORK DAMPER Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-12F00

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 20

51104-12F00

Unavailable

1

TUBE, OUTER RH

51130-12F00

Unavailable

2

TUBE, OUTER LH

51140-12F00

Unavailable

3

BUSH, GUIDE This part replaces 51152-12F00.

51167-03B30

$20.80

4

SPACER, SEAL This part replaces 51168-25D00.

51168-38A00

$6.72

5

SEAL, OIL This part replaces 51153-25D00.

51153-03B30

$18.51

6

RING, STOPPER This part replaces 51556-25D00.

51156-03B30

$6.17

7

SEAL, DUST

51173-25D00

$19.35

8

PIECE, OIL LOCK

51195-25D00

$23.47

9

.BOLT, CENTER This part replaces 51147-42AA0.

51147-06F10

$5.98

10

GASKET

51148-36011

$3.56

11

TUBE, INNER

51110-12F00

Unavailable

12

BUSH, SLIDE This part replaces 51121-25D00.

51121-03B30

$18.75

13

PIPE, SEAT

51146-12F00

Unavailable

14

SPRING, REBOUND

51177-25D00

$8.17

15

RING, PISTON

51196-25D00

$9.17

16

SPRING, FRONT

51171-12F00

Unavailable

17

JOINT, SPRING

51192-25D00

Unavailable

18

COLLAR, SPRING

51176-25D00

$11.65

19

O RING

51117-25D00

$4.46

20

BOLT, FORK

51189-12F00

Unavailable

21

BOLT, RH (8X35)

07130-08357

$3.18
