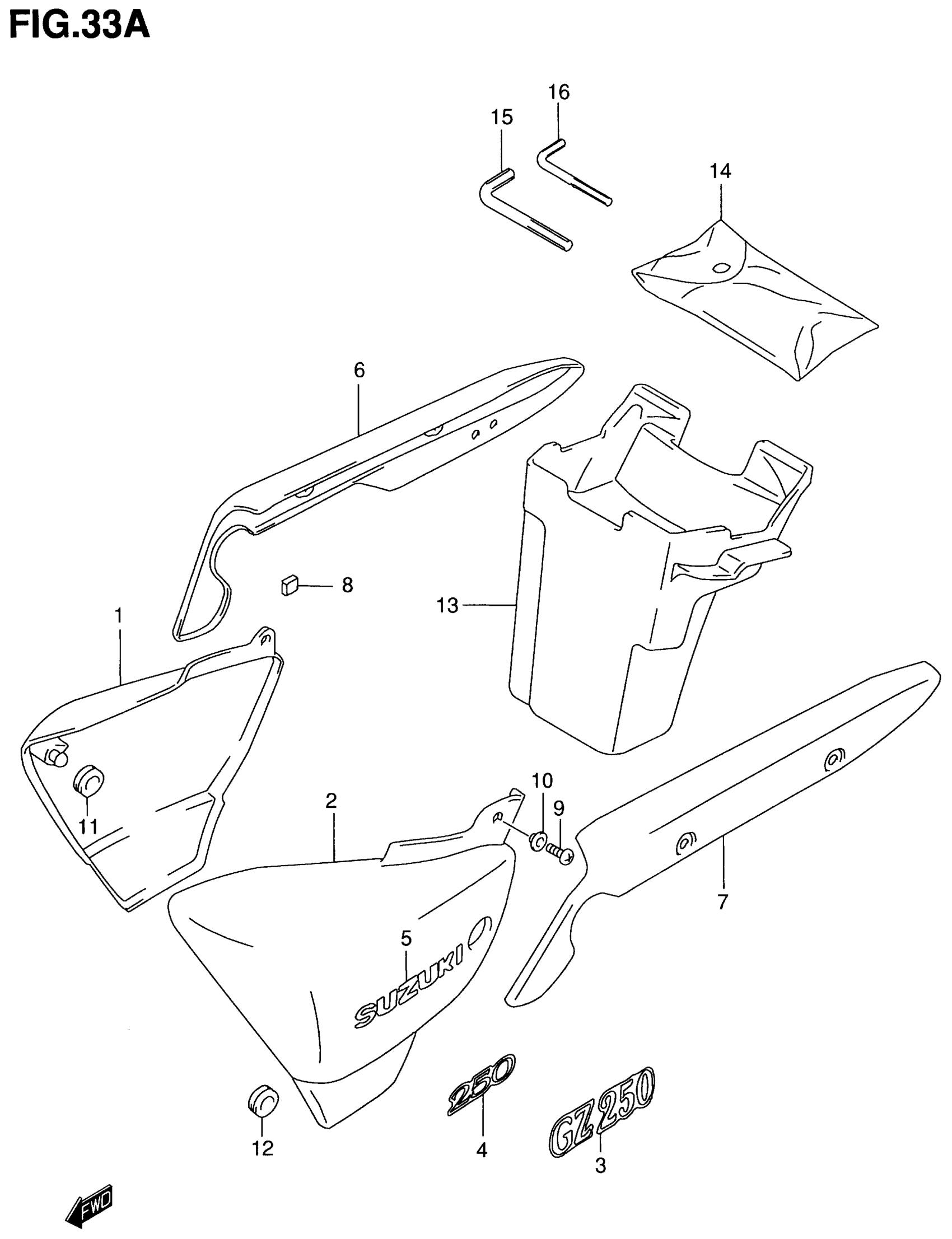

Suzuki GZ250 (2001) FRAME COVER (MODEL Y/K1) Diagram

#

Description
Price

1

COVER, FRAME RH (GREEN) | MODEL Y

47111-12F00-Y98

Unavailable

1

COVER, FRAME,R This part replaces 47111-12F00-19A.

47111-0AE10-NE2

Unavailable

1

COVER, FRAME RH (BLACK) | E28

47111-12F00-Y7L

Unavailable

1

COVER, FRAME,R | MODEL K1 This part replaces 47111-12F00-Y7G.

47111-0AE10-NE2

Unavailable

2

COVER, FRAME LH (GREEN) | MODEL Y

47211-12F00-Y98

Unavailable

2

COVER,FRAME,L(R This part replaces 47211-12F00-19A.

47211-0AE10-NE2

$17.68

2

COVER,FRAME,L(R | E28 This part replaces 47211-12F00-Y7L.

47211-0AE10-NE2

$17.68

2

COVER,FRAME,L(R | MODEL K1 This part replaces 47211-12F00-Y7G.

47211-0AE10-NE2

$17.68

3

EMBLEM, FRAME COVER | MODEL Y FOR Y98

68131-12F20-M7F

Unavailable

3

EMBLEM, FRAME COVER | MODEL Y FOR 19A

68131-12F20-N9A

Unavailable

3

EMBLEM, FRAME COVER | MODEL K1 FOR 19A

68131-12F20-EA9

Unavailable

3

EMBLEM, FRAME COVER | MODEL K1 FOR Y7G

68131-12F20-EB1

Unavailable

4

EMBLEM, FRAME COVER | MODEL Y E28 FOR Y7L

68131-12F30-K1B

Unavailable

4

EMBLEM, FRAME COVER | MODEL Y E28 FOR 19A

68131-12F30-N8R

Unavailable

4

EMBLEM, FRAME COVER | MODEL K1 E28 FOR 19A,Y7G

68131-12F30-EA7

Unavailable

4

EMBLEM, FRAME COVER | MODEL K1 E28 FOR Y7L

68131-12F30-EA8

Unavailable

5

EMBLEM, SUZUKI | E28

68131-12F00

Unavailable

6

COVER, FRAME REAR RH

47121-12F00

Unavailable

7

COVER, FRAME REAR LH This part replaces 47221-12F00.

47221-12FA0

Unavailable

8

CUSHION (80X20X10) This part replaces 53123-33E00.

33652-01D10

$5.17

9

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

10

WASHER

09169-06071

$2.50

11

CUSHION

09320-08018

$3.04

12

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

13

BODY, LUGGAGE BOX This part replaces 92211-12F00.

92211C12F01J000

Unavailable

14

TOOL ASSY This part replaces 09800-21022.

09800-21104

$34.10

15

SPANNER 6,HEXAGON

09816-00050

$5.03

16

SPANNER 4,HEXAGON

09816-00103

$6.17
