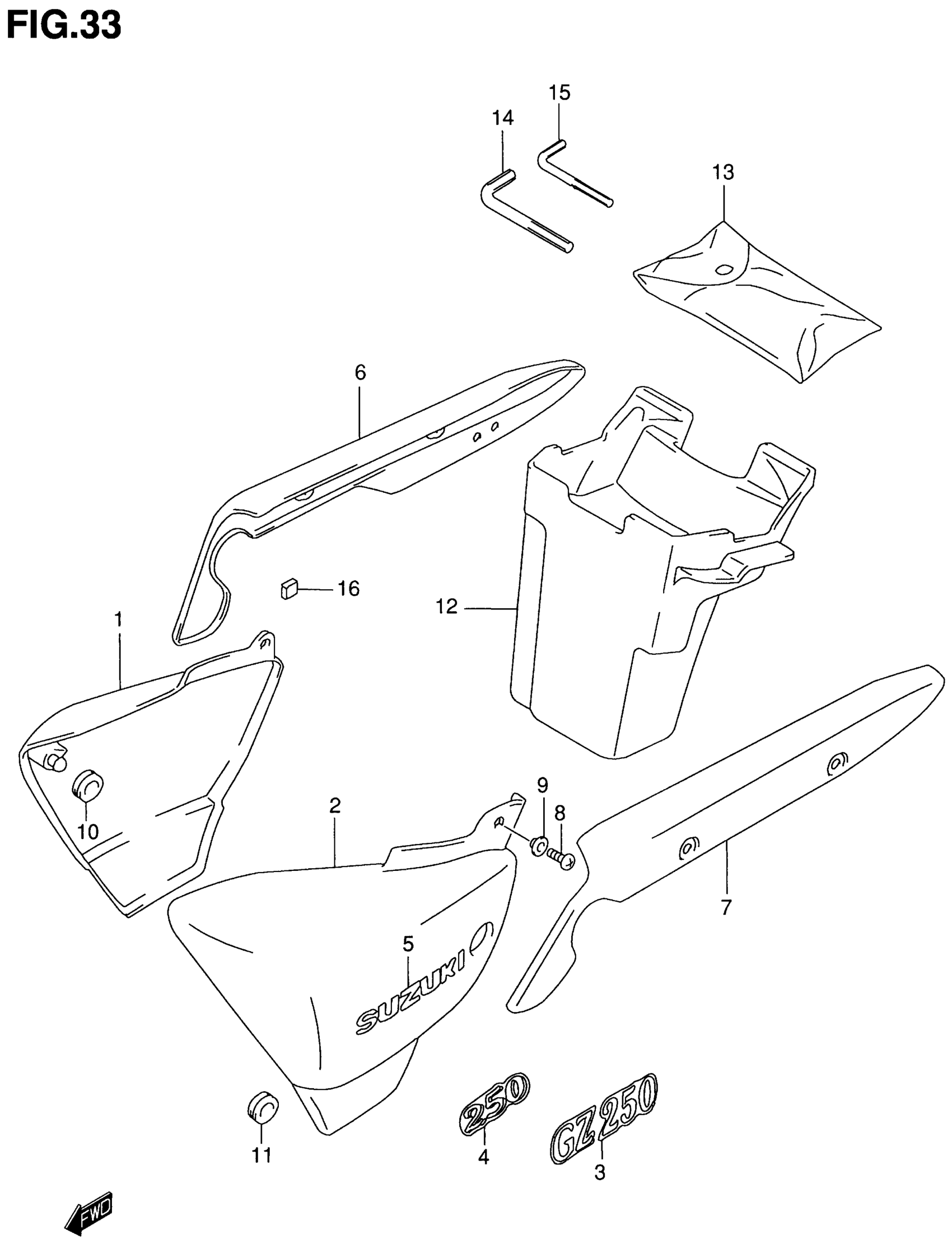

Suzuki GZ250 (2001) FRAME COVER (MODEL X) Diagram

#

Description
Price

1

COVER, FRAME RH (GREEN)

47111-12F00-Y98

Unavailable

1

COVER, FRAME RH (ORANGE)

47111-12F00-Y0W

Unavailable

2

COVER, FRAME LH (GREEN)

47211-12F00-Y98

Unavailable

2

COVER, FRAME LH (ORANGE)

47211-12F00-Y0W

Unavailable

3

EMBLEM, FRAME COVER

68131-12F20-M7F

Unavailable

3

EMBLEM, FRAME COVER

68131-12F20-M7E

Unavailable

4

EMBLEM, FRAME COVER | E28 FOR Y98

68131-12F10-M3B

Unavailable

4

EMBLEM, FRAME COVER | E28 FOR Y0W

68131-12F10-M3C

Unavailable

5

EMBLEM, SUZUKI | E28

68131-12F00

Unavailable

6

COVER, FRAME REAR RH

47121-12F00

Unavailable

7

COVER, FRAME REAR LH This part replaces 47221-12F00.

47221-12FA0

Unavailable

8

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

9

WASHER

09169-06071

$2.50

10

CUSHION

09320-08018

$3.04

11

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

12

BODY, LUGGAGE BOX This part replaces 92211-12F00.

92211C12F01J000

Unavailable

13

TOOL ASSY This part replaces 09800-21022.

09800-21104

$34.10

14

SPANNER 6,HEXAGON

09816-00050

$5.03

15

SPANNER 4,HEXAGON

09816-00103

$6.17

16

CUSHION (80X20X10) This part replaces 53123-33E00.

33652-01D10

$5.17
