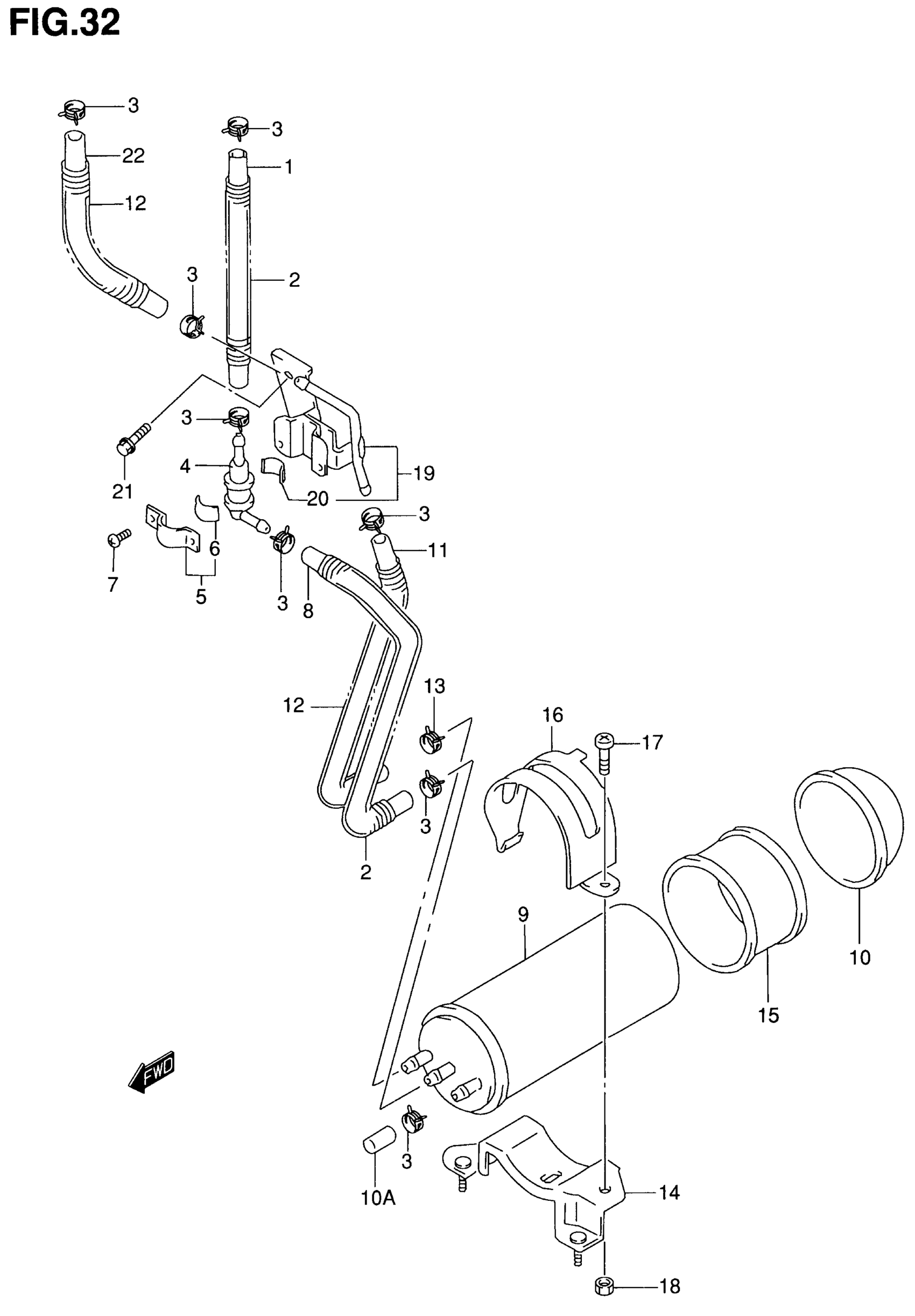

Suzuki GZ250 (2001) EVAPO SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE | L:600?240

09355-54116-600

$12.06

2

SPRING

09440-13043

$6.04

3

CLIP

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 6

44892-24A00

$4.52

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

8

HOSE, VALVE & CANISTER

44433-13F00

Unavailable

9

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

10

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

$19.52

10A

CAP, PARGE

09251-07003

$2.53

11

HOSE, CANISTER & CARB

44434-13F00

Unavailable

12

SPRING

09440-13052

$6.53

13

CLIP

09401-12404

$2.34

14

BRACKET, CANISTER

44880-02F01

Unavailable

15

CUSHION CANISTER

44883-26E00

Unavailable

16

HOLDER

44882-02F01

Unavailable

17

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

18

NUT This part replaces 08316-10063.

08316-1006B

$2.50

19

BRACKET, BREATHER VALVE | Includes Item(s) 20

44890-13F00

Unavailable

20

CUSHION (10X30X2)

44894-24A00

$1.72

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

22

HOSE, CARB | L:600?130

09355-54115-600

$14.59
