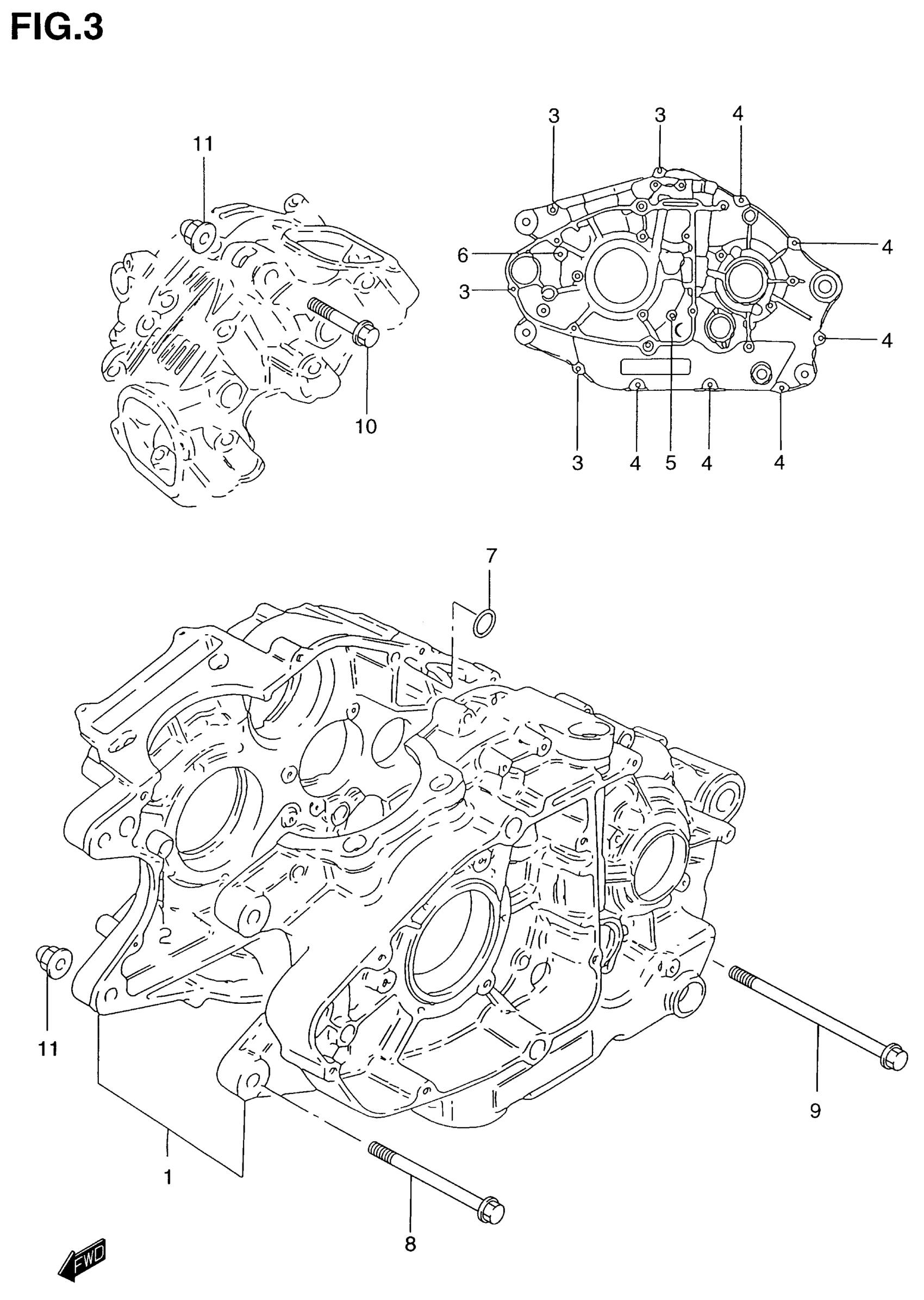

Suzuki GZ250 (2001) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL X This part replaces 11300-38863.

11300-38868

Unavailable

1

CRANKCASE SET | MODEL Y/K1; Includes Item(s) 2 - 7 This part replaces 11300-38864.

11300-38868

Unavailable

2

PIN

04211-13189

$2.19

3

BOLT

01547-06357

$2.03

4

BOLT

01547-06457

$2.32

5

BOLT This part replaces 01547-06553.

01547-0655B

$2.75

6

BOLT This part replaces 01547-06603.

01547-0660B

$3.18

7

O RING (D:1.9,ID:9.8)

09280-10016

$3.37

8

BOLT (8X67)

09103-08037

$5.57

9

BOLT (8X100)

09103-08070

$5.57

10

BOLT (8X50)

09103-08081

$3.72

11

NUT

08319-31087

$2.32
