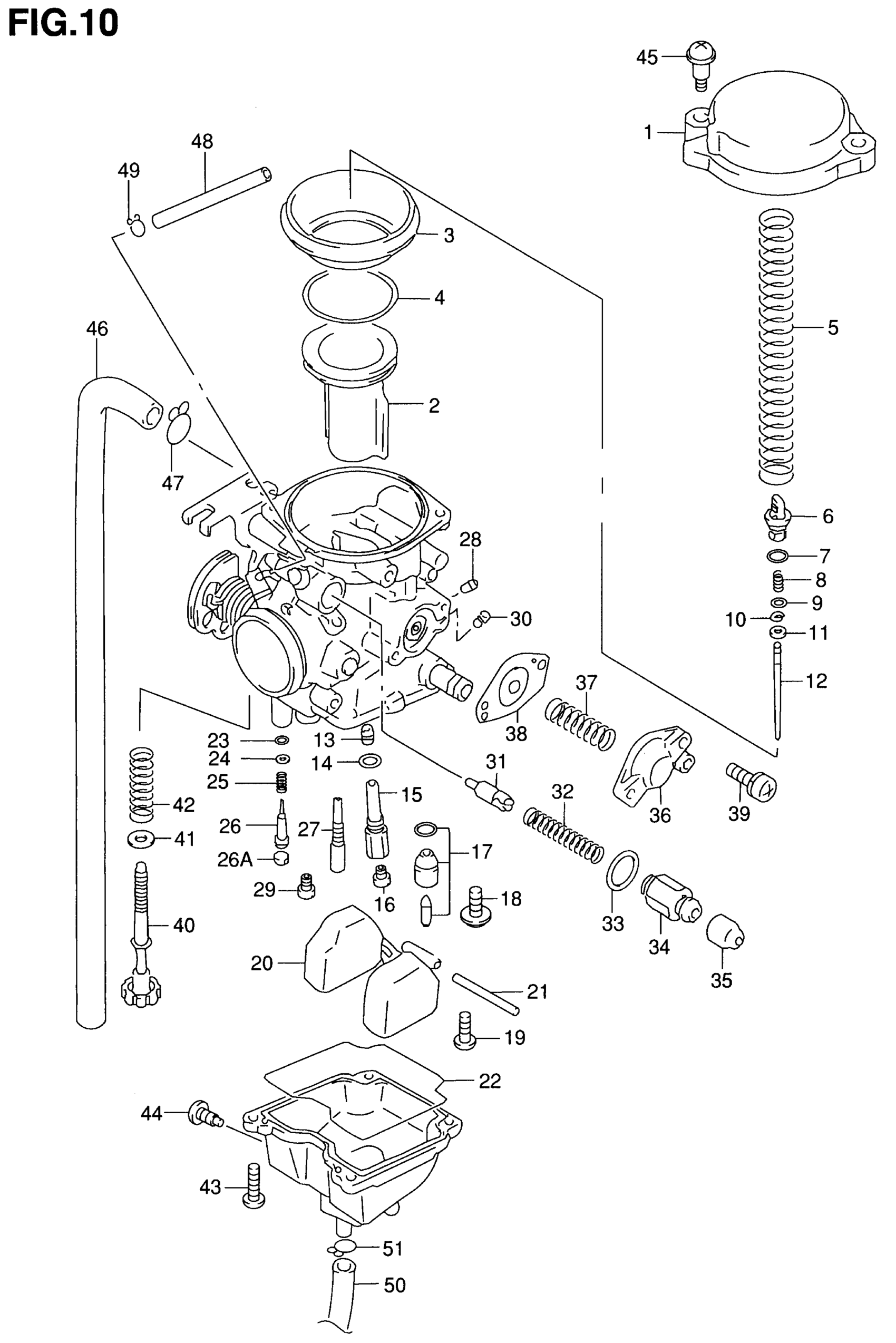

Suzuki GZ250 (2001) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY

13200-13F30

Unavailable

CARBURETOR ASSY | E33; Includes Item(s) 1 - 26

13200-13F40

$350.97

1

DIAPHRAGM COVER

13502-19E00

$43.62

2

VALVE, PISTON

13501-13F00

$90.25

3

DIAPHRAGM This part replaces 13507-19E00.

13507-19E01

$27.60

4

RING

13504-16E00

$5.30

5

SPRING

13573-04F00

$13.67

6

HOLDER

13418-33E00

$5.68

7

O RING (D:1.9,ID:4.8)

09280-05004

$2.11

8

SPRING

13481-04F00

$3.56

9

WASHER

13382-19E00

$3.56

10

E RING, MULTIPLE JET NOZZLE

13394-17E60

$1.80

11

RING | MODEL X/Y This part replaces 13387-33E00.

13387-44030

$5.83

11

RING | MODEL K1

13387-44030

$5.83

12

NEEDLE, JET | 5C65-1

13383-13F30

$20.45

13

JET, NEEDLE (P-0M)

09494-00921

$42.71

14

.O RING This part replaces 13246-43010.

13246-43011

$4.34

15

HOLDER, JET

13385-13F00

$34.15

16

JET, MAIN (120)

09491-24026

$17.37

17

VALVE ASSY,NEED This part replaces 13370-04F00.

13370-04F01

$64.82

18

SCREW

13602-05A10

$3.56

19

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

20

FLOAT ASSY

13250-04F00

$34.73

21

.PIN, FLOAT

13254-01010

$3.62

22

GASKET

13258-04F00

$9.89

23

O-RING This part replaces 13295-29900.

13295-29901

$4.34

24

WASHER

13291-29900

$1.98

25

SPRING,THROTTLE SCREW

13268-48700

$4.34

26

ADJUSTER (1 1/2)

13279-13F00

$12.57

26A

PLUG | Includes Item(s) 27 - 50

13281-05A00

$4.60

27

JET

09492-17016

$17.25

28

JET, MAIN (87.5)

09492-87002

$17.68

29

JET, MAIN (52.5)

09491-52003

$12.48

30

JET, PILOT AIR (120)

09493-24013

$16.87

31

PLUNGER

13411-24D00

$26.93

32

SPRING

13417-07F00

$7.22

33

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

34

HOLDER, GUIDE

13418-07F00

$14.22

35

.CAP This part replaces 13681-04010.

13681-04011

$4.93

36

COVER ASSY

13502-10F00

$39.68

37

SPRING

13271-13F00

$4.57

38

DIAPHRAGM ASSY This part replaces 13480-13F00.

13480-13F01

$20.52

39

SCREW

13601-04148

$2.81

40

ADJUST SCREW ASSY

13267-13F00

$15.25

41

PACKING

13285-07F00

$3.29

42

SPRING

13342-82370

$7.77

43

SCREW

02112-04107

$1.55

44

SCREW, DRAIN | MODEL X/Y This part replaces 13247-13A00.

13247-02340

$4.99

44

SCREW, DRAIN | MODEL K1

13247-02340

$4.99

45

SCREW

13247-33E00

$2.92

46

HOSE

13686-13F00

Unavailable

47

CLIP

13671-06A10

Unavailable

48

HOSE This part replaces 13686-13F10.

13686-13F11

$19.87

49

CLIP

13671-13F00

$4.52

50

HOSE | MODEL X/Y

13686-13F20

Unavailable

50

HOSE | MODEL K1

13683-21F00

Unavailable

51

CLIP

09401-08410

$1.84
