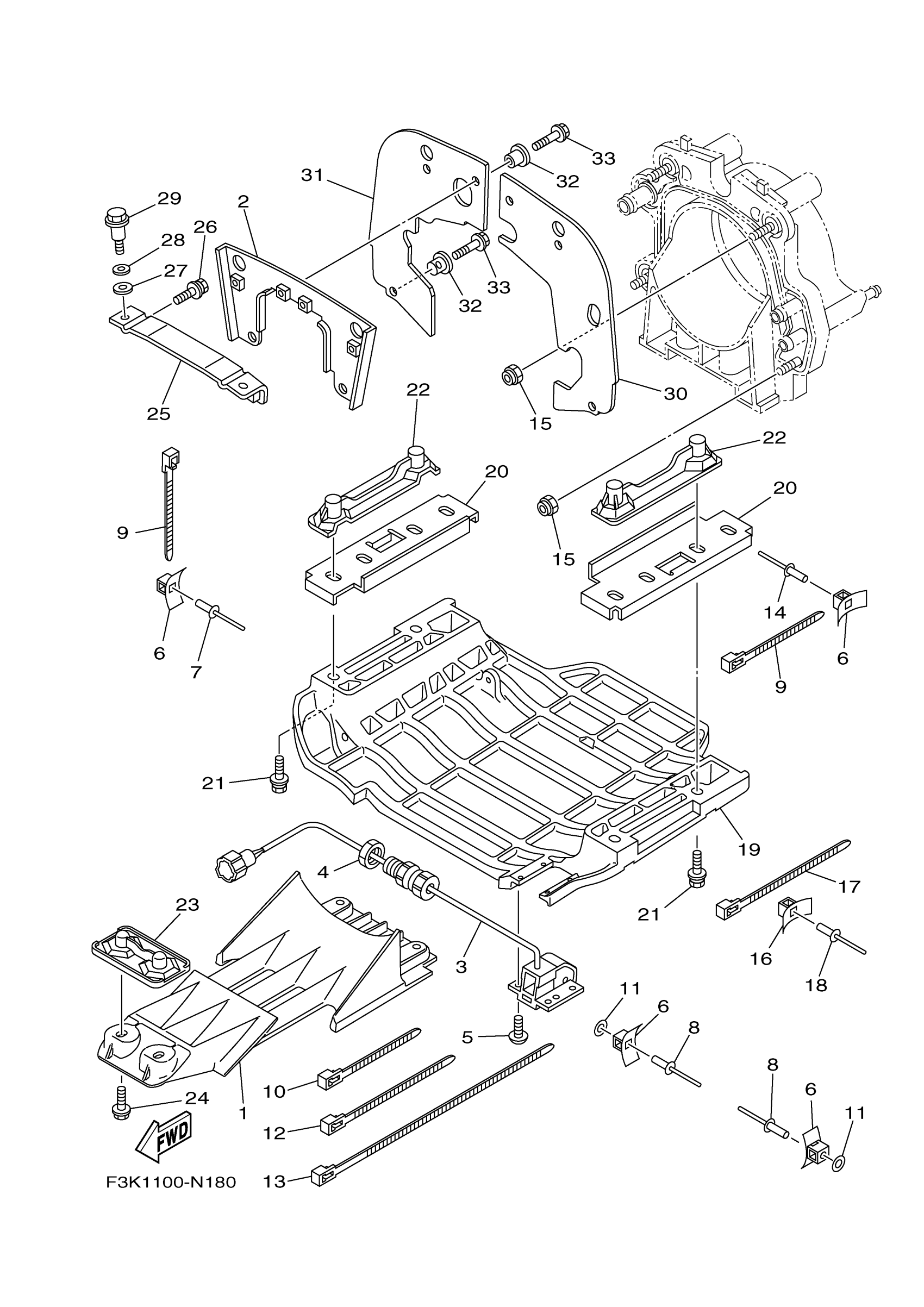

Yamaha GX1800R (FZR) F3L7 2016 JET UNIT 4 Diagram

#

Description
Price

1

SCREEN, INTAKE

6EV-R1333-00-00

Unavailable

2

BRACKET

6ET-R1959-00-00

Unavailable

3

SENSOR SPEED

F1S-U8K31-03-00

Unavailable

4

NUT

F2C-U151S-00-00

Unavailable

5

SCREW, ROUND HEAD

90150-05807-00

Unavailable

6

BASE, CLAMP

F1W-U828M-00-00

Unavailable

7

RIVET, BLIND

90267-48802-00

Unavailable

8

RIVET, BLIND

90267-489U2-00

Unavailable

9

CLAMP

90464-32801-00

Unavailable

10

BAND

90601-200U1-00

Unavailable

11

WASHER

9299R-05200-00

Unavailable

12

CLAMP

90464-32801-00

Unavailable

13

CLAMP

90464-99801-00

Unavailable

14

RIVET, BLIND

90267-489U6-00

Unavailable

15

NUT, NYLON

9572R-10300-00

Unavailable

16

BASE, CLAMP

F1W-U828M-00-00

Unavailable

17

CLAMP

90464-32801-00

Unavailable

18

RIVET, BLIND

90267-48802-00

Unavailable

19

PLATE 2

F3K-6273B-00-00

Unavailable

20

SPACER

F2C-U143G-00-00

Unavailable

21

BOLT, WITH WASHER

90119-08829-00

Unavailable

22

BRACKET 2

F1G-U8572-02-00

Unavailable

23

BRACKET, 3

F2C-U8577-03-00

Unavailable

24

BOLT, WITH WASHER

90119-10809-00

Unavailable

25

BRACKET

F2C-U7557-01-00

Unavailable

26

BOLT, WITH WASHER

90119-08800-00

Unavailable

27

GASKET

90430-12002-00

Unavailable

28

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

29

BOLT

90109-08043-00

Unavailable

30

PLATE, RUBBER 1

F3K-U757E-00-00

Unavailable

31

PLATE, RUBBER 2

F3K-U757F-00-00

Unavailable

32

COLLAR

90387-06080-00

Unavailable

33

BOLT, WITH WASHER

90119-06827-00

Unavailable
