- GX1800R (FZR) F3L7 2016
JET UNIT 1

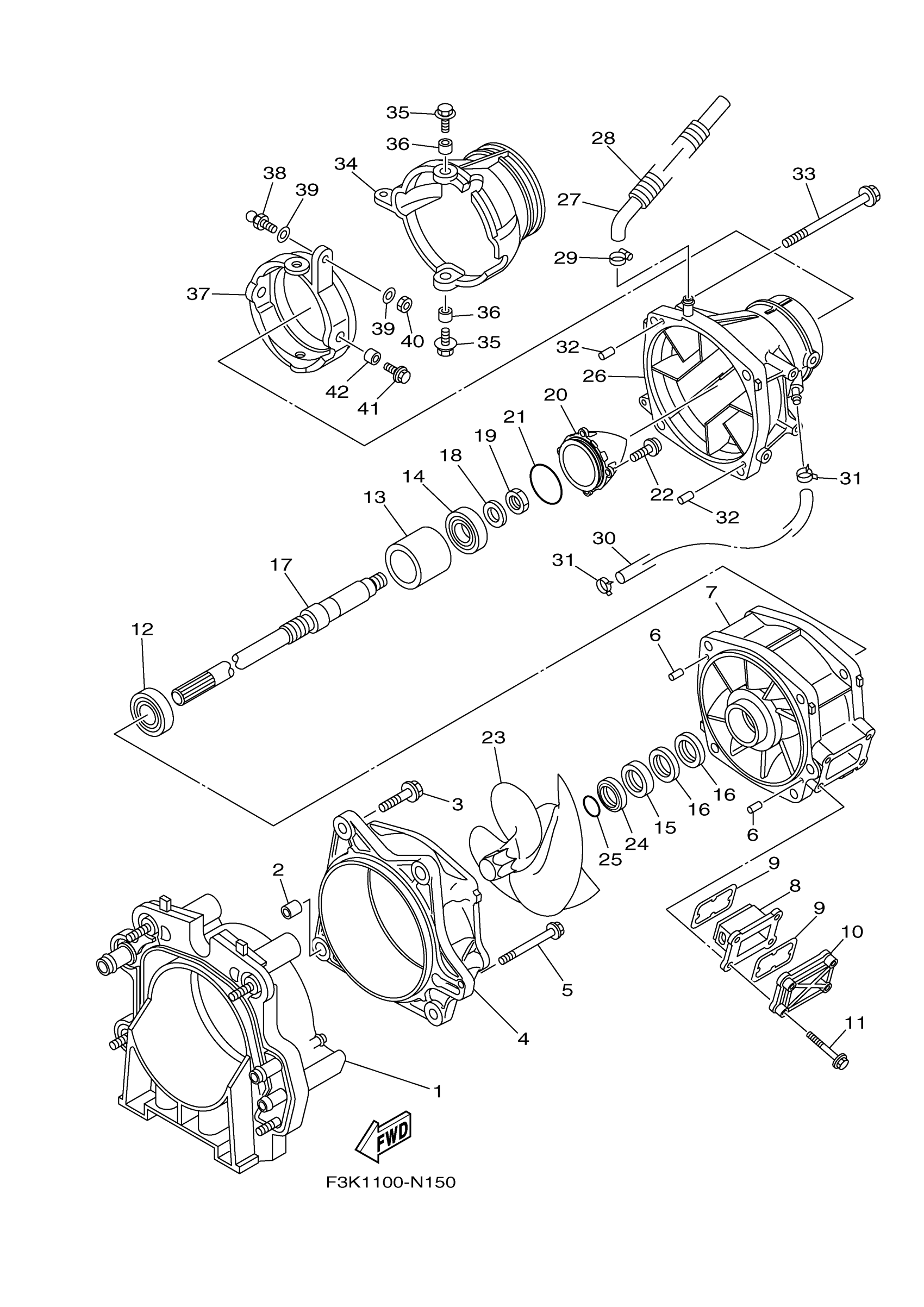

Yamaha GX1800R (FZR) F3L7 2016 JET UNIT 1 Diagram
#
1
PLATE, TRANSOM
6EV-G5831-10-00
Unavailable
2
PIN, DOWEL(4JT)
99590-14016-00
$4.24
3
BOLT, WITH WASHER
90119-10811-00
Unavailable
4
HOUSING, IMPELLER
99999-04523-00
Unavailable
5
BOLT, WITH WASHER
90119-06894-00
Unavailable
6
PIN, DOWEL (614)
93606-12019-00
$4.24
7
DUCT, IMPELLER
6ET-51315-00-00
Unavailable
8
FILTER
6ET-G6882-00-00
Unavailable
9
. O-RING
66V-42414-00-00
Unavailable
10
COVER, WATER INLET
6AN-G5214-00-00
Unavailable
11
BOLT,WITH WASHER
90119-06898-00
Unavailable
12
BEARING
93306-20654-00
$76.99
13
SPACER 1
6CS-G5538-00-00
Unavailable
14
BEARING(3RR)
93306-30560-00
Unavailable
15
. OIL SEAL
93102-31009-00
Unavailable
16
. OIL SEAL
93101-31001-00
Unavailable
17
SHAFT, DRIVE
6EV-45511-00-00
Unavailable
18
WASHER
9290P-20600-00
Unavailable
19
NUT
90170-20802-00
Unavailable
20
CAP
6ET-R1326-00-00
Unavailable
21
O-RING
93210-54010-00
Unavailable
22
BOLT, HEXAGON SOCKET HEAD
90110-06823-00
Unavailable
23
IMPELLER
6EV-R1321-00-00
Unavailable
24
SPACER
6BH-51348-01-00
Unavailable
25
O-RING (30X)
93210-30611-00
Unavailable
26
NOZZLE
6EV-R1318-00-00
Unavailable
27
HOSE 1
6AN-U72M2-00-00
Unavailable
28
TUBE
6CN-U773D-00-00
Unavailable
29
BAND, HOSE 18
90601-118UF-00
Unavailable
30
HOSE (L330)
90445-14804-00
Unavailable
31
CLIP
90467-14803-00
Unavailable
32
PIN, DOWEL (614)
93606-12019-00
$4.24
33
BOLT, WITH WASHER
90119-10807-00
Unavailable
34
NOZZLE, DEFLECTOR
6S5-R1313-01-00
Unavailable
35
BOLT, WITH WASHER
90119-08852-00
Unavailable
36
COLLAR(6R7)
90387-08M06-00
Unavailable
37
RING,TRIM
6AN-R1190-00-00
Unavailable
38
STUD, JOINT BALL
GH3-U146E-00-00
Unavailable
39
WASHER,PLATE
90201-068M4-00
Unavailable
40
NUT
9538R-06700-00
Unavailable
41
BOLT, WITH WASHER
90119-08852-00
Unavailable
42
COLLAR(6R7)
90387-08M06-00
Unavailable
