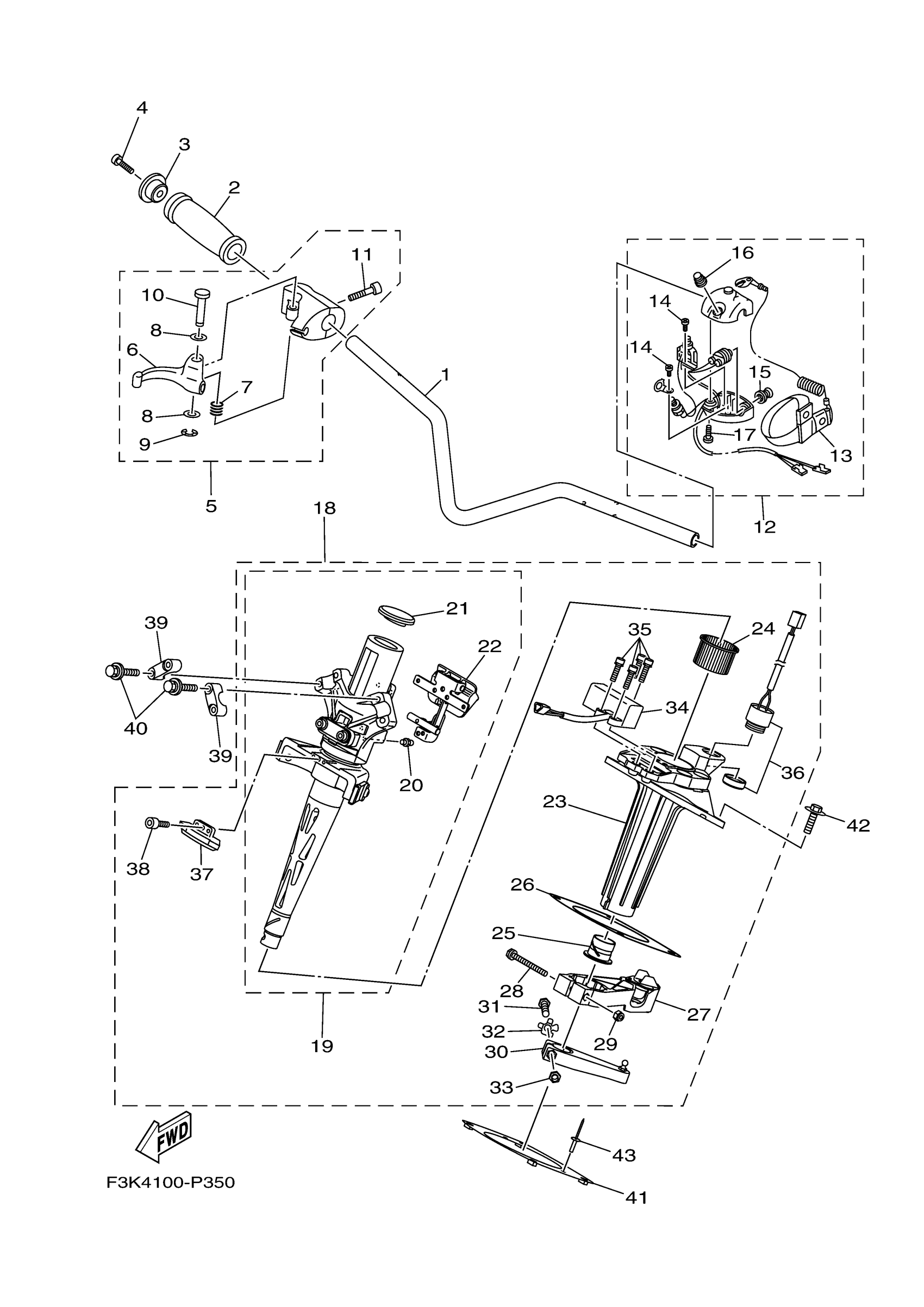

Yamaha GX1800P (FZR) F3L4 2015 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F2C-U1552-00-00

$127.26

2

GRIP, HANDLE

GP7-U155D-01-00

$38.75

3

GRIP, END

GP7-U155F-00-00

$2.88

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

THROTTLE LEVER ASSY

F0D-67250-10-00

$106.05

6

LEVER, THROTTLE

F0D-67255-02-00

$27.26

7

. SPRING

EW2-67256-00-00

$6.36

8

WASHER, PLAIN (646)

92990-05600-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.70

10

. SHAFT

F0D-67257-00-00

$16.99

11

. BOLT, THROTTLE

F1X-6725F-01-00

$3.64

12

SWITCH BOX ASSY

F2C-68310-00-00

$225.74

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

15

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

16

. START BUTTON COMP

FK7-68313-02-00

$11.31

17

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

18

STEERING MASTER ASSY

F3K-61400-00-00

$948.47

19

. SHAFT ASSY

F3K-67410-00-00

$896.95

20

.. NIPPLE, GREASE

F2C-6151T-00-00

$23.99

21

.. CAP

F2C-613B0-00-00

$29.99

22

.. LOCK ASSY

F2C-6287A-00-00

$310.59

23

. HOUSING ASSY

F2C-6152M-00-00

$295.44

24

. BUSH

F1K-6134M-00-00

$6.82

25

. BUSH

F2C-6134M-00-00

$8.14

26

. SEAL, RUBBER

F2C-6143C-00-00

$56.99

27

. CABLE STOPPER ASSY

F2C-6146A-00-00

$181.80

28

. BOLT

F2C-61369-00-00

$22.71

29

NUT, SELF-LOCKING

95720-06300-00

$1.82

30

ARM ASSY.

F2C-6153R-01-00

Unavailable

31

.. BOLT

F1K-61355-00-00

$17.41

32

. PLATE, RETAINING

F1K-6142B-00-00

$5.91

33

. NUT, SELF-LOCKING

95720-08300-00

$3.33

34

SENSOR, MAGNET

F3J-6838B-01-00

$210.59

35

BOLT

F1W-61516-10-00

Unavailable

36

BUZZER

F1S-68341-00-00

$113.62

37

MAGNET

F3J-6838C-01-00

$26.49

38

SCREW

F1B-613C1-10-00

Unavailable

39

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

40

BOLT, WITH WASHER

90119-089U1-00

$3.23

41

PLATE, RETAINING

F2C-U1554-00-00

$69.68

42

BOLT,WITH WASHER

90119-08870-00

$12.90

43

RIVET, BLIND

90267-48806-00

$2.00
