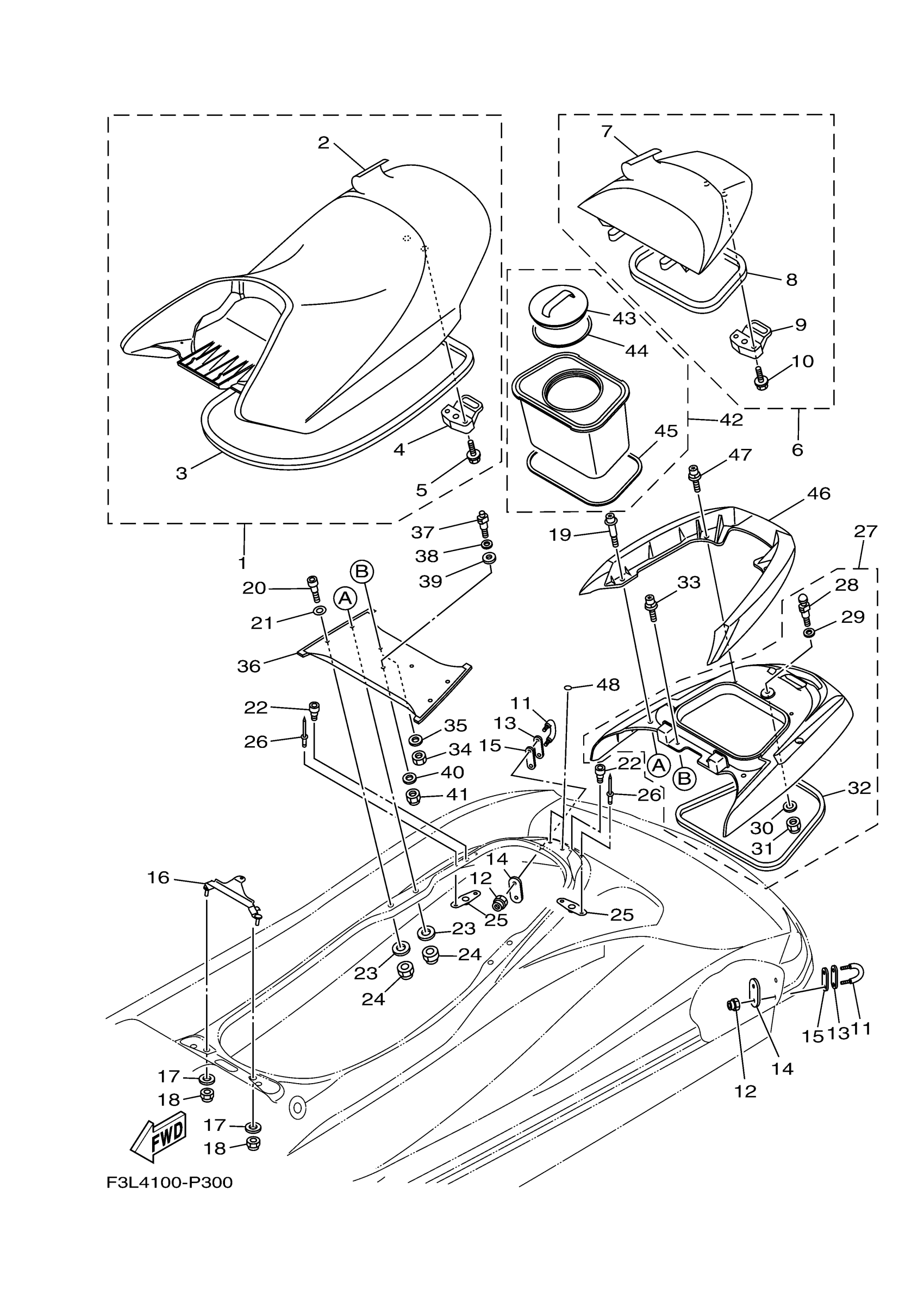

Yamaha GX1800P (FZR) F3L4 2015 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F2R-U371A-41-00

Unavailable

2

. COVER, SEAT 1

F2R-U371B-40-00

$197.00

3

. PACKING

F1W-U2664-01-00

$32.82

4

SEAT LOCK ASSY

F1B-U3850-02-00

$10.04

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F2R-U372A-40-00

Unavailable

7

. COVER, SEAT

F2R-U372B-40-00

Unavailable

8

PACKING 5

F2C-U266D-01-00

$16.40

9

. SEAT LOCK ASSY

F2C-U3850-00-00

$24.39

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

STERN EYE

F2N-U1628-02-00

$5.17

12

NUT, NYLON (6J8)

95780-08300-00

$11.48

13

PLATE A

GP7-U4953-10-00

$3.65

14

PLATE A

F2C-U4953-10-00

$5.52

15

PACKING

F1B-U1653-03-00

$2.00

16

STAY, SEAT 1

F2C-U378C-00-00

$56.70

17

WASHER, PLATE

90201-099U3-00

$2.30

18

NUT, NYLON (6J8)

95780-08300-00

$11.48

19

BOLT

F2C-U2624-01-00

$3.65

20

BOLT

F2C-U2624-20-00

Unavailable

21

WASHER

9299R-10200-00

$1.72

22

BOLT

F2C-U2624-10-00

$3.65

23

WASHER

9299R-08200-00

Unavailable

24

NUT, NYLON (6J8)

95780-08300-00

$11.48

25

BRACKET

F2C-U826C-00-00

$4.01

26

RIVET (EU0)

90267-48938-00

$4.72

27

DECK BEAM ASSY

F2C-U890L-10-00

Unavailable

28

PIN

GH1-U3774-00-00

$20.81

29

WASHER, PLATE

90201-109U6-00

$3.43

30

WASHER

9299R-10200-00

$1.72

31

NUT, NYLON

9572R-10300-00

$3.52

32

. PACKING 1

F2C-U375E-00-00

$18.64

33

BOLT

F2C-U2624-30-00

$3.65

34

NUT

9538R-08600-00

$1.34

35

WASHER

9299R-08200-00

Unavailable

36

BEAM, DECK 1

F2C-U8952-11-00

$125.36

37

PIN

F1B-U3774-00-00

$22.37

38

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

39

PACKING 1

F0X-6375E-00-00

$3.58

40

WASHER

9299R-10200-00

$1.72

41

NUT, NYLON

9572R-10300-00

$3.52

42

CASE,ASSY 1

F2C-U591A-03-00

$46.25

43

. CAP,CASE

F2C-U591C-00-00

$5.96

44

. PACKING,CASE

F2C-U591D-01-00

$1.72

45

. PACKING,6

F2C-U266E-00-00

$15.07

46

GRIP, HAND

F2R-U271B-10-00

$293.02

47

BOLT

F2C-U2624-30-00

$3.65

48

. SEAL 1

F2R-U884B-00-00

$0.82
