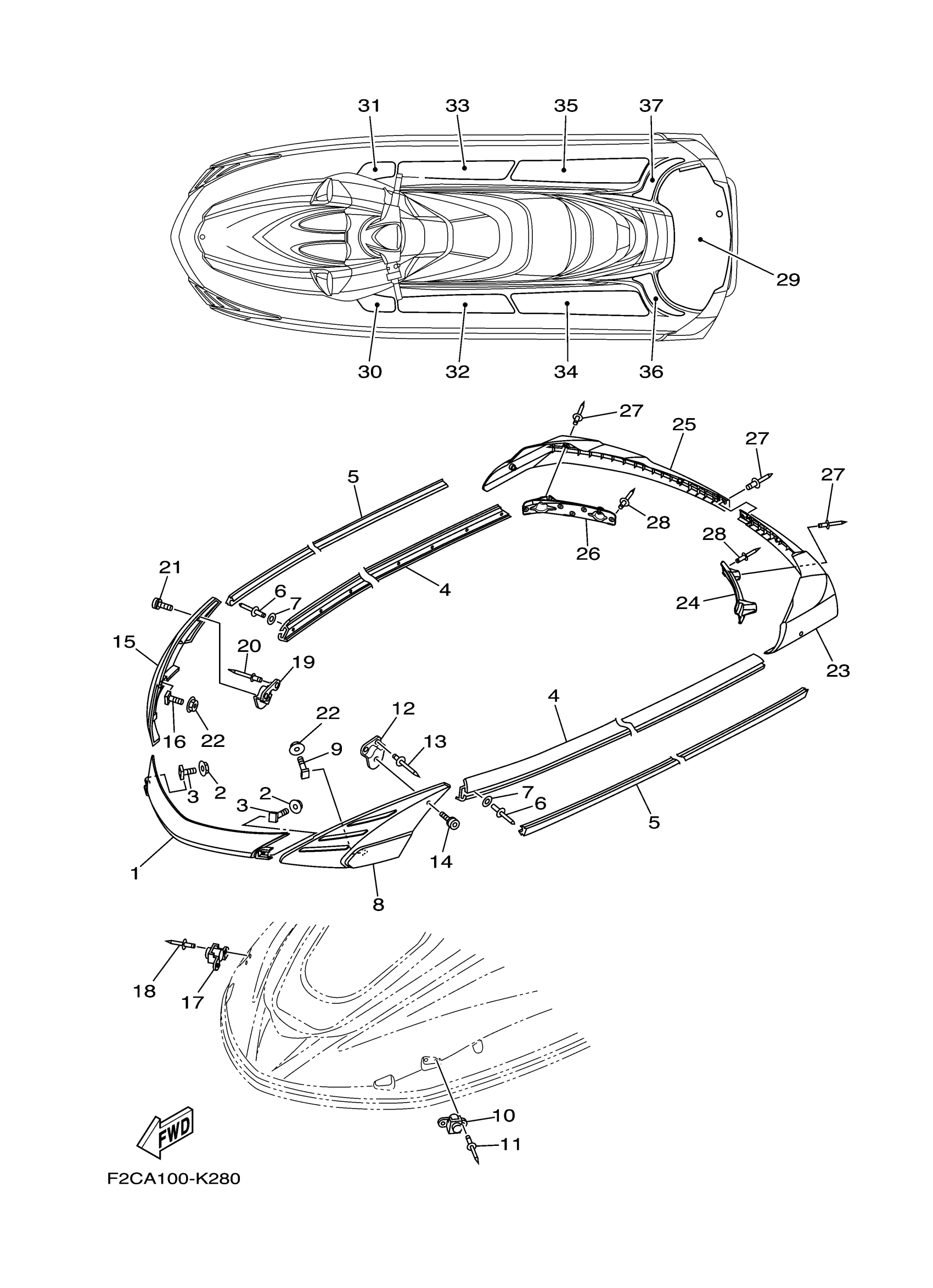

Yamaha GX1800P (FZR) F3L4 2015 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F2C-U2511-11-00

$94.10

2

NUT, LOCK

F2N-U142L-00-00

$1.43

3

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

4

GUNWALE, SIDE

F1B-U2512-10-00

$85.28

5

INNER,GUNWALE

F1B-U2519-10-00

$79.55

6

RIVET, BLIND

90267-489U8-00

$1.37

7

WASHER

9299R-05200-00

$4.60

8

JOINT, GUNWALE LH

F1W-U252E-21-00

$127.49

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

GROMMET ASSY

F1W-U250B-00-00

$4.46

11

RIVET, BLIND

90267-489U6-00

Unavailable

12

BRACKET

F1W-U4949-00-00

$3.16

13

RIVET, BLIND

90267-489U6-00

Unavailable

14

BOLT,HEX. SOCKET BUTTON

90111-06115-00

$3.53

15

JOINT, GUNWALE RH

F1W-U252F-21-00

$76.46

16

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

17

GROMMET ASSY

F1W-U250B-00-00

$4.46

18

RIVET, BLIND

90267-489U6-00

Unavailable

19

BRACKET

F1W-U4949-00-00

$3.16

20

RIVET, BLIND

90267-489U6-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-06115-00

$3.53

22

NUT, LOCK

F2N-U142L-00-00

$1.43

23

GUNWALE, STERN 1

F1W-U251D-20-00

$69.97

24

BRACKET, GUNWALE 1

F1W-U251L-01-00

$4.56

25

GUNWALE, STERN 2

F1W-U251E-20-00

$149.99

26

BRACKET, GUNWALE 2

F1W-U251M-01-00

$4.56

27

RIVET, BLIND

90267-48825-00

$2.16

28

RIVET, BLIND

90267-489U8-00

$1.37

29

MAT, UPPER

F2C-U3581-10-00

$82.34

30

MAT, STEP 1

F2C-U351H-10-00

$6.10

31

MAT, STEP 2

F2C-U351J-10-00

$5.96

32

MAT, STEP 3

F2C-U351K-10-00

$18.37

33

MAT, STEP 4

F2C-U351M-10-00

$27.93

34

MAT, STEP 5

F2C-U351N-10-00

$32.34

35

MAT, STEP 6

F2C-U351P-10-00

$32.34

36

MAT, STEP 7

F2C-U351R-10-00

$11.01

37

MAT, STEP 8

F2C-U351S-10-00

$11.01
