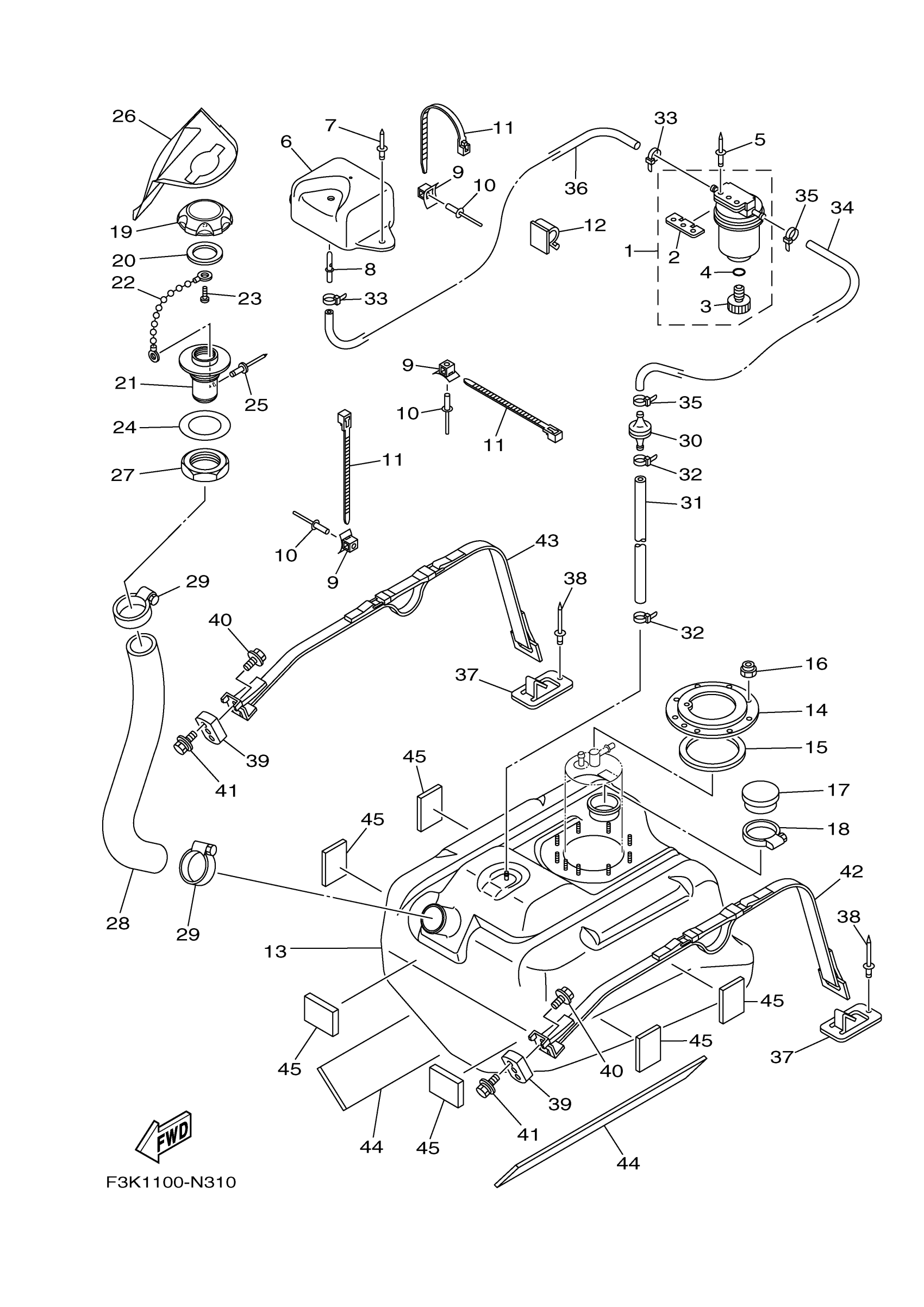

Yamaha GX1800P (FZR) F3L4 2015 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

Unavailable

2

. PLATE, FILTER

EW2-62142-00-00

Unavailable

3

. PLUG, DRAIN

70R-24543-00-00

Unavailable

4

. O-RING

70R-24489-00-00

Unavailable

5

RIVET, BLIND

90267-489U2-00

Unavailable

6

SOCKET, VENTILATION

F1W-U2159-00-00

Unavailable

7

RIVET, BLIND

90267-489U6-00

Unavailable

8

PIPE, VENTILATION

F1G-62149-00-00

Unavailable

9

BASE, CLAMP

F1W-U828M-00-00

Unavailable

10

RIVET, BLIND

90267-489U6-00

Unavailable

11

CLAMP

90464-32801-00

Unavailable

12

CLAMP

90464-17800-00

Unavailable

13

TANK, FUEL

F1W-U7711-12-00

Unavailable

14

RING

F1B-U7773-00-00

Unavailable

15

PACKING, SEAL

F1B-67747-00-00

Unavailable

16

NUT, NYLON

9572R-06300-00

Unavailable

17

COVER

FN8-6771K-00-00

Unavailable

18

BAND, HOSE 62

90601-162U5-00

Unavailable

19

CAP, FUEL FILLER

F2N-U7831-10-00

Unavailable

20

PACKING

GP7-U7832-01-00

Unavailable

21

SOCKET

GP7-U7833-11-00

Unavailable

22

CHAIN BALL

GP7-U7835-00-00

Unavailable

23

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

Unavailable

24

PACKING FUEL FILLER

GP7-U7834-10-00

Unavailable

25

RIVET, BLIND

90267-329UR-00

Unavailable

26

PROTECTOR

F3K-U895D-00-00

Unavailable

27

NUT, FUEL FILLER

GP7-U783F-00-00

Unavailable

28

HOSE

F2C-U7844-00-00

Unavailable

29

BAND, HOSE 55

90601-155U4-00

Unavailable

30

CHECK VALVE

EU0-67767-31-00

Unavailable

31

HOSE, AIR VENT 3

F2H-U785H-00-00

Unavailable

32

CLAMP

90465-10098-00

Unavailable

33

CLAMP

90465-10098-00

Unavailable

34

HOSE, AIR VENT

F2C-U785G-00-00

Unavailable

35

CLAMP

90465-10098-00

Unavailable

36

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

37

HOOK A

F1K-U5772-04-00

Unavailable

38

RIVET (EU0)

90267-48938-00

Unavailable

39

NUT, SPECIAL

F1X-U2873-00-00

Unavailable

40

BOLT, WITH WASHER

90119-08800-00

Unavailable

41

BOLT, WITH WASHER

90119-06830-00

Unavailable

42

BELT, TANK 1

F2C-67743-00-00

Unavailable

43

BELT, TANK 1

F2C-67743-11-00

Unavailable

44

MAT 1

F1W-U759B-00-00

Unavailable

45

MAT 2

F1W-U759C-01-00

Unavailable
