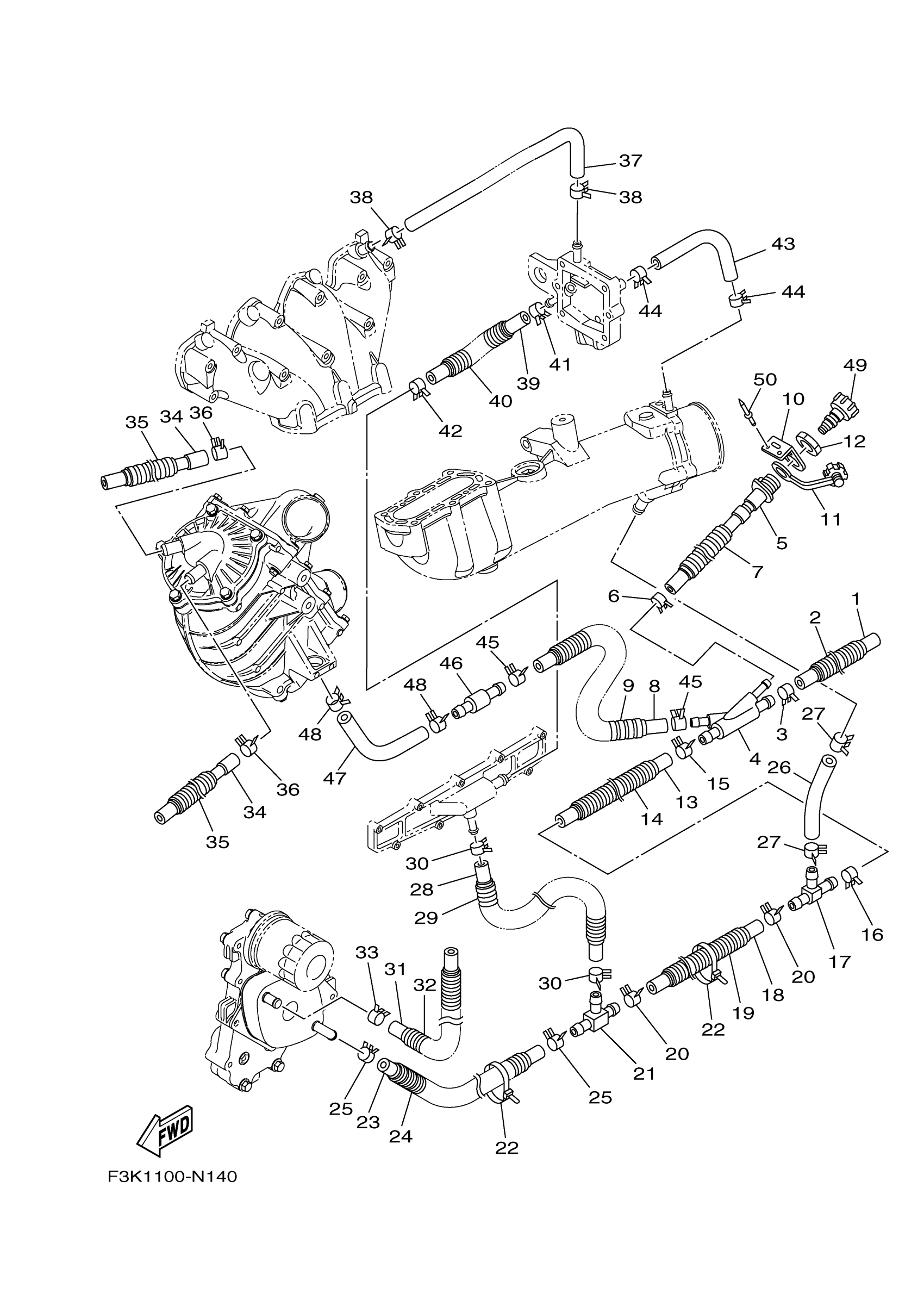

Yamaha GX1800P (FZR) F3L4 2015 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L285)

90445-21813-00

$3.58

2

TUBE

F2T-U773D-20-00

Unavailable

3

CLIP

90467-200A3-00

$6.07

4

JOINT, HOSE 1

6ET-12581-10-00

$31.33

5

JOINT ASSY

63M-12580-00-00

$76.37

6

CLIP

90467-150A5-00

$2.58

7

TUBE (L485)

90447-19801-00

$3.51

8

HOSE (L970)

90445-21807-00

$14.16

9

TUBE (L850)

90447-22802-00

$4.03

10

STAY

60E-12443-00-00

$3.03

11

CAP,1

682-84385-01-00

$7.21

12

NUT

EU0-61652-00-00

$11.77

13

HOSE 2

6S5-1243E-01-00

$21.53

14

TUBE

F2T-U773D-00-00

$1.34

15

CLIP

90467-200A3-00

$6.07

16

CLIP

90467-200A3-00

$6.07

17

JOINT, HOSE 3

6BH-12584-00-00

$4.55

18

HOSE (L220)

90445-18017-00

$13.42

19

HOSE, WITH SPRING

90447-19004-00

Unavailable

20

CLIP

90467-160A0-00

$3.03

21

JOINT, HOSE 2

6ET-12582-00-00

$4.93

22

CLAMP(3XW)

90464-35132-00

Unavailable

23

HOSE (L220)

90445-18017-00

$13.42

24

HOSE, WITH SPRING

90447-19004-00

Unavailable

25

CLIP

90467-160A0-00

$3.03

26

HOSE 6

6S5-12589-01-00

Unavailable

27

CLIP

90467-200A3-00

$6.07

28

HOSE 5

6S5-1244H-00-00

$20.88

29

TUBE (L150)

90447-19011-00

$2.69

30

. CLIP

90467-150A1-00

$3.41

31

HOSE 5

6S5-12588-00-00

$16.22

32

HOSE, WITH SPRING (L=630)

90447-19006-00

$7.14

33

CLIP

90467-160A0-00

$3.03

34

HOSE 8

6S5-12552-00-00

$22.37

35

HOSE (L420)

90446-24M89-00

$7.21

36

CLIP

90467-170A4-00

$2.16

37

HOSE 2

6BH-12577-00-00

$20.88

38

CLIP

90467-160A0-00

$3.03

39

HOSE 4

6S5-12579-00-00

$19.39

40

TUBE (L150)

90447-19011-00

$2.69

41

CLIP

90467-160A0-00

$3.03

42

CLIP

90467-170A5-00

$3.79

43

HOSE (L220)

90445-16013-00

$11.18

44

CLIP

90467-160A0-00

$3.03

45

CLIP

90467-200A3-00

$6.07

46

JOINT, HOSE 4

6S5-12594-00-00

$4.48

47

HOSE 1

6S5-12576-01-00

$22.37

48

CLIP

90467-200A3-00

$6.07

49

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.85

50

RIVET (EU0)

90267-48938-00

$4.72
