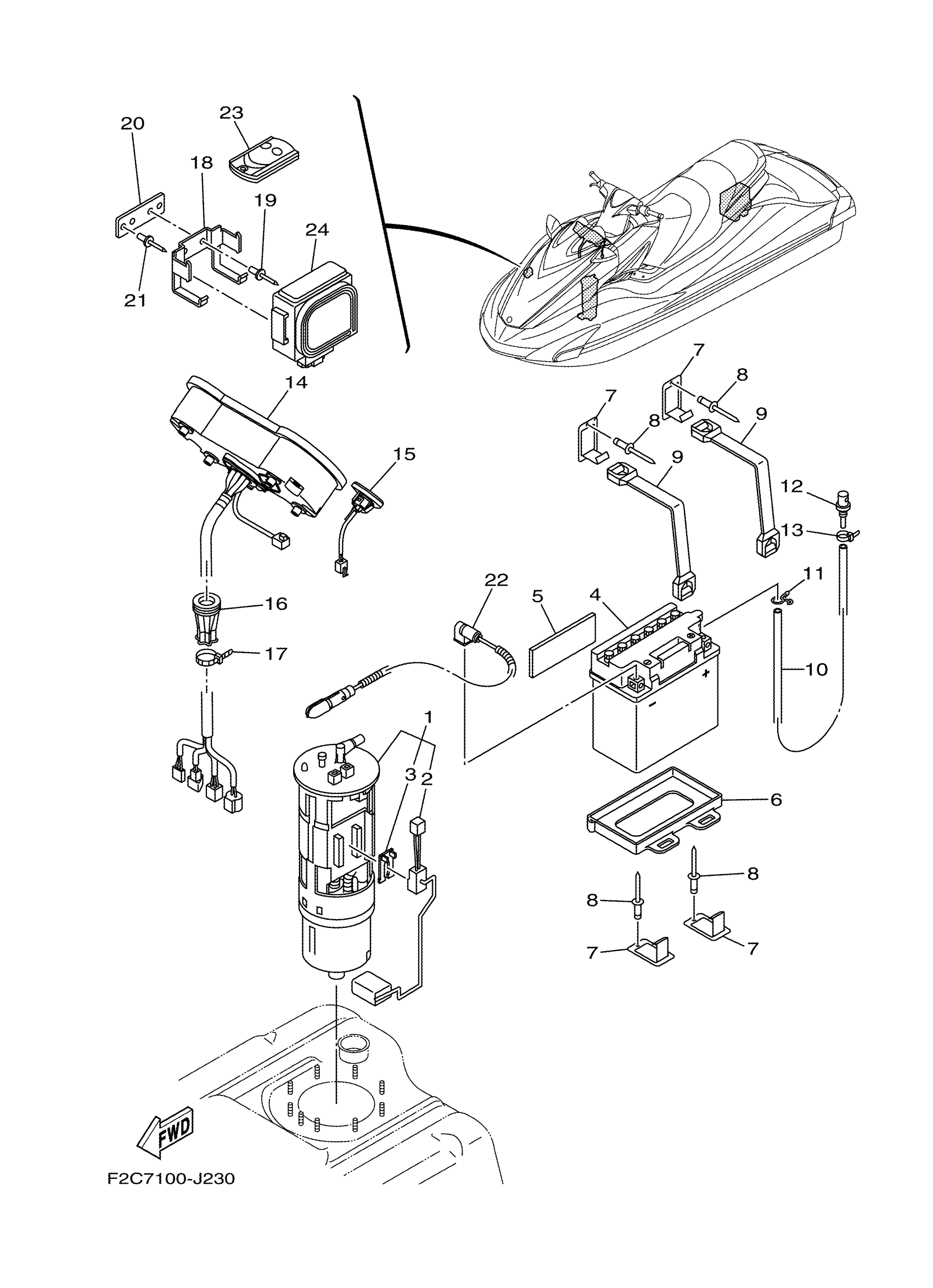

Yamaha GX1800P (FZR) F3L4 2015 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

BATTERY ASSY

EU0-82110-08-00

Unavailable

5

PAD, BATTERY

F1K-U8221-00-00

$2.80

6

CASE, BATTERY

F1K-U8211-01-00

$20.88

7

HOOK A

F1K-U5772-04-00

$6.19

8

RIVET (EU0)

90267-48938-00

$4.72

9

BAND, BATTERY 1

F1K-U821D-01-00

$6.32

10

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

11

CLIP

90467-089U1-00

$1.42

12

NIPPLE

GJ3-6215F-00-00

$8.94

13

CLAMP

90465-10098-00

$2.24

14

METER ASSY

F2C-6820A-10-00

$1,220.88

15

SWITCH ASSY.

F2C-68090-00-00

$216.40

16

GROMMET

F3J-U822E-01-00

$5.87

17

BAND

90601-200U1-00

$2.77

18

BRACKET

F1W-U826C-00-00

$17.90

19

RIVET (EU0)

90267-48938-00

$4.72

20

PLATE

F1W-U8376-00-00

$2.76

21

RIVET (EU0)

90267-48938-00

$4.72

22

WIRE, MINUS LEAD

6JP-82116-00-00

$64.16

23

XMTR. COMP.

6B6-86261-00-00

$272.07

24

RECEIVER COMPLETE

6B6-86265-00-00

$420.88
