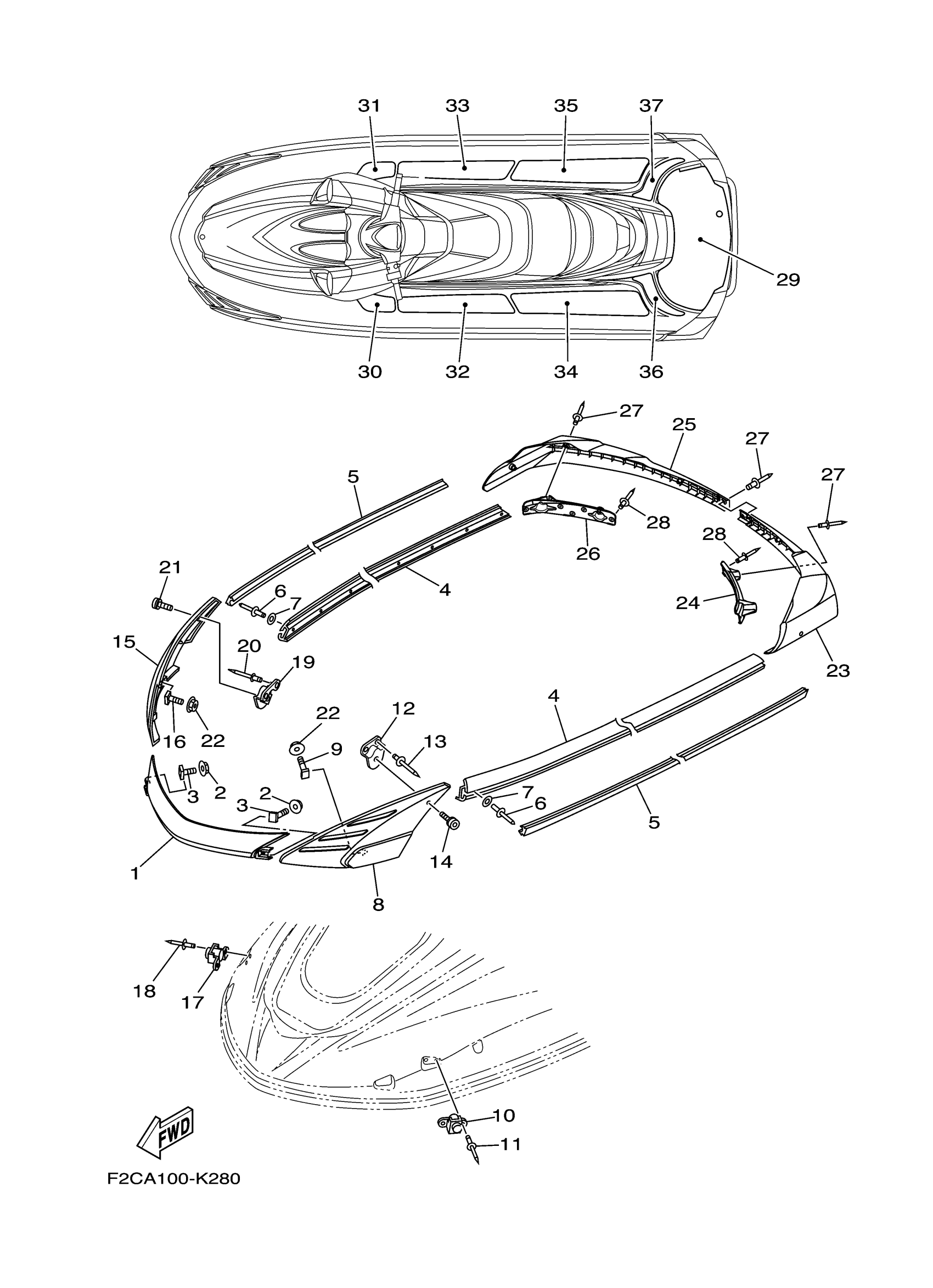

Yamaha GX1800N (FZR) F3L1 2014 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F2C-U2511-11-00

$94.10

2

NUT, LOCK

F2N-U142L-00-00

$1.43

3

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

4

GUNWALE, SIDE

F1B-U2512-10-00

$85.28

5

INNER,GUNWALE

F1B-U2519-80-00

$22.04

6

RIVET, BLIND

90267-489U8-00

$1.37

7

WASHER

9299R-05200-00

$4.60

8

JOINT, GUNWALE LH

F1W-U252E-21-00

$127.49

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

GROMMET ASSY

F1W-U250B-00-00

$4.46

11

RIVET, BLIND

90267-489U6-00

Unavailable

12

BRACKET

F1W-U4949-00-00

$3.16

13

RIVET, BLIND

90267-489U6-00

Unavailable

14

BOLT,HEX. SOCKET BUTTON

90111-06115-00

$3.53

15

JOINT, GUNWALE RH

F1W-U252F-21-00

$76.46

16

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

17

GROMMET ASSY

F1W-U250B-00-00

$4.46

18

RIVET, BLIND

90267-489U6-00

Unavailable

19

BRACKET

F1W-U4949-00-00

$3.16

20

RIVET, BLIND

90267-489U6-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-06115-00

$3.53

22

NUT, LOCK

F2N-U142L-00-00

$1.43

23

GUNWALE, STERN 1

F1W-U251D-20-00

$69.97

24

BRACKET, GUNWALE 1

F1W-U251L-01-00

$4.56

25

GUNWALE, STERN 2

F1W-U251E-20-00

$149.99

26

BRACKET, GUNWALE 2

F1W-U251M-01-00

$4.56

27

RIVET, BLIND

90267-48825-00

$2.16

28

RIVET, BLIND

90267-489U8-00

$1.37

29

MAT, UPPER

F2C-U3581-20-00

$80.87

30

MAT, STEP 1

F2C-U351H-20-00

$3.01

31

MAT, STEP 2

F2C-U351J-20-00

$2.87

32

MAT, STEP 3

F2C-U351K-20-00

$20.57

33

MAT, STEP 4

F2C-U351M-20-00

$19.10

34

MAT, STEP 5

F2C-U351N-20-00

$25.72

35

MAT, STEP 6

F2C-U351P-20-00

$24.99

36

MAT, STEP 7

F2C-U351R-20-00

$6.91

37

MAT, STEP 8

F2C-U351S-20-00

$8.07
