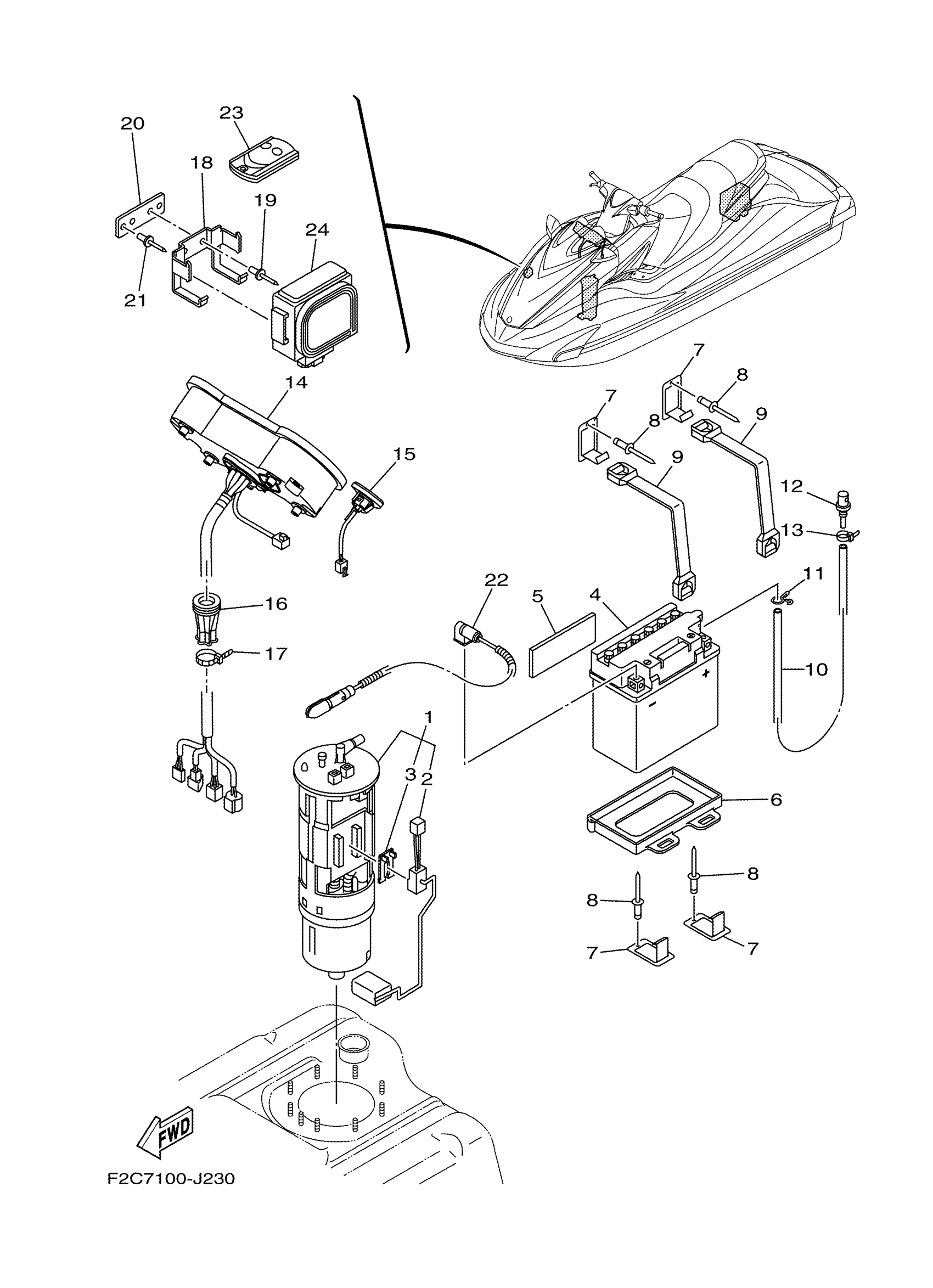

Yamaha GX1800N (FZR) F3L1 2014 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

Unavailable

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

Unavailable

4

BATTERY ASSY

EU0-82110-08-00

Unavailable

5

PAD, BATTERY

F1K-U8221-00-00

Unavailable

6

CASE, BATTERY

F1K-U8211-01-00

Unavailable

7

HOOK A

F1K-U5772-04-00

Unavailable

8

RIVET (EU0)

90267-48938-00

Unavailable

9

BAND, BATTERY 1

F1K-U821D-01-00

Unavailable

10

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

11

CLIP

90467-089U1-00

Unavailable

12

NIPPLE

GJ3-6215F-00-00

Unavailable

13

CLAMP

90465-10098-00

Unavailable

14

METER ASSY

F2C-6820A-10-00

Unavailable

15

SWITCH ASSY.

F2C-68090-00-00

Unavailable

16

GROMMET

F3J-U822E-01-00

Unavailable

17

BAND

90601-200U1-00

Unavailable

18

BRACKET

F1W-U826C-00-00

Unavailable

19

RIVET (EU0)

90267-48938-00

Unavailable

20

PLATE

F1W-U8376-00-00

Unavailable

21

RIVET (EU0)

90267-48938-00

Unavailable

22

WIRE, MINUS LEAD

6JP-82116-00-00

Unavailable

23

XMTR. COMP.

6B6-86261-00-00

Unavailable

24

RECEIVER COMPLETE

6B6-86265-00-00

Unavailable
