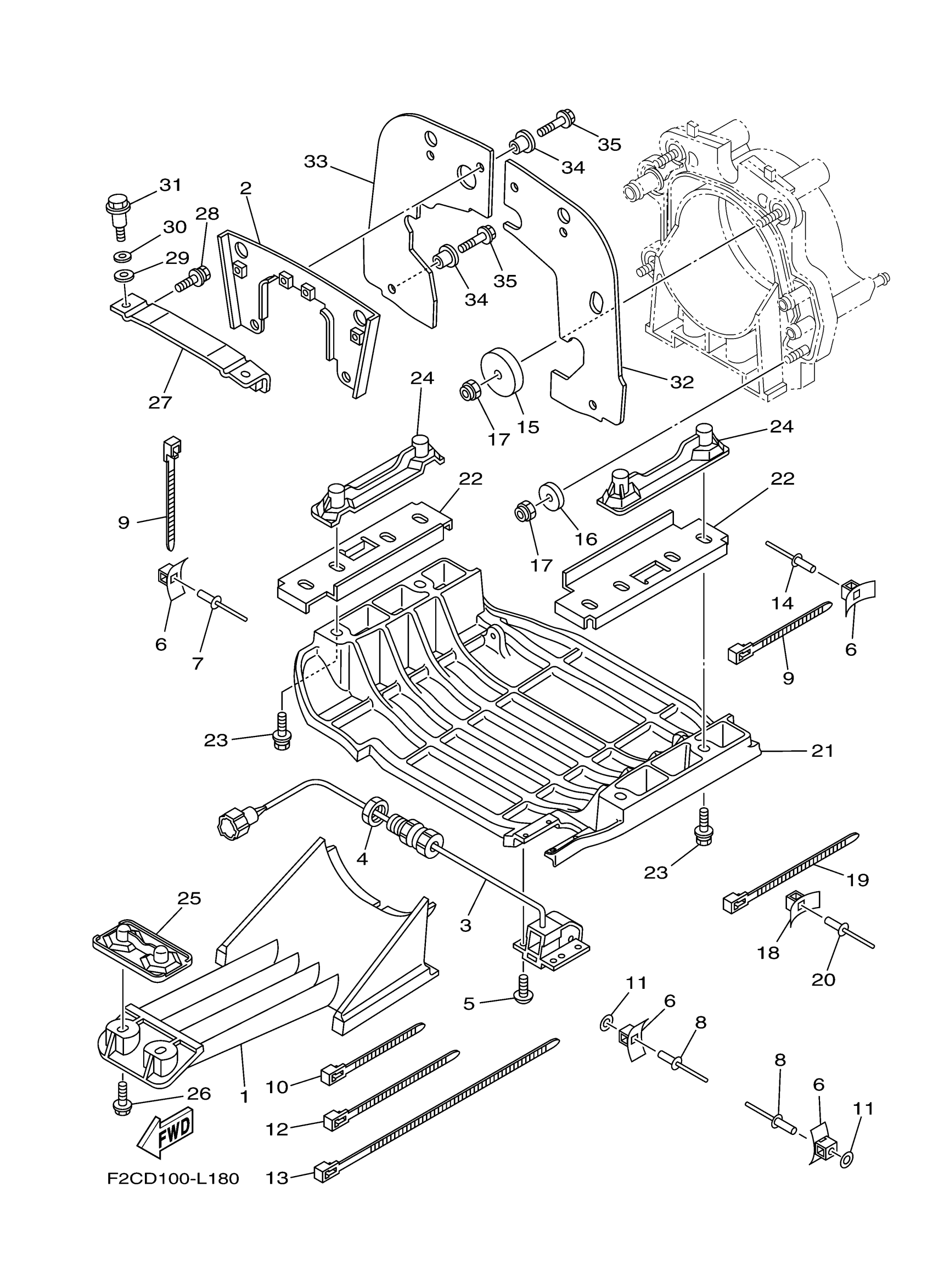

Yamaha GX1800M (FZR) F2RD 2013 JET UNIT 4 Diagram

#

Description
Price

1

SCREEN, INTAKE

6AN-R1333-02-00

$107.56

2

BRACKET

6ET-R1959-00-00

$17.14

3

SENSOR SPEED

F1S-U8K31-03-00

$142.18

4

NUT

F2C-U151S-00-00

$1.59

5

SCREW, ROUND HEAD

90150-05807-00

$0.79

6

BASE, CLAMP

F1W-U828M-00-00

$1.23

7

RIVET, BLIND

90267-48802-00

$1.98

8

RIVET, BLIND

90267-489U2-00

$1.43

9

CLAMP

90464-32801-00

$1.23

10

BAND

90601-200U1-00

$2.77

11

WASHER

9299R-05200-00

$3.16

12

CLAMP

90464-32801-00

$1.23

13

CLAMP

90464-99801-00

$2.73

14

RIVET, BLIND

90267-489U6-00

$1.37

15

WASHER

F1S-U725E-01-00

$7.89

16

WASHER, PLATE

90201-10801-00

$3.52

17

NUT, NYLON

9572R-10300-00

$3.37

18

BASE, CLAMP

F1W-U828M-00-00

$1.23

19

CLAMP

90464-32801-00

$1.23

20

RIVET, BLIND

90267-48802-00

$1.98

21

PLATE 2

F2C-U273B-02-00

Unavailable

22

SPACER

F2C-U143G-00-00

$45.44

23

BOLT, WITH WASHER

90119-08829-00

$3.88

24

BRACKET 2

F1G-U8572-02-00

$18.66

25

BRACKET, 3

F2C-U8577-03-00

$19.68

26

BOLT, WITH WASHER

90119-10809-00

Unavailable

27

BRACKET

F2C-U7557-01-00

$30.29

28

BOLT, WITH WASHER

90119-08800-00

$4.09

29

GASKET

90430-12002-00

$1.81

30

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

31

BOLT

90109-08043-00

$4.09

32

PLATE, RUBBER 1

F2C-U757E-01-00

Unavailable

33

PLATE, RUBBER 2

F2C-U757F-01-00

Unavailable

34

COLLAR

90387-06080-00

$7.27

35

BOLT, WITH WASHER

90119-06827-00

Unavailable
