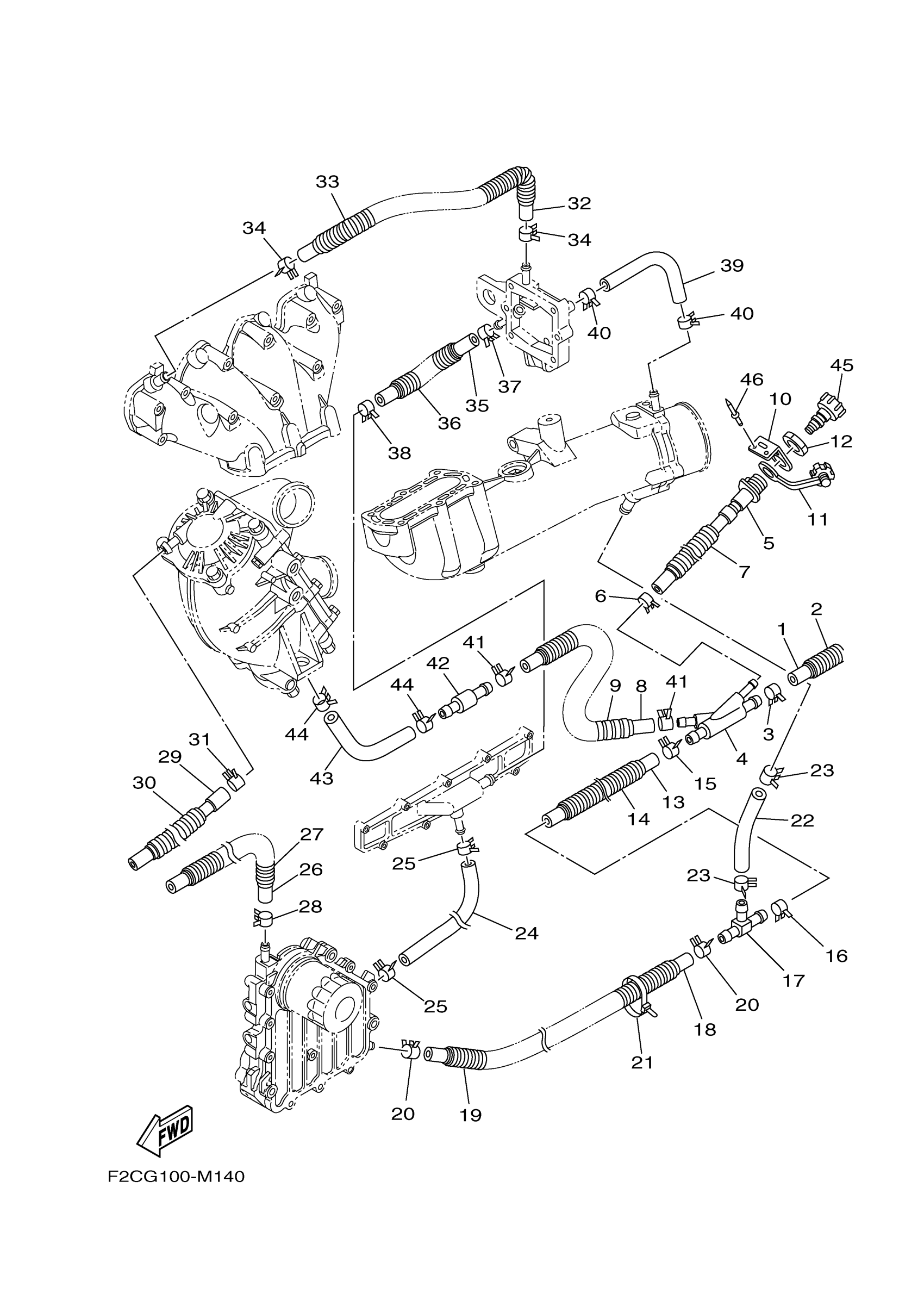

Yamaha GX1800M (FZR) F2RD 2013 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L285)

90445-21813-00

$3.64

2

TUBE

F2T-U773D-20-00

Unavailable

3

CLIP

90467-200A3-00

$5.92

4

JOINT, HOSE 1

6CS-12581-00-00

$32.99

5

JOINT ASSY

63M-12580-00-00

$99.98

6

CLIP

90467-150A5-00

$2.64

7

TUBE (L485)

90447-19801-00

$3.56

8

HOSE (L970)

90445-21807-00

$14.38

9

TUBE (L850)

90447-22802-00

$4.09

10

STAY

60E-12443-00-00

$2.95

11

CAP,1

682-84385-01-00

$9.08

12

NUT

EU0-61652-00-00

$11.48

13

HOSE 2

6S5-1243E-01-00

$22.11

14

TUBE

F2T-U773D-00-00

$1.36

15

CLIP

90467-200A3-00

$5.92

16

CLIP

90467-200A3-00

$5.92

17

JOINT, HOSE 3

6BH-12584-00-00

$4.44

18

HOSE (L400)

90445-18012-00

$24.98

19

TUBE (L260)

90447-19005-00

$3.64

20

CLIP

90467-160A0-00

$2.95

21

CLAMP(3XW)

90464-35132-00

Unavailable

22

HOSE 6

6S5-12589-01-00

Unavailable

23

CLIP

90467-200A3-00

$5.92

24

HOSE 5

6BH-1244H-00-00

$20.99

25

. CLIP

90467-150A1-00

$3.33

26

HOSE 5

6S5-12588-00-00

$16.22

27

HOSE, WITH SPRING (L=630)

90447-19006-00

$6.39

28

CLIP

90467-160A0-00

$2.95

29

HOSE 8

6S5-12552-00-00

$22.71

30

HOSE (L420)

90446-24M89-00

$9.08

31

CLIP

90467-170A4-00

$2.04

32

HOSE 2

6S5-12577-00-00

$15.89

33

HOSE(63M)

90446-27M55-00

Unavailable

34

CLIP

90467-160A0-00

$2.95

35

HOSE 4

6S5-12579-00-00

$14.44

36

TUBE (L150)

90447-19011-00

$2.73

37

CLIP

90467-160A0-00

$2.95

38

CLIP

90467-170A5-00

$4.55

39

HOSE (L220)

90445-16013-00

$11.35

40

CLIP

90467-160A0-00

$2.95

41

CLIP

90467-200A3-00

$5.92

42

JOINT, HOSE 4

6S5-12594-00-00

$4.55

43

HOSE 1

6S5-12576-01-00

$22.49

44

CLIP

90467-200A3-00

$5.92

45

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

46

RIVET (EU0)

90267-48938-00

$5.00
