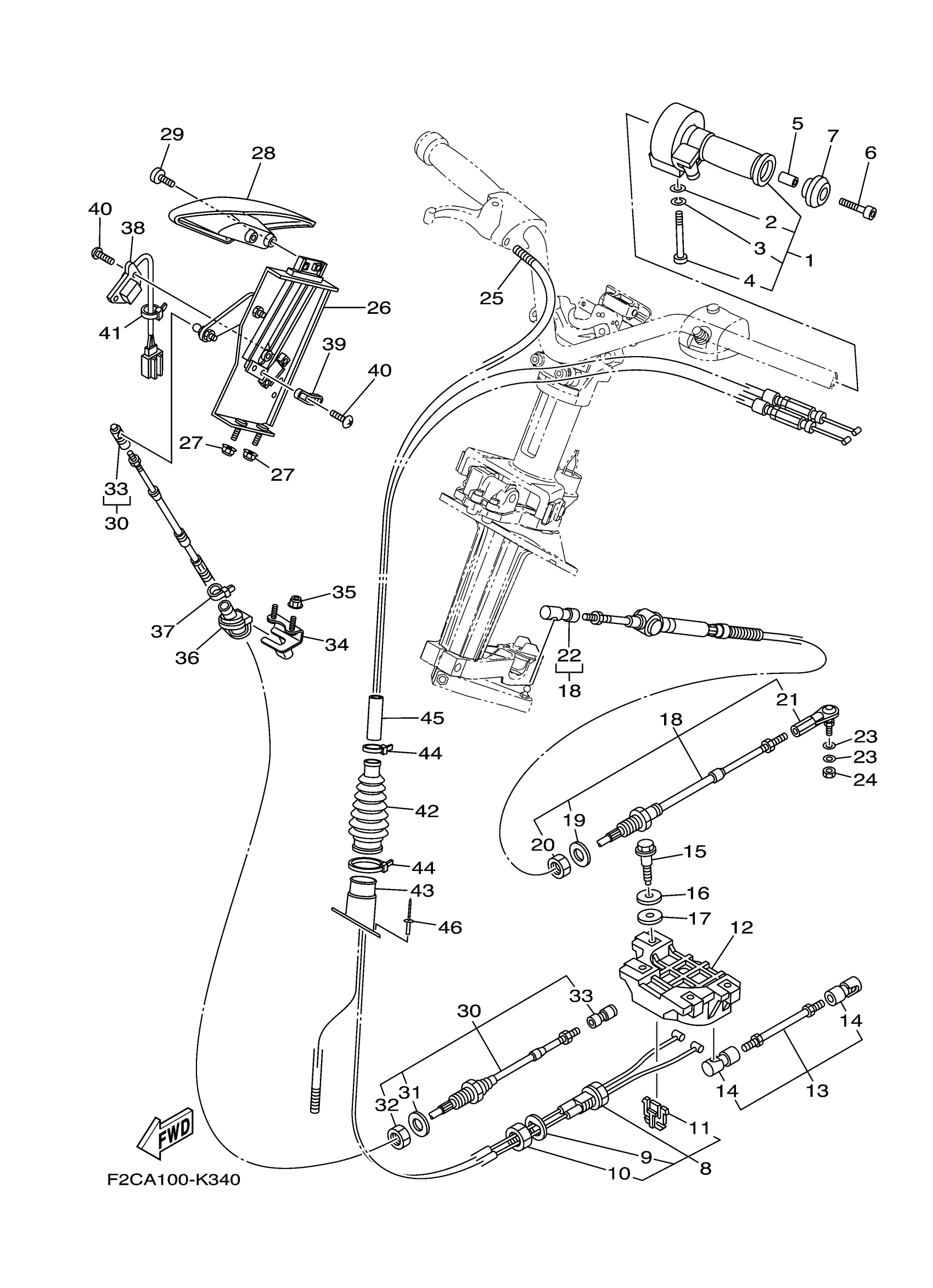

Yamaha GX1800M (FZR) F2RD 2013 CONTROL CABLE Diagram

#

Description
Price

1

NOZZLE,CONTROL ASSY

F1W-6153A-00-00

$213.62

2

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

3

WASHER, SPRING

92995-06100-00

$2.95

4

SCREW

F1W-613C1-10-00

$10.49

5

COLLAR

90387-05800-00

$3.86

6

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

7

GRIP, END

GP7-U155F-00-00

$2.88

8

CABLE,NOZZLE CONTROL 3

F2C-6153E-00-00

$687.86

9

. PACKING C

F1W-61438-00-00

$5.00

10

NUT

F1B-6151S-01-00

$14.31

11

. GUIDE, CABLE

F1W-61557-00-00

$6.36

12

REMOCON,NOZZLE 2

F1W-6153J-01-00

Unavailable

13

ROD ASSY

F1W-6150A-00-00

$181.80

14

. BALL JOINT ASSY

F1B-61460-00-00

$50.99

15

BOLT

90109-06233-00

$124.23

16

WASHER, PLATE

90201-099U3-00

$2.16

17

WASHER, PLATE

90202-08002-00

$2.07

18

CABLE, STEERING

F2C-61481-12-00

Unavailable

19

. PACKING C

F1B-61438-00-00

$2.72

20

NUT

F1B-6151S-01-00

$14.31

21

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

22

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

23

WASHER, PLATE

90201-06906-00

$2.80

24

NUT

9538R-06700-00

$1.01

25

HOSE, WITH SPRING

90447-07001-00

Unavailable

26

REMOCON. LEVER ASSY.

F2C-U134A-03-00

$195.44

27

NUT, LOCK

F2N-U142L-00-00

$1.00

28

GRIP

F2C-U2714-00-00

$8.32

29

SCREW, BINDING

90154-06016-00

Unavailable

30

CABLE,REVERSE

F2C-6149C-12-00

Unavailable

31

. PACKING C

F1B-61438-00-00

$2.72

32

NUT

F1B-6151S-01-00

$14.31

33

. BALL JOINT ASSY

F2C-61460-00-00

$46.49

34

BRACKET,STOPPER CABLE

F2C-U1467-01-00

$16.65

35

NUT, LOCK

F2N-U142L-00-00

$1.00

36

PACKING, CABLE

F2C-U146G-01-00

$4.77

37

CLAMP

90465-10098-00

$1.68

38

REVERSE SENSOR ASSY

F1W-6830K-01-00

Unavailable

39

MAGNET

F2C-6838C-00-00

$106.05

40

SCREW, ROUND HEAD

90150-05807-00

$0.79

41

CLAMP

90465-10098-00

$1.68

42

GROMMET

F2C-U822E-01-00

$6.82

43

COLLAR, PLASTIC

F2C-U1465-00-00

$4.39

44

CLAMP(JN6)

90464-40825-00

Unavailable

45

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

46

RIVET, BLIND

90267-48806-00

$2.00
