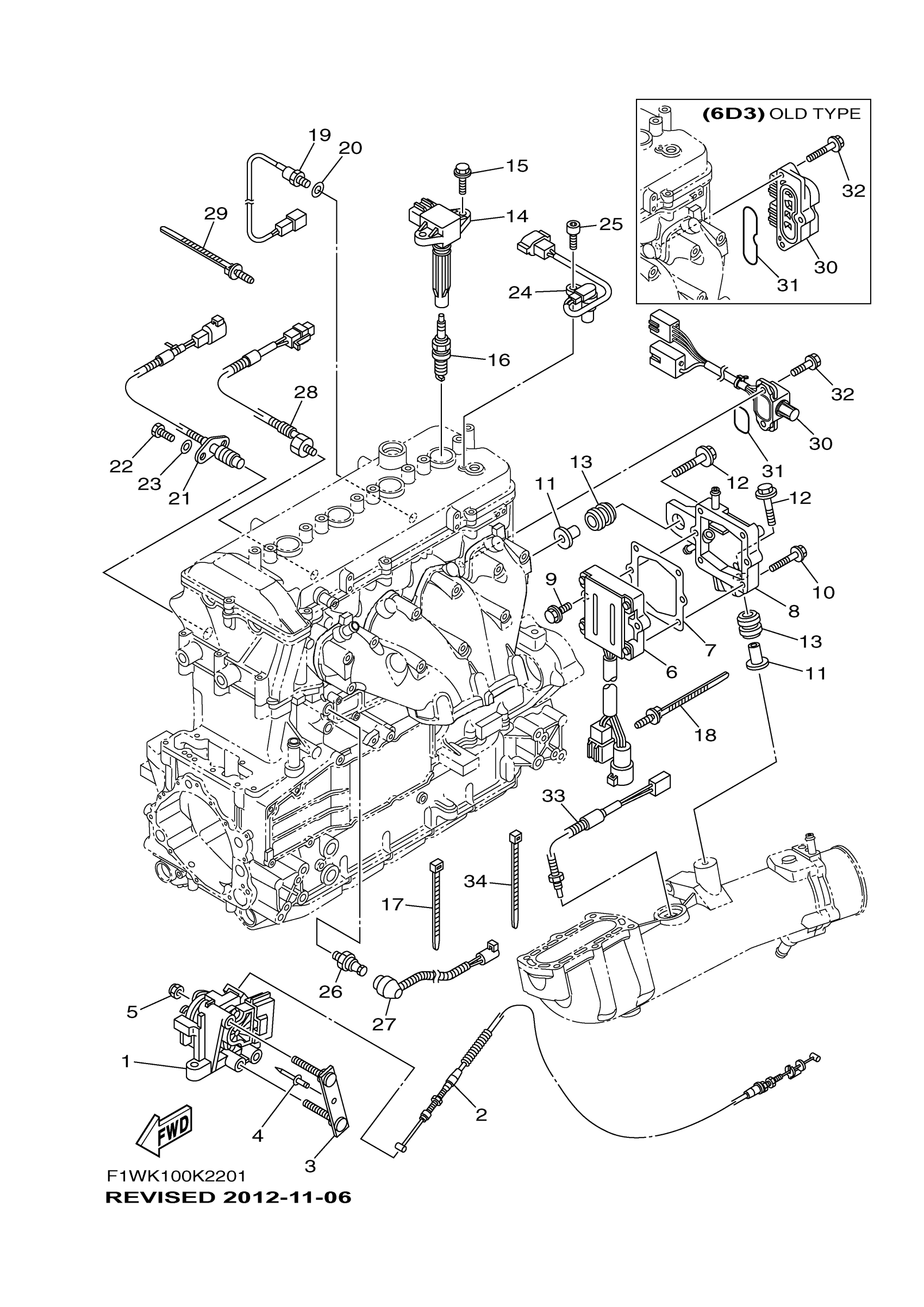

Yamaha GX1800L (FZR) F2RA 2012 ELECTRICAL 2 Diagram

#

Description
Price

1

ACCEL. POSITON SENSOR ASSY

6D3-14305-21-00

$443.92

2

CABLE, THROTTLE 1

6AN-26311-00-00

$89.38

3

BRACKET, THROTTLE

F1W-U7254-00-00

Unavailable

3

BRACKET, THROTTLE

F2N-U7254-00-00

$11.35

4

RIVET (EU0)

90267-48938-00

$5.00

5

NUT, NYLON (6J8)

95780-08300-00

$10.55

6

RECTIFIER & REGULATOR ASSY

6S5-81960-01-00

Unavailable

7

PLATE, RECTIFIER FITTING

6S5-81975-00-00

$11.99

8

COVER, RECTIFIER

6S5-81972-01-94

$148.47

9

BOLT, WITH WASHER

90119-06MA3-00

$2.80

10

BOLT, WITH WASHER

90119-06048-00

$2.27

11

COLLAR

90387-08M37-00

$9.81

12

BOLT, WITH WASHER

90119-08187-00

$3.17

13

GROMMET

90480-22M15-00

$10.18

14

IGNITION COIL ASSY

6S5-82310-10-00

$263.06

15

BOLT,FLANGE (EW2)

90105-06903-00

Unavailable

16

PLUG, SPARK (NGK LFR6A-00)

LFR-6A000-00-00

$7.43

17

CLAMP

90465-13M18-00

$1.71

18

CLAMP

90464-20005-00

$2.11

19

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

20

WASHER, PLATE

92990-10600-00

$2.57

21

THERMO SWITCH ASSY

60E-82560-01-00

$104.53

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

SENSOR, CAM POSITION

6D3-85896-01-00

Unavailable

25

BOLT,SOCKET

91380-06016-00

Unavailable

26

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

27

LEAD WIRE ASSY

6S5-81315-01-00

$51.50

28

SENSOR, KNOCK

6AN-85780-01-00

$255.95

29

CLAMP

90464-20005-00

$2.11

30

EARTH PLATE COMP.

6CS-8273J-11-00

$180.29

30

EARTH PLATE COMP.

6D3-8273J-02-00

Unavailable

31

O-RING (341)

93210-32172-00

Unavailable

31

O-RING

93210-60ME8-00

$9.99

32

BOLT, WITH WASHER

90119-06048-00

$2.27

32

BOLT, WITH WASHER

90119-06MA3-00

$2.80

33

THERMOSENSOR ASSY

6AA-85790-00-00

$104.60

34

CLAMP

90464-20005-00

$2.11
