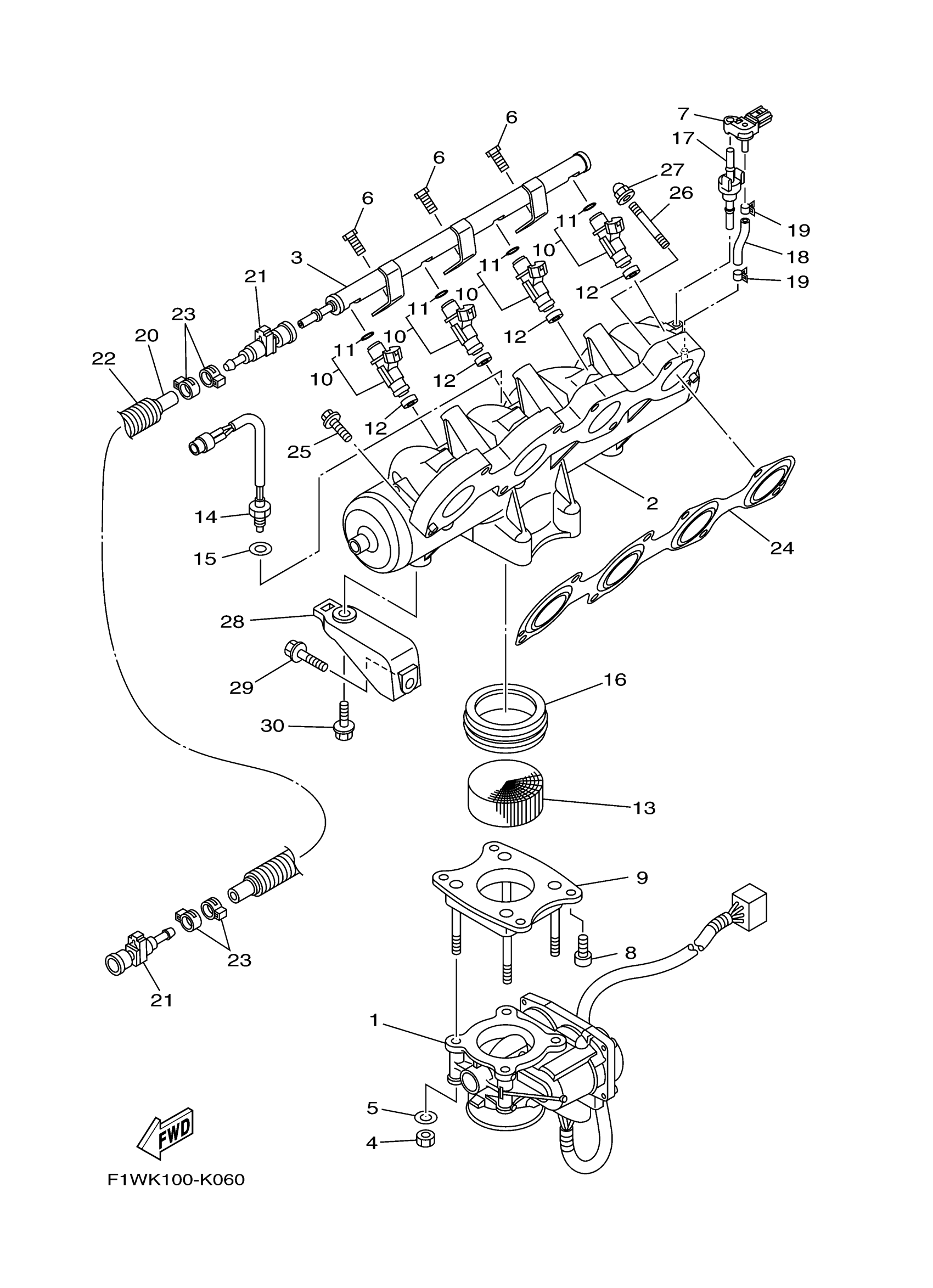

Yamaha GX1800K (FZR) F2R7 2011 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6S5-13750-12-00

Unavailable

2

MANIFOLD 1

6S5-13641-10-00

$965.14

3

DELIVERY PIPE

6S5-12880-00-00

Unavailable

4

NUT

6P2-13588-00-00

$19.71

5

WASHER

6P2-13578-00-00

$6.57

6

. BOLT

63P-14446-00-00

$9.27

7

. SENSOR, PRESSURE

6BH-82380-00-00

$278.77

8

BOLT

6S5-14496-00-00

$12.86

9

THROTTLE DAMPER ASSY

6S5-14360-12-00

Unavailable

10

INJECTOR

6S5-13761-00-00

$199.98

11

.. O-RING

60E-14147-00-00

$7.27

12

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

13

RIBBON

6D3-1444B-01-00

Unavailable

14

SENSOR, AIR TEMPERATURE

6S5-85886-00-00

$156.05

15

. WASHER

6S5-14285-00-00

$2.19

16

SEAL

6D3-14457-00-00

$56.05

17

GROMMET

6BH-14445-00-00

$20.99

18

HOSE

5PS-14987-00-00

Unavailable

19

CLIP

6S5-14159-01-00

Unavailable

20

HOSE

6AN-14294-02-00

$151.50

21

FUEL PIPE JOINT

6S5-24300-01-00

$30.29

22

TUBE (L495)

90447-19017-00

$7.27

23

HOSE CLAMP ASSY

90450-17M17-00

$7.40

24

. GASKET, MANIFOLD 1

6BH-13645-00-00

$15.55

25

BOLT, WITH WASHER

90119-08022-00

$3.41

26

BOLT, STUD

90116-08032-00

$3.33

27

NUT, CROWN(4BR)

90176-08080-00

Unavailable

28

STAY

6S5-14413-00-00

Unavailable

29

BOLT, WITH WASHER

90119-08043-00

$4.55

30

BOLT, WITH WASHER

90119-08099-00

$5.00
