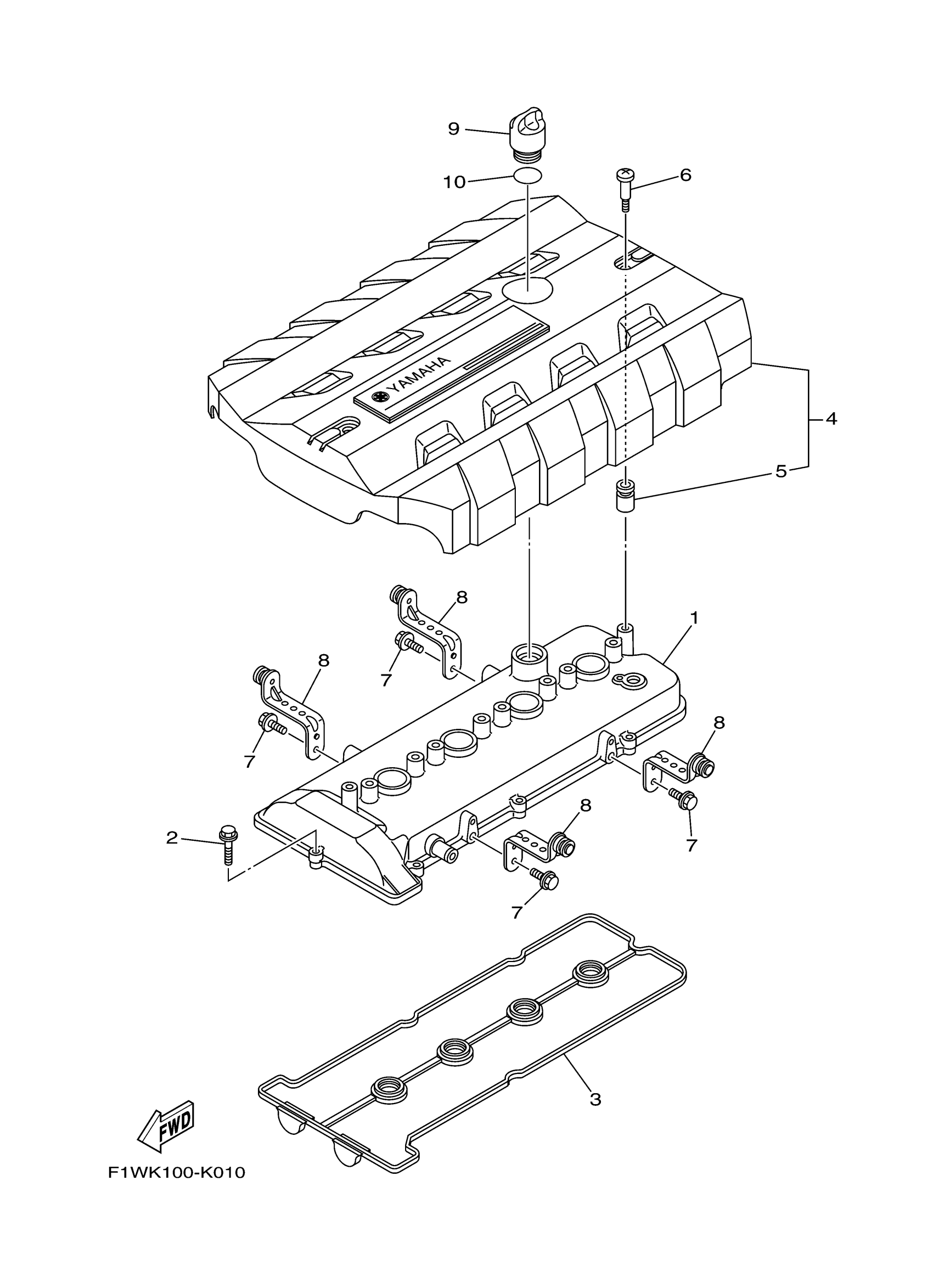

Yamaha GX1800K (FZR) F2R7 2011 CYLINDER 1 Diagram

#

Description
Price

1

COVER, CYLINDER HEAD 1

6S5-11191-01-00

Unavailable

2

BOLT, FLANGE

90105-06028-00

$2.80

3

. GASKET, HEAD COVER 1

6BH-11193-00-00

$36.85

4

COVER ASSY 1

6S5-E110M-01-00

$86.55

5

. GROMMET, ANODE

6S5-E1328-00-00

$1.72

6

BOLT, COVER MOUNTING

6S5-E118E-02-00

$1.43

7

BOLT, FLANGE

95814-06012-00

$2.13

8

STAY

6S5-11941-11-00

Unavailable

9

PLUG, OIL

6S5-15363-00-00

$15.66

10

O-RING (437)

93210-24235-00

$5.34
