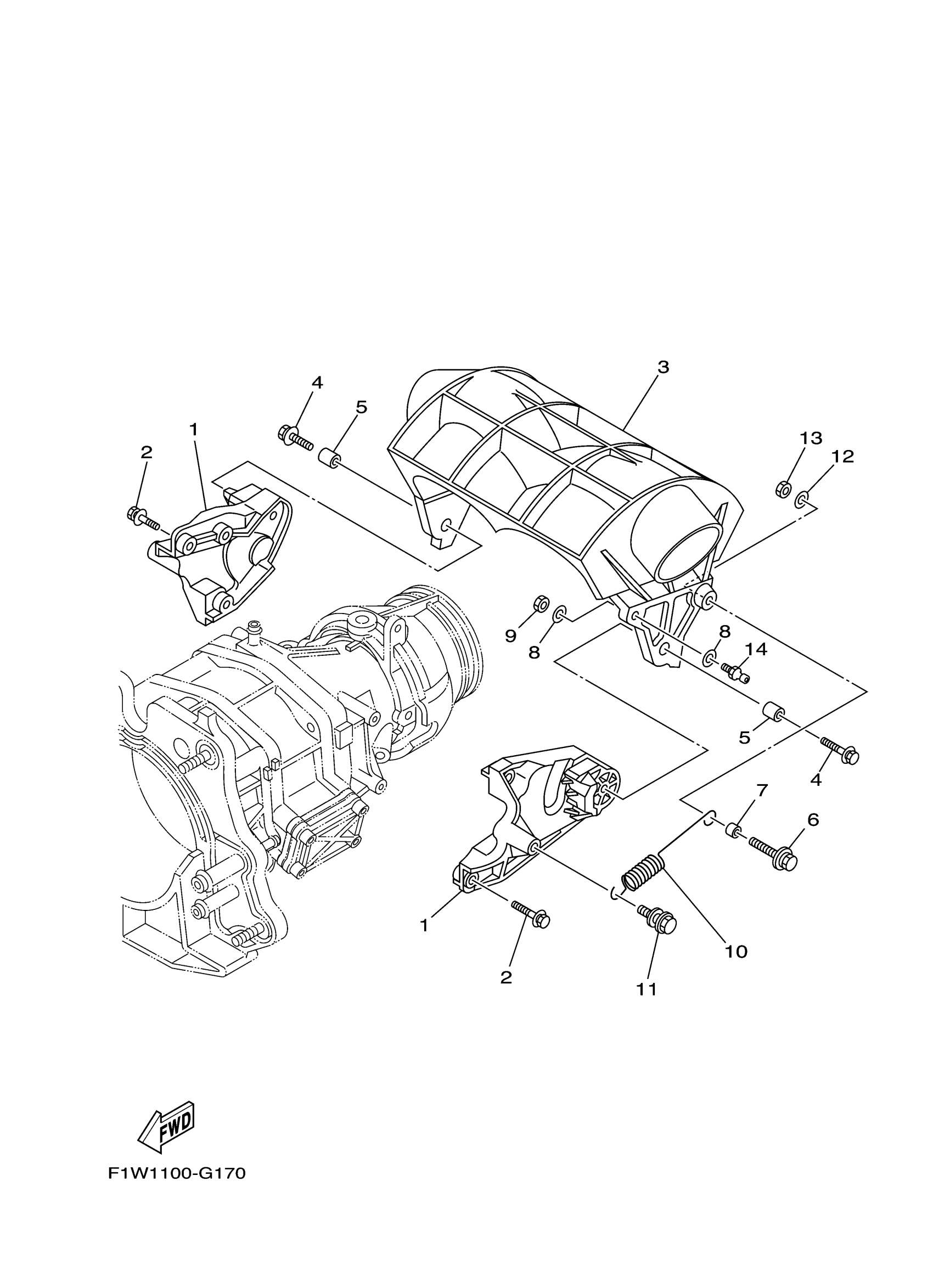

Yamaha GX1800J (FZR) F2R4 2010 JET UNIT 3 Diagram

#

Description

Price

1

BRACKET 1

6S5-51341-00-94

$69.49

2

BOLT, WITH WASHER

90119-06892-00

$3.79

3

GATE, REVERSE

6S5-R1314-02-00

$43.92

4

BOLT,WITH WASHER

90119-08854-00

Unavailable

5

COLLAR

90387-08M30-00

$7.40

6

BOLT, WITH WASHER

90119-069UX-00

$2.66

7

COLLAR(6R8)

90387-06M30-00

Unavailable

8

WASHER, PLATE

90201-06020-00

$5.86

9

NUT

9538R-06600-00

$0.79

10

SPRING, RETAINER

6S5-R2358-00-00

$2.26

11

BOLT, FLANGE W/WASHER

6S5-45241-A0-00

Unavailable

12

WASHER, PLATE

90201-06020-00

$5.86

13

NUT

9538R-06600-00

$0.79

14

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27
