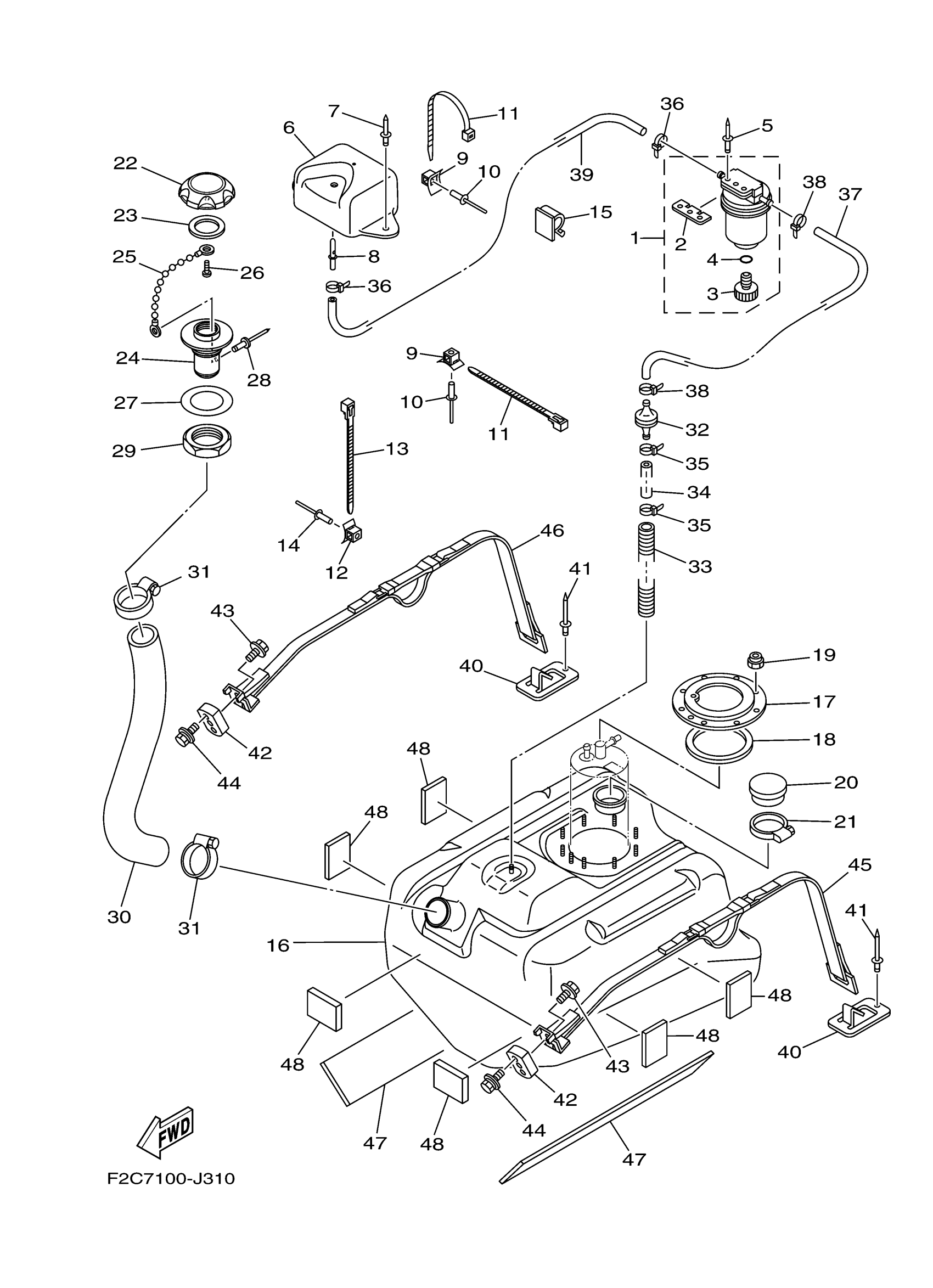

Yamaha GX1800J (FZR) F2R4 2010 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$52.14

2

. PLATE, FILTER

EW2-62142-00-00

$44.76

3

. PLUG, DRAIN

70R-24543-00-00

$8.94

4

. O-RING

70R-24489-00-00

$4.93

5

RIVET, BLIND

90267-489U2-00

$1.51

6

SOCKET, VENTILATION

F1W-U2159-00-00

$8.94

7

RIVET, BLIND

90267-489U6-00

Unavailable

8

PIPE, VENTILATION

F1G-62149-00-00

$11.18

9

BASE, CLAMP

F1W-U828M-00-00

$1.29

10

RIVET, BLIND

90267-489U6-00

Unavailable

11

CLAMP

90464-32801-00

$1.29

12

BASE, CLAMP

F1W-U828M-00-00

$1.29

13

CLAMP

90464-32801-00

$1.29

14

RIVET, BLIND

90267-489U6-00

Unavailable

15

CLAMP

90464-17800-00

$3.28

16

TANK, FUEL

F1W-U7711-03-00

Unavailable

17

RING

F1B-U7773-00-00

$22.25

18

PACKING, SEAL

F1B-67747-00-00

$17.09

19

NUT, NYLON

9572R-06300-00

$2.93

20

COVER

FN8-6771K-00-00

$15.66

21

BAND, HOSE 62

90601-162U5-00

$6.46

22

CAP, FUEL FILLER

F2N-U7831-10-00

$22.25

23

PACKING

GP7-U7832-01-00

$5.62

24

SOCKET

GP7-U7833-11-00

$11.48

25

CHAIN BALL

GP7-U7835-00-00

$4.72

26

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.29

27

PACKING FUEL FILLER

GP7-U7834-10-00

$5.45

28

RIVET, BLIND

90267-329UR-00

$1.23

29

NUT, FUEL FILLER

GP7-U783F-00-00

$4.96

30

HOSE

F2C-U7844-00-00

$43.27

31

BAND, HOSE 55

90601-155U4-00

$6.17

32

CHECK VALVE

EU0-67767-31-00

$30.97

33

TUBE

90447-22804-00

Unavailable

34

HOSE, AIR VENT 3

F2C-U785H-00-00

Unavailable

35

CLAMP

90465-10098-00

$2.24

36

CLAMP

90465-10098-00

$2.24

37

HOSE, AIR VENT

F2C-U785G-00-00

$6.19

38

CLAMP

90465-10098-00

$2.24

39

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

40

HOOK A

F1K-U5772-03-00

Unavailable

41

RIVET (EU0)

90267-48938-00

$4.72

42

NUT, SPECIAL

F1X-U2873-00-00

$11.93

43

BOLT, WITH WASHER

90119-08800-00

$4.31

44

BOLT, WITH WASHER

90119-06830-00

Unavailable

45

BELT, TANK 1

F2C-67743-00-00

$98.49

46

BELT, TANK 1

F2C-67743-11-00

Unavailable

47

MAT 1

F1W-U759B-00-00

$83.57

48

MAT 2

F1W-U759C-01-00

$2.46
