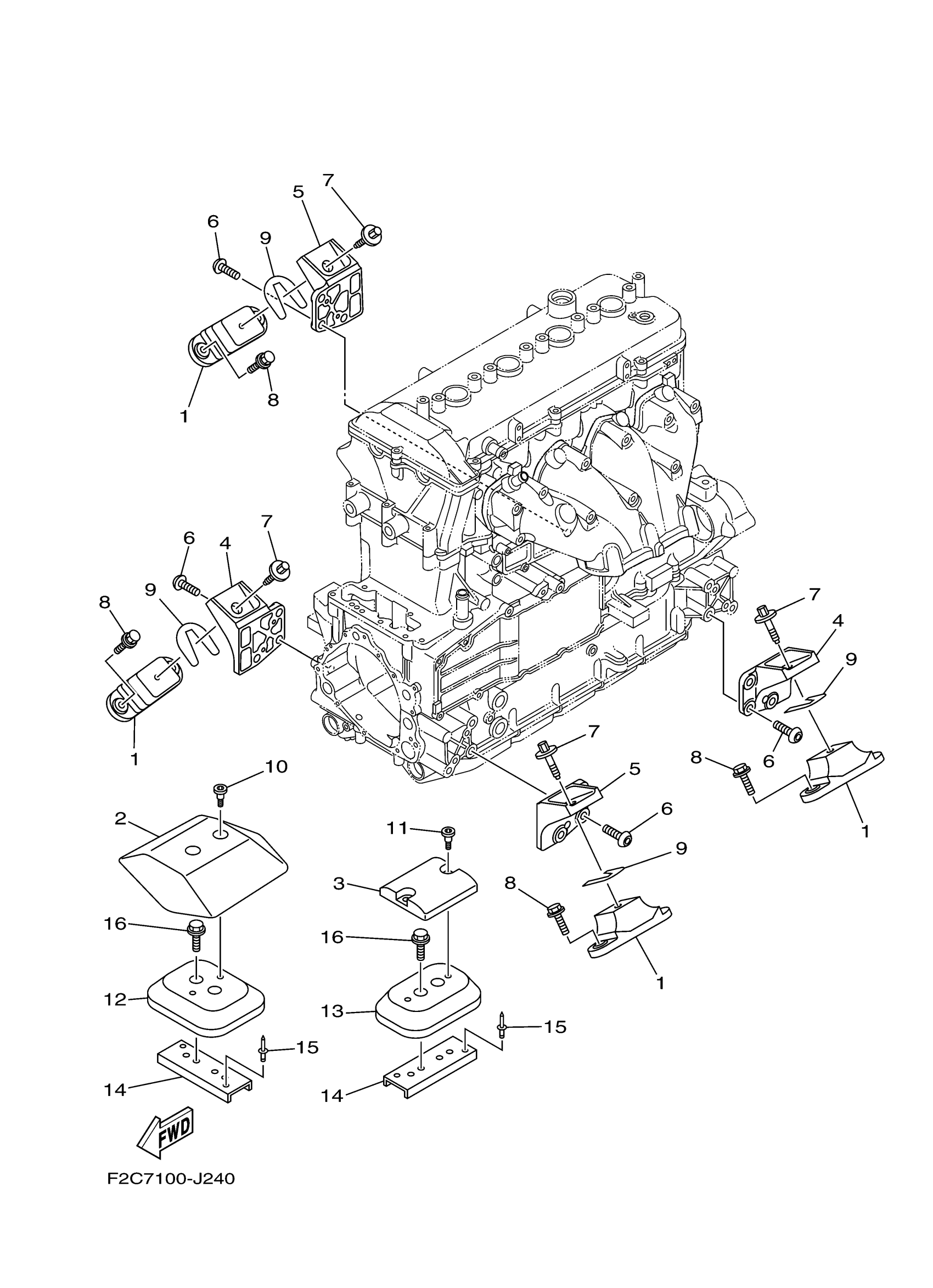

Yamaha GX1800J (FZR) F2R4 2010 ENGINE MOUNT Diagram

#

Description
Price

1

MOUNT RUBBER

67X-44517-10-00

$96.21

2

STOPPER, UPPER MOUNT

6BH-G4532-00-00

$41.16

3

STOPPER, LOWER MOUNT RUBBER

6BH-G4574-00-00

$11.01

4

BRACKET 1

6S5-41661-00-94

$182.34

5

BRACKET 2

6S5-41662-00-94

$182.34

6

SCREW

90149-10052-00

$6.40

7

BOLT, WITH WASHER

90119-08860-00

$4.09

8

BOLT, WITH WASHER

90119-08829-00

$4.09

9

SHIM (T=0.1)

EU0-67354-A0-00

Unavailable

9

SHIM (T=0.3)

EU0-67354-B0-00

$5.12

9

SHIM (T=0.5)

EU0-67354-C0-00

$4.27

9

SHIM (T=1.0)

EU0-67354-D0-00

$3.84

9

SHIM (T=2.0)

EU0-67354-E0-00

$3.84

10

BOLT

90109-06874-00

$3.09

11

BOLT

90109-06875-00

$3.24

12

SPACER,ENGINE MOUNT

F2C-U721B-00-00

$51.46

13

SPACER,ENGINE MOUNT

F2C-U721B-10-00

$51.46

14

PLATE

F2N-U732B-10-00

$6.03

15

RIVET, BLIND

90267-489U2-00

$1.51

16

BOLT, WITH WASHER

90119-06892-00

$4.01
